Description

Price

10

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

10a

RH Organic Brake Pad Kit

705601014

$42.49

10b

Pin Set

705601016

$9.26

10c

Bleeding Screw

705601017

$6.35

10d

Retaining Spring

705601018

$7.55

20

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

20a

Pin Set

705601016

$9.26

20b

Bleeding Screw

705601017

$6.35

20c

Retaining Spring

705601018

$7.55

20d

LH Organic Brake Pad Kit

705601015

$42.49

30

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

30a

Lever Set

705601013

$63.99

30b

Clamp And Screw Kit

507032477

$23.99

30c

Cap Set

219800096

$21.99

35

RH Front Hose

705601521

$45.49

40a

LH RH Front Hose

705601519

$174.99

40b

LH Front Hose

705601520

$45.49

45

Brake Handle Line | Includes 17 to 18

705600967

$48.49

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

55

Banjo Bolt

705600958

$6.35

60

Copper Washer

705601628

$4.44

65

Bleeding Screw

705601051

$12.16

80

Outlet Hose, Master Cylinder

705601518

$69.99

85

Brake Line Ass'y

705601002

$38.99

85

RH Brake Line | Includes 24 to 25

705601005

$46.49

90

Inlet Hose, Master Cylinder

705600973

$63.49

95

Tubing 10 MM 1000MM Long

219704407

$2.79

100

Rear Master Cylinder | Includes 21 to 23

705601273

$269.99

100

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

100a

Oil Tank

705601020

$39.99

100b

Oil Housing Hose

705601019

$15.87

105

Grommet

414036300

$2.79

110

Bushing

293900112

$10.06

115

Hex.Flange Screw M5 X 20

207652044

$1.90

120

Flat Washer

224060201

$1.26

125

Hex. Flange Elastic Nut M5

233251414

$1.04

130

Splitter

705600994

$153.49

135

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

138

Tie-Rap 180 mm

414115200

$0.11

139

Hex. Flange Screw M6 X 10

210261040

$1.48

140

Pop Rivet 3/16"

390406500

$0.88

150a

Brake Switch

705601250

$59.49

150b

Brake Switch

705601251

$51.99

175

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

175a

Pin Set

705601016

$9.26

175b

Bleeding Screw

705601017

$6.35

175c

Retaining Spring

705601018

$7.55

175d

RH Organic Brake Pad Kit

705601014

$42.49

180

Hex. Flange Screw M10 X 20

207502046

$2.11

250

Deep Black, Brake Pedal

705602163

$154.99

260

Brake Pedal Spring

705600792

$9.10

265

Hex. Flange Screw M6 X 20

207662044

$2.00

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

300

O-Ring

293300144

$3.82

350

Shoulder Screw M10

250000513

$6.77

351

Hex. Flange Elastic Nut M10

233201436

$2.11

360

Hex. Flange Screw M8 X 55

207685544

$5.39

370

Hex. Flange Elastic Nut M8

233281414

$1.47

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

380

Disc Brake

705600999

$67.99

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

400

Disc Brake

705600999

$67.99

440

Hex. Flange Screw M10 X 25

207502546

$2.11

470

Hex. Flange Screw M6 X 20

207662044

$2.00

475

Flat Washer 6 mm

234062410

$0.77

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

500

Brake Pedal Bracket

705202000

$38.99

501

Carriage Bolt, M8 X 20

207782044

$1.90

502

Hex. Flange Elastic Nut M8

233281414

$1.47

510

Hose Guard

705601893

$4.55

511

Torx Screw M5 X 20

250000724

$1.69

512

Washer M5

250200025

$0.74

513

Panel Nut M5 X 0.8

250000958

$4.23

514

LH Hose Bracket

705601048

$4.55

515

RH Hose Bracket

705601049

$4.55

520

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

521

Torx Screw M5 X 20

250000792

$2.11

522

Washer M5

250200025

$0.74

523

Elastic Flange Nut M5

233251494

$2.11

524

Torx Screw M6 X 16

250000755

$0.87

530

Front Hose Bracket

705600983

$13.71

535

Panel Nut M6 X 1.0

250100198

$2.11

536

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

537

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

550

Clamp

293650219

$0.90

560

Clamp

293650220

$0.90

565

Tie Rap, 533 mm

293750047

$2.09

570

Tie Wrap 368 mm

293750008

$1.04

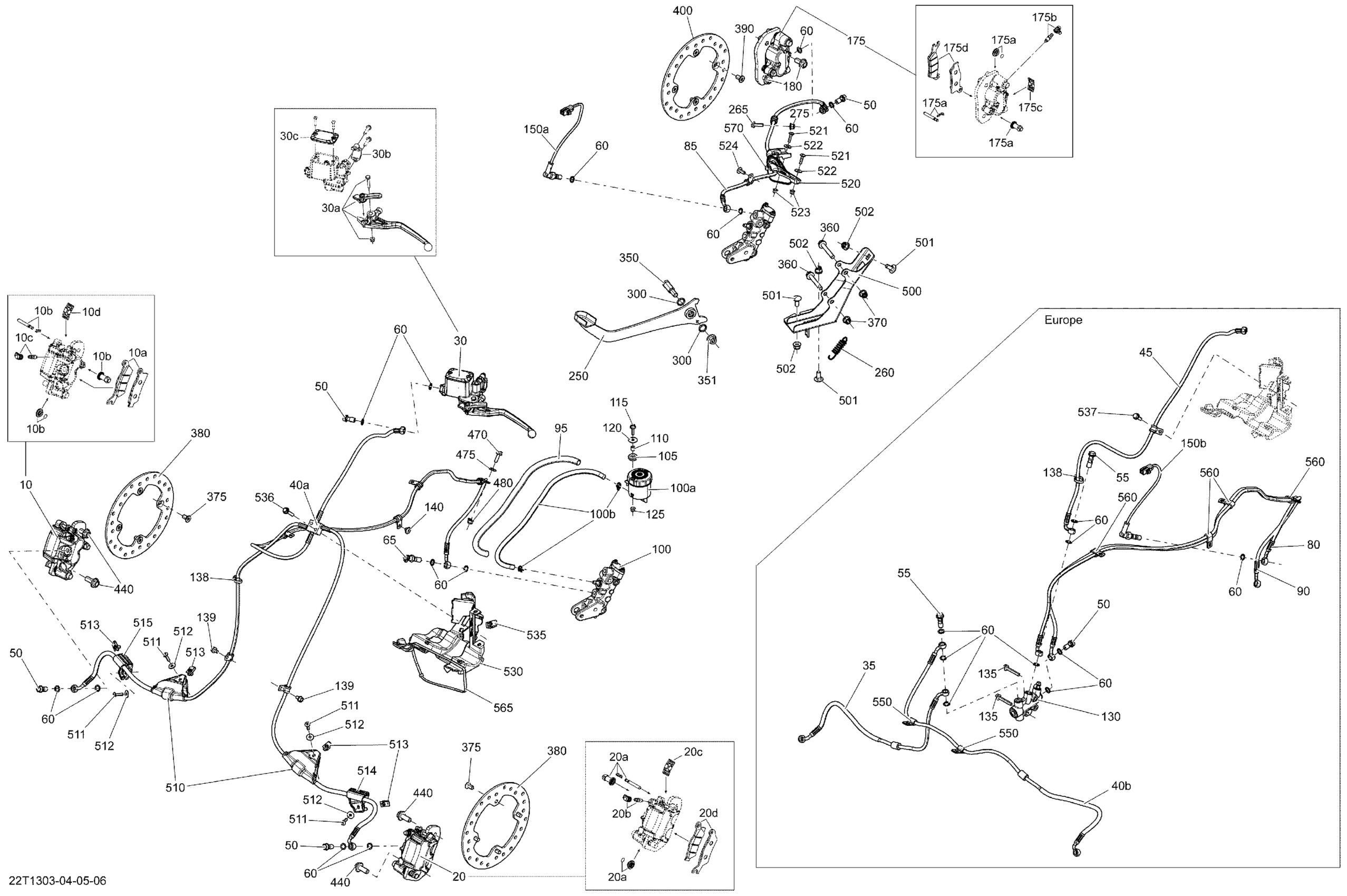

Can-Am Outlander 800R EFI, STD, DPS, XT & XT-P, 2013 06- Brakes Diagram

RH Front Caliper Ass'y | Includes 1 to 5

RH Organic Brake Pad Kit

Pin Set

Bleeding Screw

Retaining Spring

LH Front Caliper Ass'y | Includes 6 to 10

Pin Set

Bleeding Screw

Retaining Spring

LH Organic Brake Pad Kit

LH Front Master Cylinder | Includes 11 to 14

Lever Set

Clamp And Screw Kit

Cap Set

RH Front Hose

LH RH Front Hose

LH Front Hose

Brake Handle Line | Includes 17 to 18

Banjo Bolt (M10 x 1.25 thread)

Banjo Bolt

Copper Washer

Bleeding Screw

Outlet Hose, Master Cylinder

Brake Line Ass'y

RH Brake Line | Includes 24 to 25

Inlet Hose, Master Cylinder

Tubing 10 MM 1000MM Long

Rear Master Cylinder | Includes 21 to 23

Rear Master Cylinder Ass'y | Includes 28 to 30

Oil Tank

Oil Housing Hose

Grommet

Bushing

Hex.Flange Screw M5 X 20

Flat Washer

Hex. Flange Elastic Nut M5

Splitter

HEX. SCREW M6 X 40 - Call your local BRP dealership

Tie-Rap 180 mm

Hex. Flange Screw M6 X 10

Pop Rivet 3/16"

Brake Switch

Brake Switch

RH Rear Brake Caliper | Includes 41 to 45

Pin Set

Bleeding Screw

Retaining Spring

RH Organic Brake Pad Kit

Hex. Flange Screw M10 X 20

Deep Black, Brake Pedal

Brake Pedal Spring

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

O-Ring

Shoulder Screw M10

Hex. Flange Elastic Nut M10

Hex. Flange Screw M8 X 55

Hex. Flange Elastic Nut M8

Torx Screw M8 X 16, Scotch Grip

Disc Brake

Torx Screw M8 X 16, Scotch Grip

Disc Brake

Hex. Flange Screw M10 X 25

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Hex. Flange Elastic Nut M6 x 1.0

Brake Pedal Bracket

Carriage Bolt, M8 X 20

Hex. Flange Elastic Nut M8

Hose Guard

Torx Screw M5 X 20

Washer M5

Panel Nut M5 X 0.8

LH Hose Bracket

RH Hose Bracket

REAR HOSE PROTECTOR - Call your local BRP dealership

Torx Screw M5 X 20

Washer M5

Elastic Flange Nut M5
