Description

Price

10

Gasket

707600317

$11.60

20

Hex. Flange Nut M8

233081416

$1.15

30

Front Head Pipe

707600764

$142.99

35

Spring

415107100

$6.35

40

Rear Head Pipe

707601446

$206.49

45

Pipe Gasket

707601544

$19.49

50

Norma Gear Clamp

293650177

$10.49

60

Pipe Protector

707600932

$15.81

70

Flat Washer

250200082

$0.42

80

Hex. Flange Screw M6 X 12

250000574

$2.11

100

Heat Shield

707603724

$13.99

110

Panel Nut M6 X 1.0

250100198

$2.11

120

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

130

Flat Washer 6 mm

234062410

$0.77

140

Heat Deflector

707600710

$42.99

145

Stainless Steel Flat Washer

234062670

$2.11

150

Torx Screw M6 X 16

250000223

$2.11

155

Stainless Torx Screw M6 X 30

250000634

$2.09

160

Muffler Cap

707600711

Unavailable

170a

Exhaust Muffler | Includes 19a to 19f

703501071

$572.49

170a

MUFFLER_EXHAUST - Call your local BRP dealership | Europe, Includes 19a to 19f

707600799

Unavailable

170b

Spark Arrestor

707601803

$49.99

170c

Socket Head Screw M6 X 20

205062060

$2.32

170d

Gasket

707601799

$5.99

170e

Muffler End Piece

715900143

$35.99

170f

Support

715900147

$3.29

180

Vibration Damper

707603323

$11.65

185

Rubber

707600448

$7.90

190

Bushing

293900106

$4.55

200

Hex. Flange Screw M6 X 25

207662534

$2.11

205

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

210

Washer

503032900

$3.28

220

Hex. Flange Screw M8 X 35

207683534

$2.11

230

Hex. Flange Nut M8

233081416

$1.15

240

Protector Kit

703500816

$26.99

241

Grommet

709000582

$4.69

242

Bushing

293900105

$7.65

243

Flat Washer

224060201

$1.26

310

HEAT DEFLECTOR - Call your local BRP dealership

707600983

Unavailable

350

Not Available As Spare Parts

XXX

Unavailable

360

Not Available As Spare Parts

XXX

Unavailable

370

Not Available As Spare Parts

XXX

Unavailable

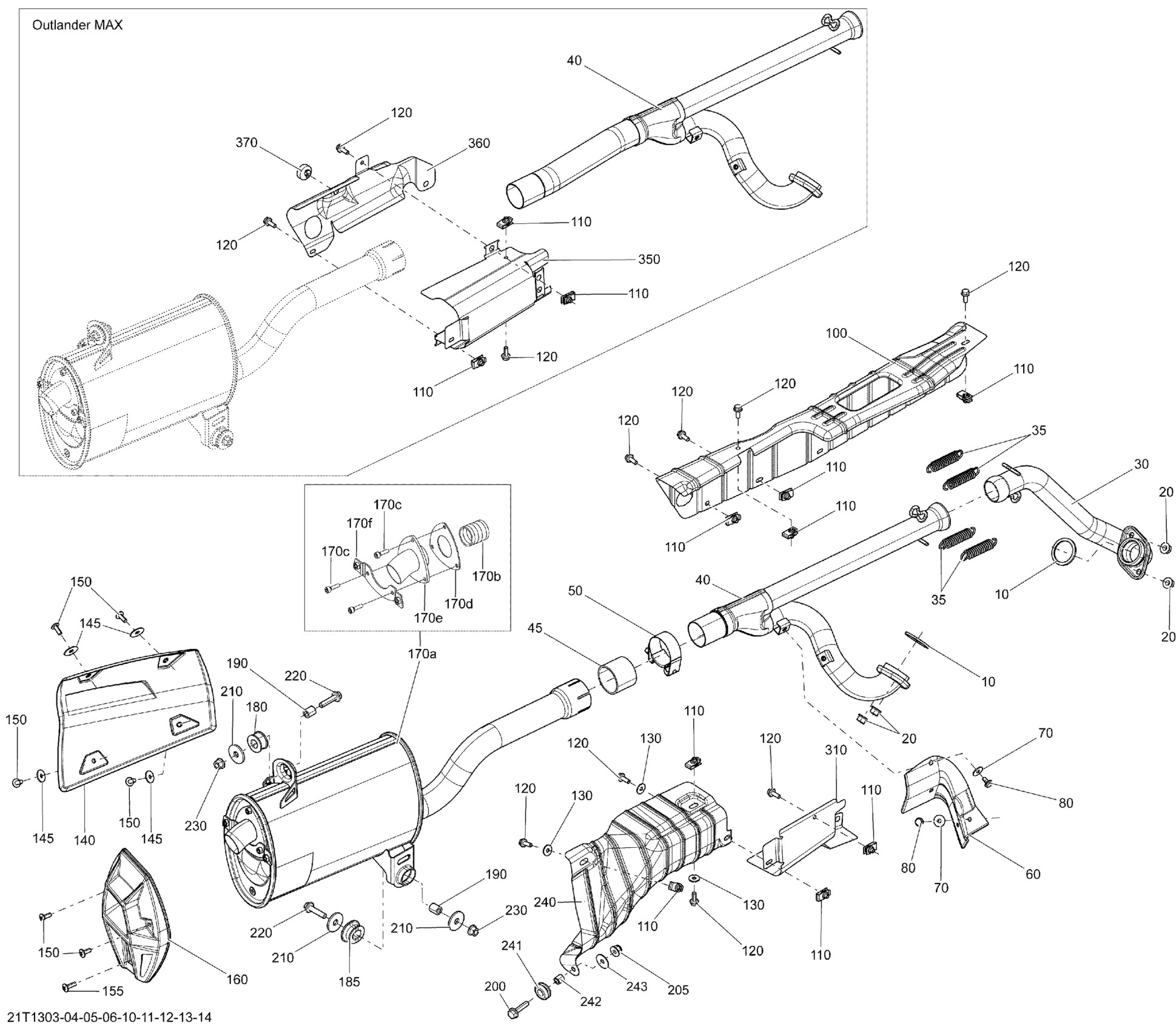

Can-Am Outlander 800R EFI, STD, DPS, XT & XT-P, 2013 01- Exhaust System Diagram

Gasket

Hex. Flange Nut M8

Front Head Pipe

Spring

Rear Head Pipe

Pipe Gasket

Norma Gear Clamp

Pipe Protector

Flat Washer

Hex. Flange Screw M6 X 12

Heat Shield

Panel Nut M6 X 1.0

Hex. Flange Screw M6 X 16, Scotch Grip

Flat Washer 6 mm

Heat Deflector

Stainless Steel Flat Washer

Torx Screw M6 X 16

Stainless Torx Screw M6 X 30

Muffler Cap

Exhaust Muffler | Includes 19a to 19f

MUFFLER_EXHAUST - Call your local BRP dealership | Europe, Includes 19a to 19f

Spark Arrestor

Socket Head Screw M6 X 20

Gasket

Muffler End Piece

Support

Vibration Damper

Rubber

Bushing

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Washer

Hex. Flange Screw M8 X 35

Hex. Flange Nut M8

Protector Kit

Grommet

Bushing

Flat Washer

HEAT DEFLECTOR - Call your local BRP dealership

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
