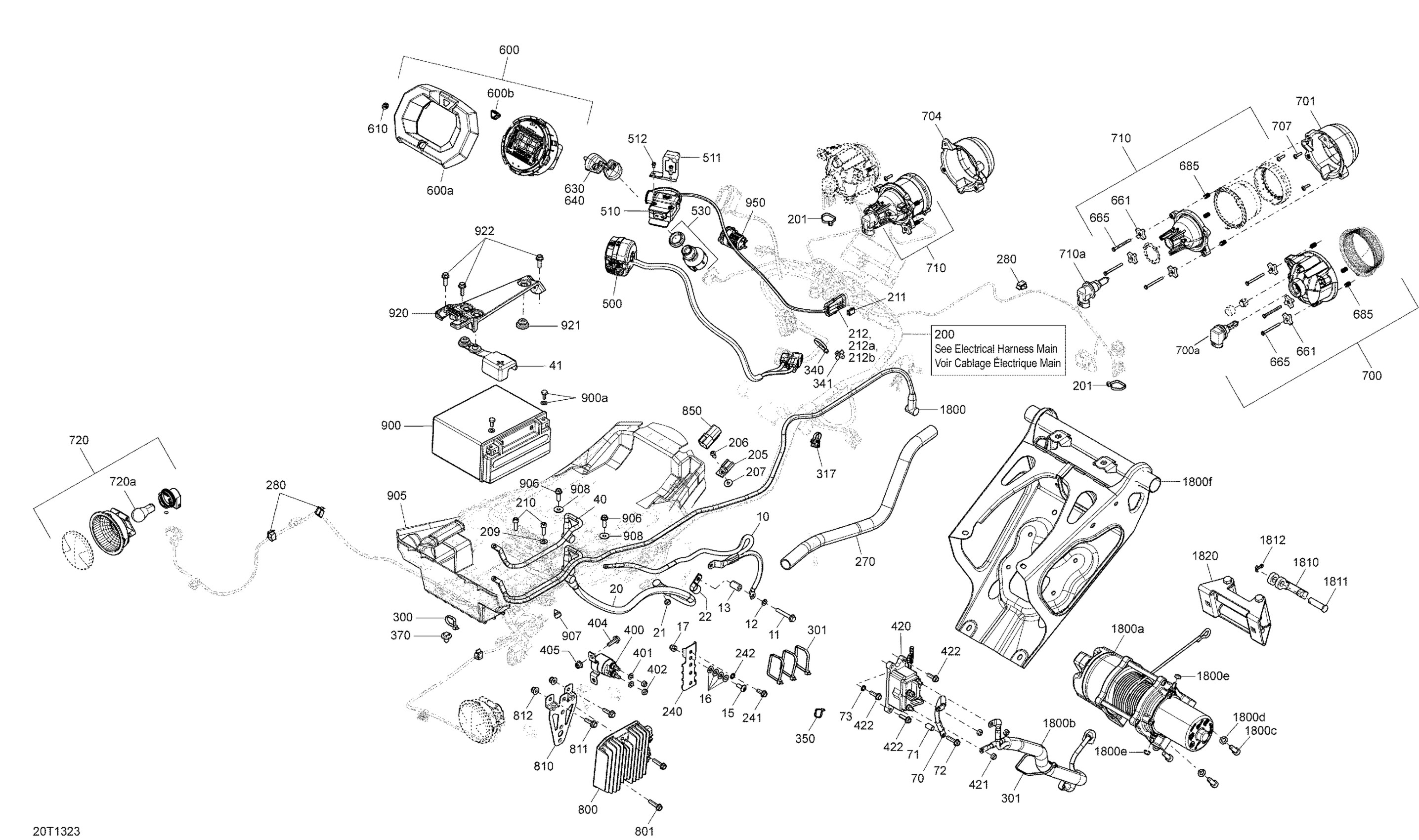

Can-Am Outlander 650EFI XMR, 2013 10- Electrical System Diagram

Ground Cable

710004382

$19.99

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44

Lock Washer Helical M6

234161601

$1.15

Spacer

517203200

$16.18

Torx Screw M6 X 16

250000223

$2.11

Flat Washer

224061121

$0.53

Domed Nut M6

232361493

$2.11

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

Elastic Stop Nut M6

232561414

$0.55

Open Clamp

518321570

$7.69

Connector Ass'y

710004375

$32.99

Positive Cable

710004376

$48.99

Battery Cable Cap

710006729

$7.20

CABLE_NEGATIVE - Call your local BRP dealership

710003003

Unavailable

Sleeve

293900078

$13.71

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

External Serrated Lock Washer 6 mm

234461608

$1.15

Main Harness Ass'y | Includes 1 to SWW

710003623

$1,009.99

Tie Wrap 142 mm

293750002

$1.25

Clip

270000141

$11.49

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Flat Washer

224061121

$0.53

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

Clip

710000992

$4.29

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Wire Seal

278000216

$3.19

BRACKET - Call your local BRP dealership

710002567

Unavailable

Hex. Flange Screw M6 X 16

210261650

$1.67

External Serrated Lock Washer 6 mm

234461608

$1.15

Protective Tubing

710003260

$33.99

Clip

414227300

$1.67

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap Clip

710002896

$4.39

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 173 mm

293750009

$1.04

Tie Wrap 94 mm | 4X4

293750001

$1.03

Mount Dart

293730040

$1.04

Starter Relay

710007777

$48.49

Lock Washer Helical M6

234161601

$1.15

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M6 X 20

207662084

$1.69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Winch Solenoid | XT Models

710001000

$121.99

Elastic Stop Nut M6

232561414

$0.55

Hexagonal Head Screw

210262050

$2.11

Switch Kit | XT, XTP, XMR, LTD

703500920

$97.49

Winch Switch | XT, XTP, XMR, LTD,

710002724

$164.49

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

Ignition Switch

710008400

$78.49

CALIBRATED SPEEDOMETER - Call your local BRP dealership | Includes 600 to 600b

710003405

Unavailable

Trim Ring

710002092

$8.99

Button

710001473

$13.71

BRP Logo13 mm

704904615

$13.49

Black, Electronic Key

710000817

$63.49

Grey, Electronic Key

710002183

$63.49

Handle

572106600

$10.33

Hex. Screw K40 X 45

250000718

$2.11

Spring

517168600

$7.39

Low Beam | Includes 54 to 55

710006177

$119.99

Bulb 12V 55W

715900141

$41.49

RH High Front Housing

710002291

$28.99

LH High Front Housing

710002292

$22.49

Phillips Screw K40 X 16

250000723

$0.98

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

Halogen Bulb

415129249

$41.49

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

Rectifier Support

710001752

$9.29

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Housing

710003006

$8.79

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Battery Support

710006561

$50.99

Hexagonal Head Screw

210262050

$2.11

Rubber Bumper

293830005

$8.09

Stainless Steel Flat Washer

234062670

$2.11

Fixation Plate

710002404

$9.39

Stopper Rubber

705014429

$5.95

Hex. Flange Screw M6 X 20

207662084

$1.69

DC Outlet

710001248

$37.99

Not Available As Spare Part - Friction Washer

Unavailable

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Winch Cables

710004378

$51.99

Socket Head Screw M8 X 20

205082044

$1.15

Lock Washer 8 mm

234181401

$0.92

Elastic Stop Nut M6

232561414

$0.55

Front Bumper Support

705016893

$349.99

Winch Hook Kit

705014949

$24.99

Clevis Pin

250400021

$13.18

Cotter Pin

250400022

$9.69

Fairlead_Roller Kit

715007699

$83.99
