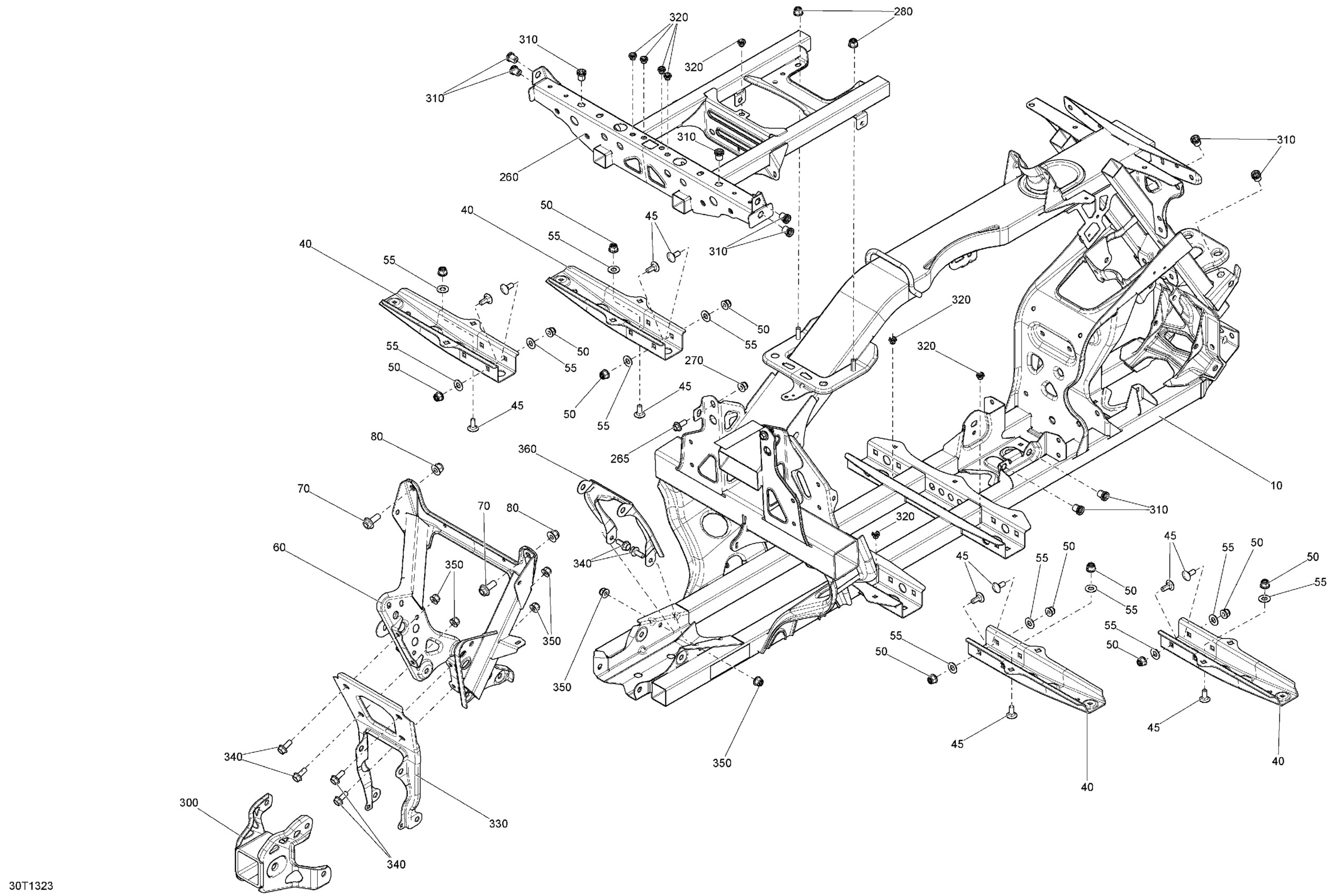

Can-Am Outlander 650EFI XMR, 2013 09- Frame Diagram

#

Description
Price

10

FRAME, BLACK - Call your local BRP dealership

705203598

Unavailable

40

SUPPORT KIT - Call your local BRP dealership

703500852

Unavailable

45

Carriage Bolt, M8 X 20

207782044

$1.90

50

Hex. Flange Elastic Nut M8

233281414

$1.47

55

Flat Washer 10 mm

234001410

$1.26

60

Rear Pillar

705210818

$69.99

70

Hex. Flange Screw M10 X 25

207602546

$2.11

80

Hex. Flange Elastic Nut M10

233201436

$2.11

260

WELDED EXTENSION, BLACK - Call your local BRP dealership

705202291

Unavailable

265

Hex. Flange Screw M10 X 25

207602546

$2.11

270

Hex. Flange Elastic Nut M10

233201436

$2.11

280

Hex. Flange Elastic Nut M8

233281414

$1.47

300

Trailer Hitch

715005186

$128.49

310

Insert Half Hex Body M8 x 1.25

293450307

$2.69

320

Threaded Insert M6 X 1.0

250100242

Unavailable

330

Rear Support

705203301

$43.99

340

Hex. Flange Screw M8 X 20

207682046

$1.90

350

Hex. Elastic Flange Nut M8

233281416

$1.48

360

FRONT LINK - Call your local BRP dealership

705202900

Unavailable
