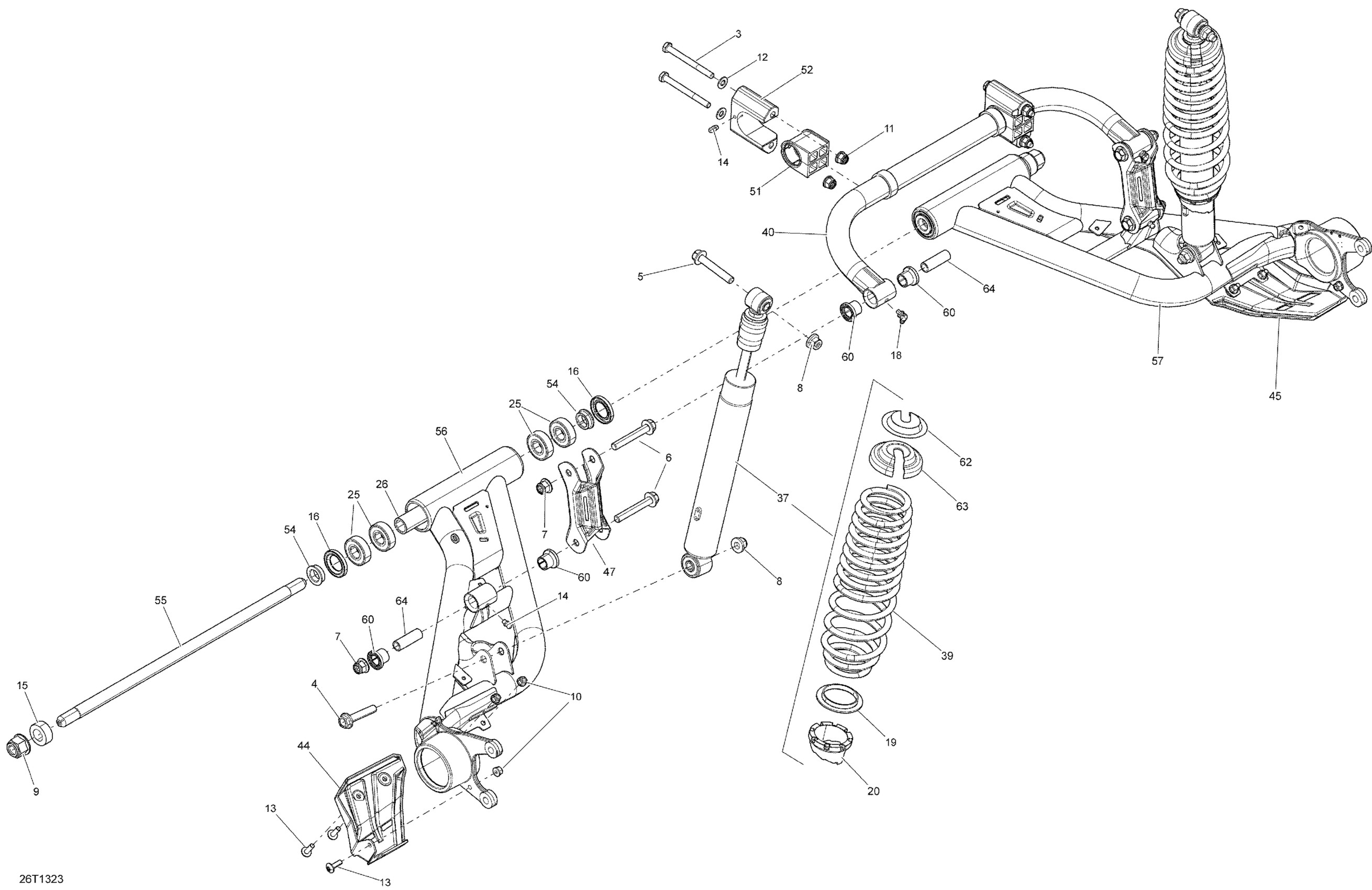

Can-Am Outlander 650EFI XMR, 2013 08- Rear Suspension Diagram

#

Description
Price

3

Hex. Screw M8 X 85

250001035

$1.89

4

Hex. Flange Screw M10 X 55

207605546

$2.11

5

Hex. Flange Screw M10 X 6

207606046

$4.12

6

Hex. Flange Screw M10 X 65

207606536

$4.44

7

Hex. Flange Elastic Nut M10

233201414

$1.58

8

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Hex. Flange Elastic Nut M16

233211466

$1.99

10

Hex. Flange Elastic Nut M6

233261494

$1.58

11

Hex. Flange Elastic Nut M8

233281434

$2.11

12

Flat Washer M8

234081430

$2.11

13

Torx Screw M6 X 20

250000722

$1.68

14

Grease Fitting

250000315

$5.82

15

Flat Washer M17

250200112

$7.99

16

Seal

293200144

$5.09

18

Grease Fitting 90°

293550056

$1.15

19

Spring Guide

503187500

$10.49

20

Adjustment Cam

505073625

$12.99

25

Ball Bearing

293350145

$13.75

26

Spacer

706002259

$28.99

37

Rear Shock

706000958

$185.49

39

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706001518

Unavailable

40

Swaybar

706000988

$126.99

44

LH PROTECTOR - Call your local BRP dealership

706001009

Unavailable

45

RH PROTECTOR - Call your local BRP dealership

706001010

Unavailable

47

Sway Bar Linkage

706001020

$13.99

51

Stabilizer Bar Bushing

706004640

$8.89

52

Bushing Holder

706001099

$33.99

54

Spacer

706001282

$12.99

55

Axial Pivot M16

706001664

$72.99

56

Black LH Swing Arm

706001860

$296.99

57

Black RH Swing Arm

706001861

$296.99

60

Bushing

706200181

$3.14

62

Cap

706200785

$4.69

63

Spring Stopper

706200881

$12.99

64

Sleeve

706201587

$3.79
