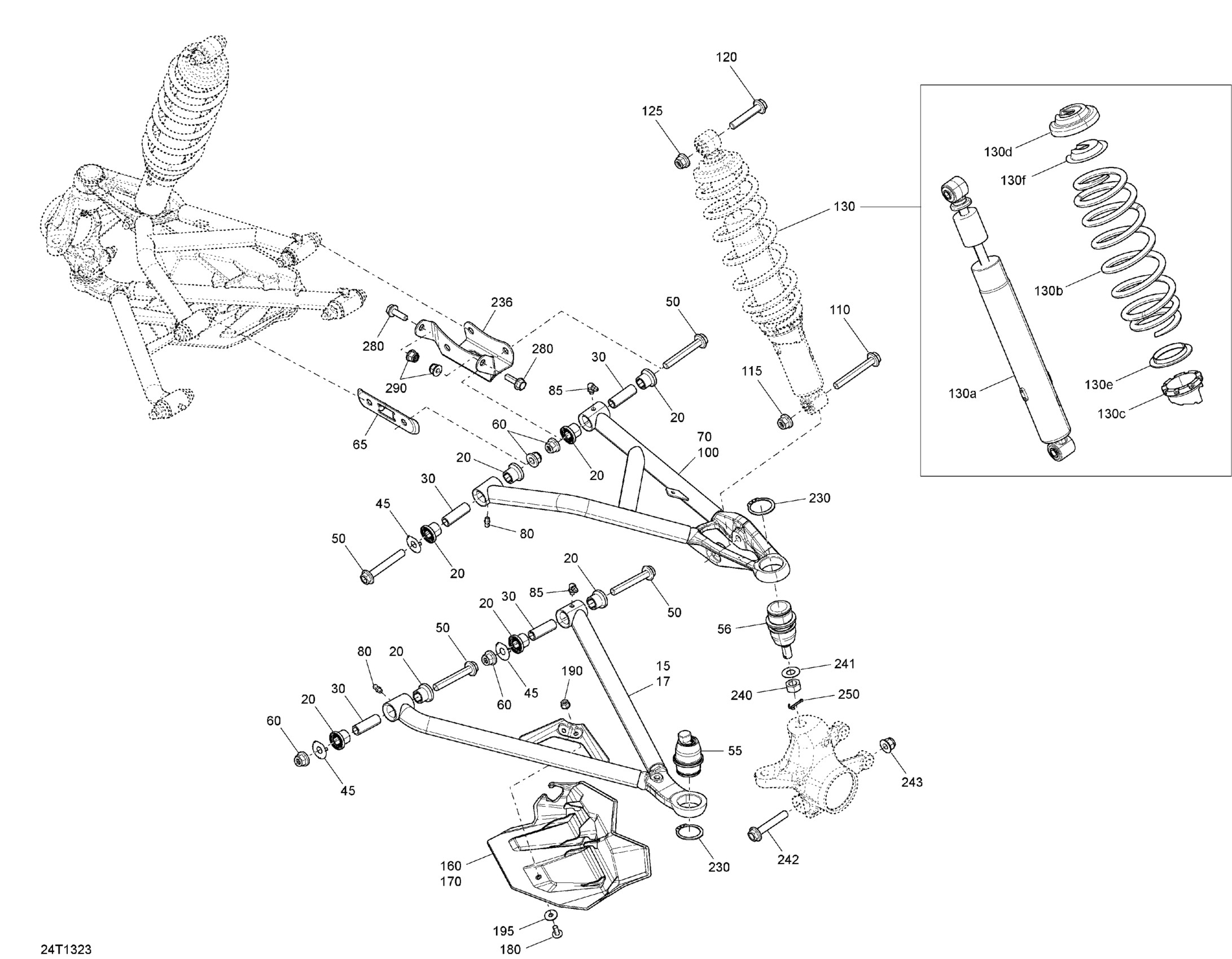

Can-Am Outlander 650EFI XMR, 2013 07- Front Suspension Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204639

$158.99

17

Black, RH Lower Arm

706202870

$158.99

20

Bushing

706200181

$3.14

30

Sleeve

706201587

$3.79

45

Wear Plate

706201063

$0.95

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202045

$35.99

56

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Front Suspension Cross Plate

706200998

$5.09

70

Black RH Upper Arm

706201797

$158.99

80

Grease Fitting

408200700

$3.49

85

Grease Fitting 90°

293550056

$1.15

100

Black LH Upper Arm

706201796

$158.99

110

Hex. Flange Screw M10 X 75

250001038

$6.77

115

Hex. Flange Elastic Nut M10

233201436

$2.11

120

Hex. Flange Screw M10 X 55

207605546

$2.11

125

Hex. Flange Elastic Nut M10

233201436

$2.11

130

Not Available As Spare Part - Friction Washer

Unavailable

130a

Front Shock

706201170

$185.49

130b

Yellow Spring

706201769

$116.49

130c

Adjustment Cam

505073625

$12.99

130d

Spring Stopper

706200881

$12.99

130e

Spring Guide

503187500

$10.49

130f

Cap

706200785

$4.69

160

LH Joint Protector

706202808

$9.90

170

RH Joint Protector

706202809

$9.90

180

Torx Truss Screw M6 X 16

250000721

$1.69

190

Hex. Flange Elastic Nut M6

233261494

$1.58

195

Stainless Steel Flat Washer

234062670

$2.11

230

Circlip

293370035

$2.64

236

Upper Front Holder

705203247

$15.99

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

242

Hex. Flange Screw M10 X 60

207606044

$3.38

243

Hex. Flange Elastic Nut M10

233201434

$2.09

250

Cotter Pin

211400017

$0.33

280

Hex. Flange Screw M8 X 25

207682544

$1.35

290

Hex. Flange Elastic Nut M8

233281414

$1.47
