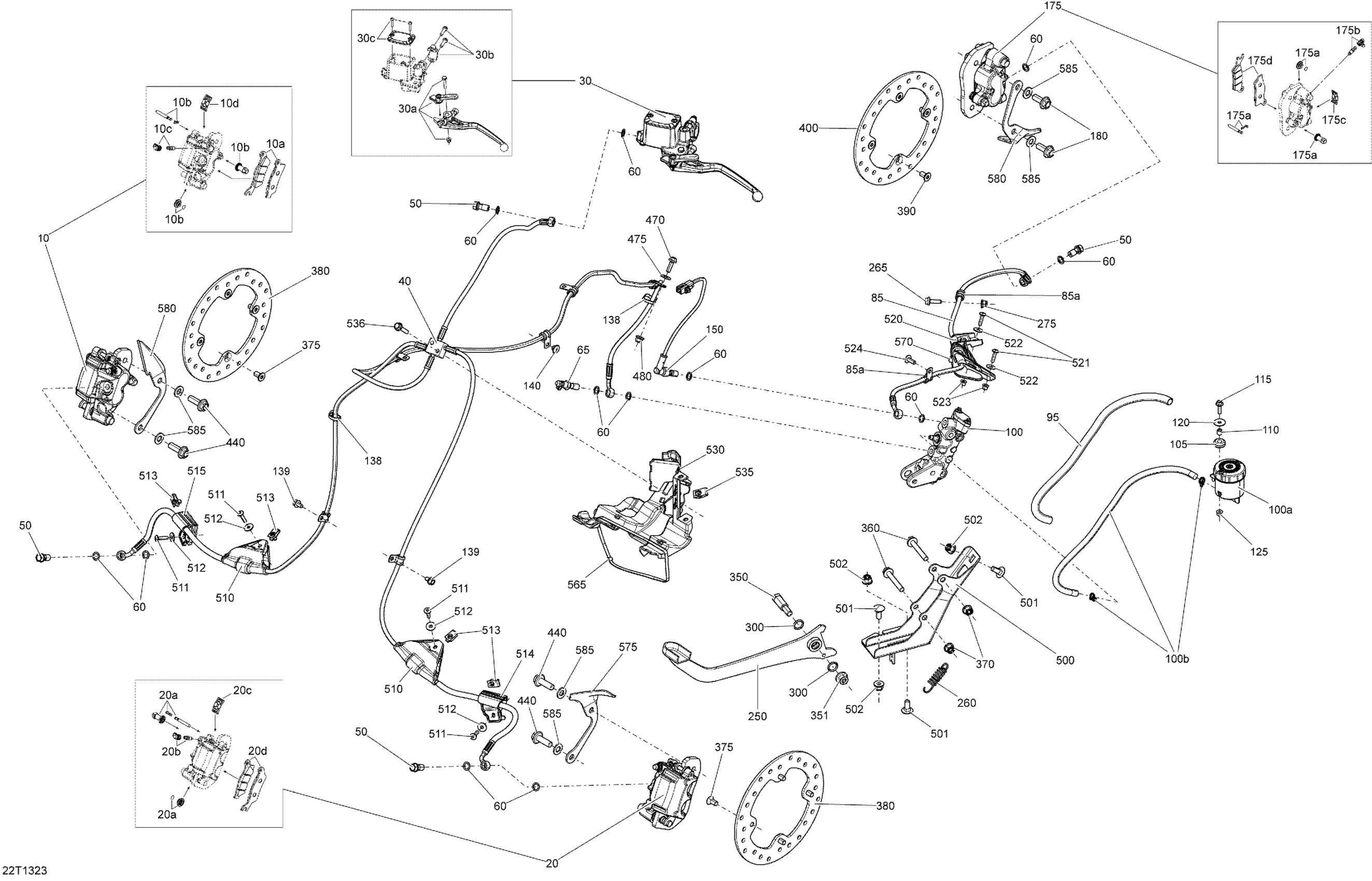

Can-Am Outlander 650EFI XMR, 2013 06- Brakes Diagram

#

Description
Price

10

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

10a

RH Organic Brake Pad Kit

705601014

$42.49

10b

Pin Set

705601016

$9.26

10c

Bleeding Screw

705601017

$6.35

10d

Retaining Spring

705601018

$7.55

20

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

20a

Pin Set

705601016

$9.26

20b

Bleeding Screw

705601017

$6.35

20c

Retaining Spring

705601018

$7.55

20d

LH Organic Brake Pad Kit

705601015

$42.49

30

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

30a

Lever Set

705601013

$63.99

30b

Clamp And Screw Kit

507032477

$23.99

30c

Cap Set

219800096

$21.99

40

LH RH Front Hose

705601519

$174.99

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

65

Bleeding Screw

705601051

$12.16

85

Brake Line Ass'y

705601002

$38.99

85a

Clamp

293650256

$5.49

95

Tubing 10 MM 1000MM Long

219704407

$2.79

100

Rear Master Cylinder | Includes 21 to 23

705601273

$269.99

100a

Oil Tank

705601020

$39.99

100b

Oil Housing Hose

705601019

$15.87

105

Grommet

414036300

$2.79

110

Bushing

293900112

$10.06

115

Hex.Flange Screw M5 X 20

207652044

$1.90

120

Flat Washer

224060201

$1.26

125

Hex. Flange Elastic Nut M5

233251414

$1.04

138

Tie-Rap 180 mm

414115200

$0.11

139

Hex. Flange Screw M6 X 10

210261040

$1.48

140

Pop Rivet 3/16"

390406500

$0.88

150

Brake Switch

705601250

$59.49

175

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

175a

Pin Set

705601016

$9.26

175b

Bleeding Screw

705601017

$6.35

175c

Retaining Spring

705601018

$7.55

175d

RH Organic Brake Pad Kit

705601014

$42.49

180

Hex. Flange Screw M10 X 25

207502546

$2.11

250

Deep Black, Brake Pedal

705602163

$154.99

260

Brake Pedal Spring

705600792

$9.10

265

Hex. Flange Screw M6 X 20

207662044

$2.00

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

300

O-Ring

293300144

$3.82

350

Shoulder Screw M10

250000513

$6.77

351

Hex. Flange Elastic Nut M10

233201436

$2.11

360

Hex. Flange Screw M8 X 55

207685544

$5.39

370

Hex. Flange Elastic Nut M8

233281414

$1.47

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

380

Disc Brake

705600999

$67.99

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

400

Disc Brake

705600999

$67.99

440

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

470

Hex. Flange Screw M6 X 20

207662044

$2.00

475

Flat Washer 6 mm

234062410

$0.77

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

500

Brake Pedal Bracket

705202000

$38.99

501

Carriage Bolt, M8 X 20

207782044

$1.90

502

Hex. Flange Elastic Nut M8

233281414

$1.47

510

Hose Guard

705601893

$4.55

511

Torx Screw M5 X 20

250000724

$1.69

512

Washer M5

250200025

$0.74

513

Panel Nut M5 X 0.8

250000958

$4.23

514

LH Hose Bracket

705601048

$4.55

515

RH Hose Bracket

705601049

$4.55

520

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

521

Torx Screw M5 X 20

250000792

$2.11

522

Washer M5

250200025

$0.74

523

Elastic Flange Nut M5

233251494

$2.11

524

Torx Screw M6 X 16

250000755

$0.87

530

Front Hose Bracket

705600983

$13.71

535

Panel Nut M6 X 1.0

250100198

$2.11

536

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.44

565

Tie Rap, 533 mm

293750047

$2.09

570

Tie Wrap 368 mm

293750008

$1.04

575

LH Deflector

705601214

$24.99

580

RH Deflector

705601215

$24.99

585

Flat Washer 10 mm

234001410

$1.26
