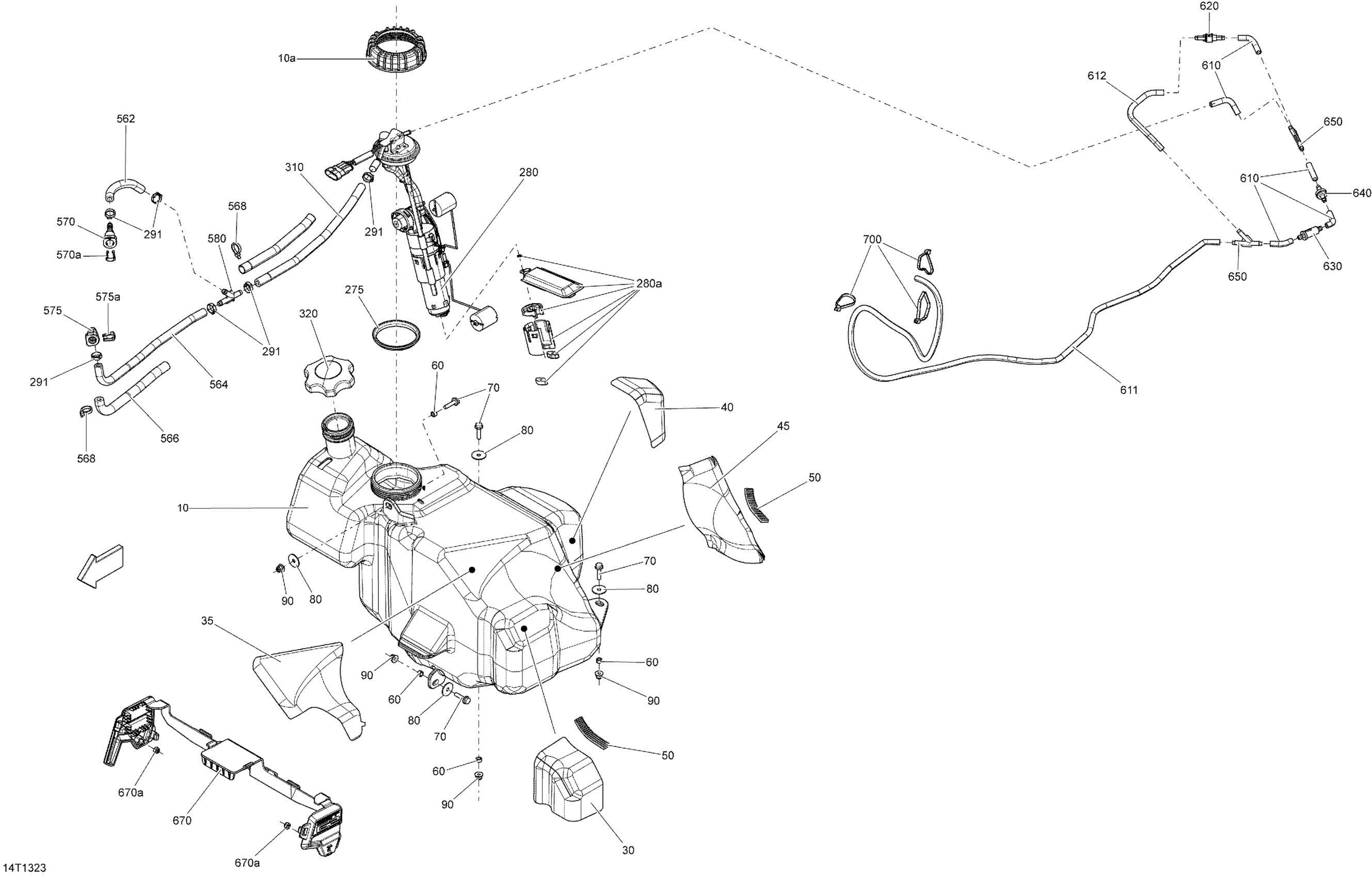

Can-Am Outlander 650EFI XMR, 2013 02- Fuel System Diagram

#

Description
Price

10

Fuel Tank Ass'y | Includes 1 to 2

709000799

Unavailable

10a

Fuel Pump Module Nut

709000328

$13.75

30

Heat Reflective Sheet

709000381

$6.99

35

Heat Reflective Sheet

709000387

$5.09

40

Heat Reflective Sheet

709001071

$10.49

45

Heat Reflective Sheet

709000388

$6.39

50

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

60

Bushing | DS 650 X

293900104

$5.50

70

Hex. Flange Screw M6 X 25

207662544

$0.64

80

Washer

224060251

$0.58

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

275

Seal

709000208

$14.99

280

Fuel Pump | Includes 10a to 10b

709001517

$340.99

280a

Fuel Pre-Filter Kit

709000389

$79.49

291

Oetiker Clamp

293650046

$2.89

310

Was 709000163 Fuel Line

219704440

$28.99

320

Fuel Tank Cap

513033025

$24.49

562

Was 709000163 Fuel Line

219704440

$28.99

564

Was 709000163 Fuel Line

219704440

$28.99

566

Tubing 16 Mm 1000Mm Long

219704408

$7.49

568

Tie Wrap 142 mm

293750002

$1.25

570

Female Quick Fitting Ass'y

709000125

$15.49

570a

Locking Clip

513033135

$5.89

575

Quick Fitting 90° Ass'y

415128965

$10.99

575a

Locking Clip

513033135

$5.89

580

Y-Fitting, 5/16''

293710136

$6.49

610

Polyurethane Hose 10000Mm Long

219704410

$56.99

611

Polyurethane Hose 10000Mm Long

219704410

$56.99

612

Polyurethane Hose 10000Mm Long

219704410

$56.99

620

Check Valve

513033469

$31.99

630

Filter

709000330

$7.79

640

Check Valve

275500398

$10.99

650

Y-Fitting

293710059

$9.69

670

Hose Support Ass'y

709000359

$14.31

670a

Hex. Elastic Stop Nut M6

232561600

$1.15

700

Tie-Rap 180 mm

414115200

$0.11
