Description

Price

16

Tie-Rap 180 mm

414115200

$0.11

17

Plug

707001185

$1.15

18

Retainer Clip

707800506

$12.63

20

PROTECTOR CONNECTOR - Call your local BRP dealership

707001204

Unavailable

21

Tie-Rap 180 mm

414115200

$0.11

22

Tie-Rap 173 mm

293750009

$1.04

23

Tie-Rap Clip

710002896

$4.39

25

Hex. Flange Screw M6 X 50

207665044

$4.12

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

External Serrated Lock Washer 6 mm

234461608

$1.15

50

Insulator Pad

710000073

$11.12

56

Polyurethane Hose 10000Mm Long

219704410

$56.99

57

Clamp, Oetiker

293650195

$1.09

70

Throttle Cable

707000955

$13.24

71

Tie-Rap 180 mm

414115200

$0.11

75

Cable Guide

707000434

$11.60

90

Throttle Handle | 4X4

707000595

$214.99

100

Socket Head Screw M5 X 25

205052588

$1.90

130

Vibration Damper

707001169

$42.99

140

Engine Support

707003319

$10.99

145

Hex. Elastic Flange Nut M8

233281416

$1.48

146

Hex. Flange Screw M8 X 20

207682046

$1.90

150

LH Rear Engine Bracket

707001193

$16.99

155

RH Rear Engine Bracket

707001194

$16.99

160

Hex. Flange Screw M10 X 125

230602546

$7.41

170

Hex. Flange Elastic Nut M10

233201436

$2.11

190

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

210

Hex. Flange Screw M10 X 25

207602544

$1.69

230

Upper Engine Bracket

707001256

$13.49

240

Rubber Isolator

707000949

$11.49

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

260

Hex. Elastic Stop Nut M8

232581414

$0.56

270

Flexibale Adaptor

707002585

$10.99

280

Norma Clamp

293650091

$11.12

285

Filter CVT

707001130

Unavailable

286

CVT Filter Base

707001171

$8.59

287

CVT Filter Support

707001203

$65.99

288

Hex. Flange Screw M6 X 25

207562544

$1.69

289

Tie-Rap 173 mm

293750009

$1.04

290

CVT Air Inlet

707001087

$43.99

292a

CVT Air Inlet

707001301

$53.99

292b

CVT Air Inlet

707001302

$53.99

292c

Tube

707001263

$9.79

292d

Norma Clamp

293650091

$11.12

293

Norma Clamp

293650091

$11.12

295

Deflector

707001129

$20.99

300

Tie-Rap 180 mm

414115200

$0.11

330

Hex. Flange Screw M6 X 25

207562544

$1.69

340

CVT Air Outlet Adaptor

707001168

$15.99

350

Norma Gear Clamp

293650118

$13.16

355

Norma Clamp

293650091

$11.12

360

Air Outlet

706600019

$37.99

361

Heat Shield

707001205

$10.49

362

Heat Shield

707001206

$10.49

365

AIR OUTLET - Call your local BRP dealership

706600020

Unavailable

366

Tuflok Plastic Rivet

293150230

$1.47

370

Tie Wrap 142 mm

293750002

$1.25

395

Lever

707000911

$20.49

410

Hex. Flange Screw M6 X 35

207663544

$0.90

415

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Hex. Nut M8, LH Threads

250100144

$2.00

430

Hex. Flange Elastic Nut M8

233281414

$1.47

440

Carriage Bolt M8 X 30

207783044

$2.11

490

Ball Joint Ass'y | Includes 55 to 56

707000966

$36.99

490a

Hex. Jam Nut M8

232180600

$0.67

510

SHIFTER ROD - Call your local BRP dealership

707001082

Unavailable

516

Screw Socket M10 X 25 | Europe

205402556

$3.91

520

Hex. Jam Nut M8

232180600

$0.67

530

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

535

Hex. Flange Screw M6 X 25

207662544

$0.64

540

Bushing

293900019

$7.73

590

Lever Support

707003054

$6.67

600

Spring

707000577

$10.99

610

Shift Arm | Except Europe

707000840

$16.87

630

Lever Trim

707003211

$8.49

640

RH Ball Joint

707001959

$36.99

650

Washer

506151252

$3.17

655

Hex. Elastic Stop Nut M8

232581414

$0.56

660

Cover OPS

707000410

$13.24

670

Hex. Flange Screw M6 X 12

210261250

$1.90

680

Upper Cable Support

707001955

$10.49

690

Tie-Rap 180 mm

414115200

$0.11

695

Tie-Rap Clip

710002896

$4.39

700

Tie-Rap 180 mm

414115200

$0.11

701

Tie-Rap 180 mm

414115200

$0.11

702

Tie-Rap 180 mm

414115200

$0.11

710

Tie-Rap 180 mm

414115200

$0.11

720

Tie Wrap 142 mm

293750002

$1.25

730

Welded Support

707001498

$89.99

735

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

737

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

740

Air Outlet Support

707001262

$9.89

742

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

745

Panel Nut M6 X 1.0

250100198

$2.11

750

Polyurethane Hose 10000Mm Long

219704410

$56.99

780

Tie-Rap 180 mm

414115200

$0.11

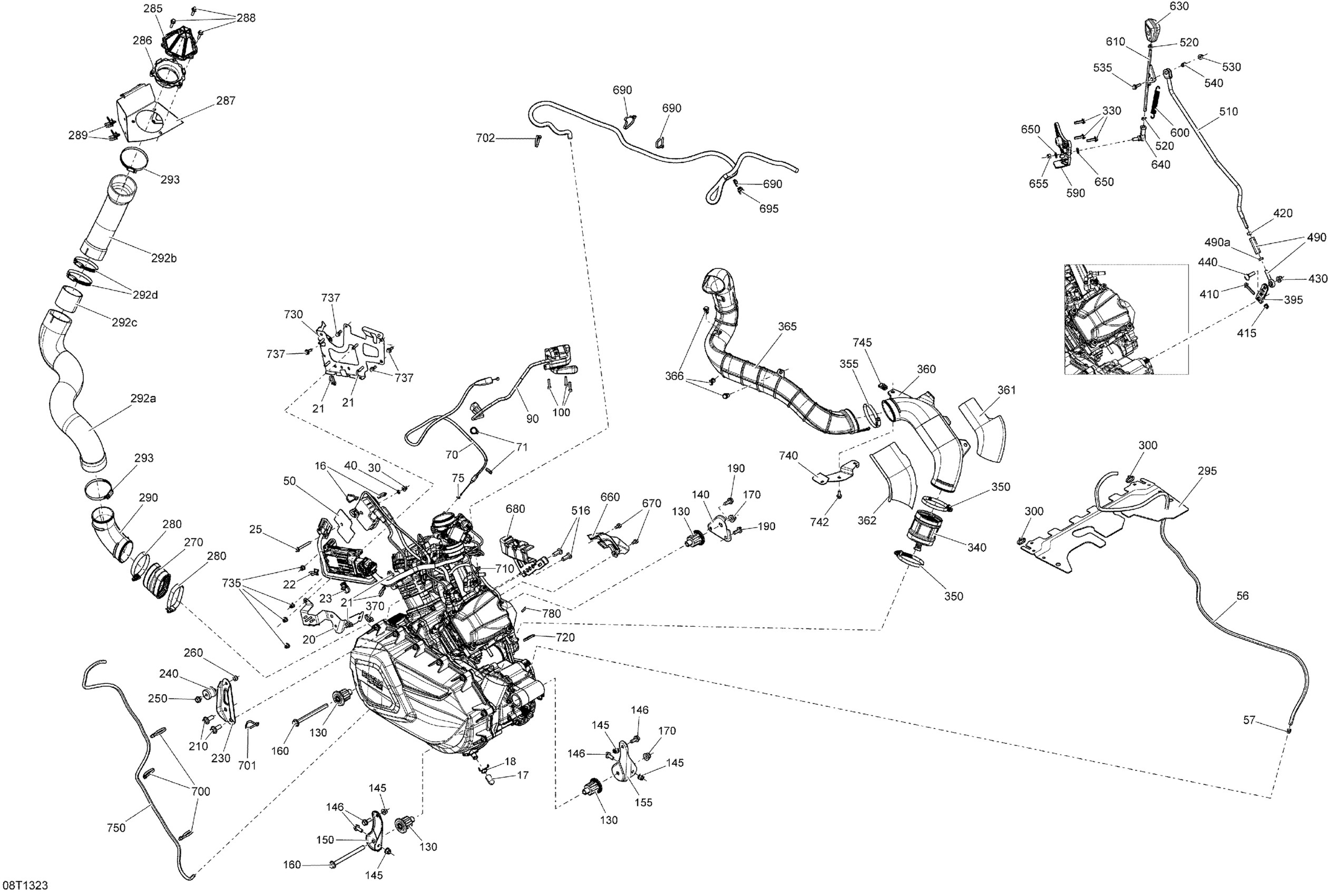

Can-Am Outlander 650EFI XMR, 2013 01- Engine And Engine Support Diagram
