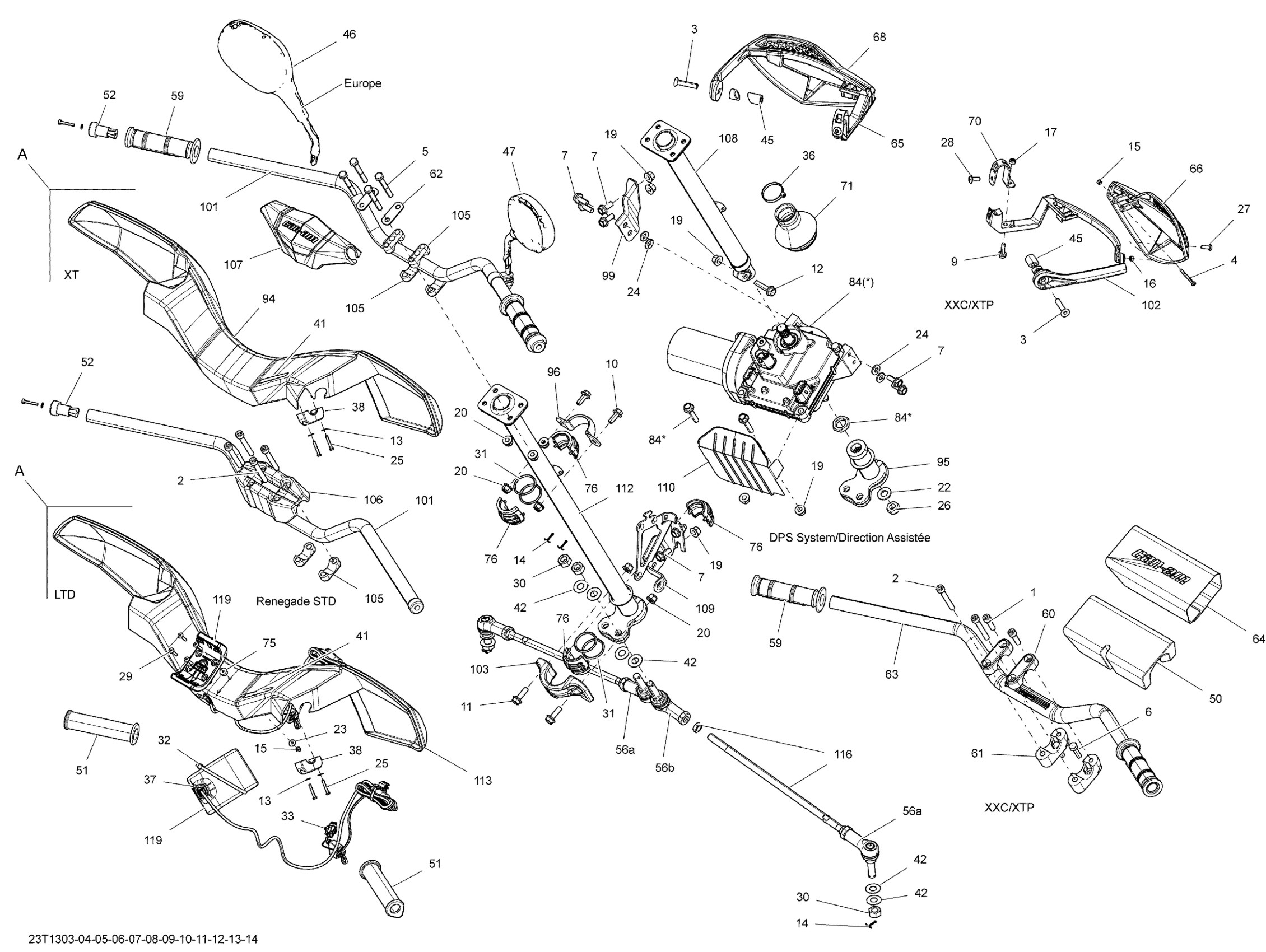

Can-Am Outlander 500EFI STD, DPS & XT, 2013 07- Steering Diagram

#

Description
Price

1

Socket Screw M8 X 30

205083060

$2.96

2

Socket Head Screw M8 X 60

205086060

$4.12

3

Socket Head Screw | X

205384034

$6.49

4

Socket Head Screw M4 X 40 | X

205444086

$1.69

5

Hex. Screw M8 X 60

207086046

$2.85

6

Hex. Screw M8 X 30

207183060

$1.58

7

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Screw M8 X 20

207682044

$1.15

11

Hex. Flange Screw M8 X 25

207682544

$1.35

12

Hex. Flange Screw M8 X 35

207683544

$1.69

13

Flat Washer | XT

211200035

$0.55

14

Cotter Pin

211400013

$0.37

15

Elastic Stop Nut M4

232541414

$0.58

16

Hex. Elastic Nut M5 | X

232551600

$1.15

17

Hex. Elastic Stop Nut M6

232561600

$1.15

19

Hex. Flange Nut M8

233081416

$1.15

20

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Hardened Washer

706200281

$2.85

23

Flat Washer 4 mm, Stainless

234042600

$1.15

24

Conical Spring Washer M8

234281474

$1.48

25

Hex. Flange Screw K40 X 25

241142560

$2.64

26

Hex. Flange Elastic Nut M12

250000047

$1.90

27

Torx Screw M5 X 14

250000742

$1.47

28

Torx Screw M6 X 16

250000223

$2.11

29

TORX SCREW M4 X 20 - Call your local BRP dealership

250000405

Unavailable

30

Nut M12

250100099

$2.09

31

O-Ring

293300068

$7.65

32

Tie Wrap 368 mm

293750008

$1.04

33

Tie-Rap 173 mm

293750009

$1.04

36

Tie-Rap 180 mm

414115200

$0.11

37

Tie-Rap 180 mm

414115200

$0.11

38

U-Clamp | XT

517303264

$11.99

41

DPS Decal

704902966

$14.49

42

Hardened Washer

706200281

$2.85

45

Large Bracket | DS 650 X

709400162

$20.99

46

LH Mirror | Europe

709400406

$32.99

47

RH Mirror | Europe

709400407

$47.49

50

Foam

709400422

$17.49

51

Grey, Handle Grip

709400443

$13.77

52

End Piece

709400449

$8.49

59

Handle Grip

709400493

$14.83

60

Support

709400496

$22.49

61

Lower Mounting Clamp

709402750

$25.99

62

Stiffner

709400509

$4.69

63

Aluminum Handle Bar

709400513

$63.49

64

Cover B-190

709402414

$30.99

65

Air Deflector Support Kit | X

715001378

$138.49

66

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

68

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

70

Air Deflector Support Kit | X

715001378

$138.49

71

Bellows

709400674

$18.99

75

Rubber Bumper

709400781

$4.39

76

Spherical Half Bushing

709400783

$7.65

84

Power Steering

709401608

$1,010.49

94

Handle Bar Protector | XT

709400822

$90.99

95

Pitman Kit | Includes 3 to 5

703500785

$159.99

96

Upper Column Attachment

709400827

$1.09

99

Power Steering Module Bracket

709400848

$16.49

101

Black, Handle Bar

709401240

$69.99

102

Air Deflector Support Kit | X

715001378

$138.49

103

Column Attachment

709401428

$38.99

105

Steering Support

709400919

$22.49

106

SUPPORT - Call your local BRP dealership

709400920

Unavailable

107

Cover

709400939

$24.99

108

Kit Tube-Main.

703501137

$184.99

109

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

110

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

112

Main Tube

709401008

$144.99

113

Handle Guard Ass'y, LTD

703100357

$92.99

116

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

119

GPS Support | LTD Model

710003210

$214.99

56a

RH Ball Joint

709402302

$36.99

56b

LH Ball Joint

709402303

$36.99

A

Handle Guard Ass'y, XT

703100352

$98.49

A

Handle Guard Ass'y, LTD

703100357

$92.99
