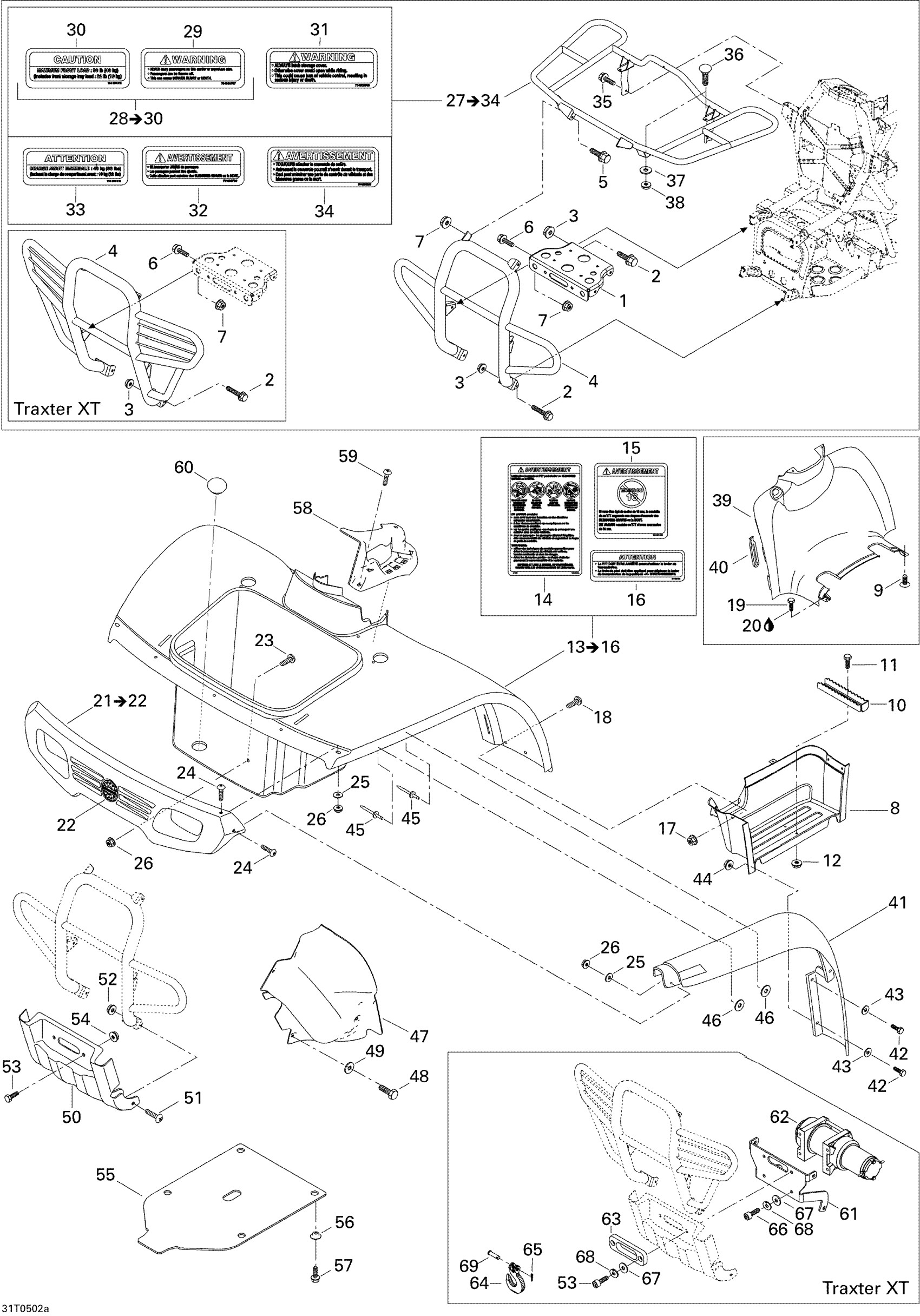

Can-Am Traxter 5 Speed, 2005 09- Body And Accessories (Front) Diagram

#

Description
Price

1

WINCH LATCH, BLACK - Call your local BRP dealership

705200196

Unavailable

2

Hex. Flange Screw M8 X 25

207682544

$1.35

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

FRONT BUMPER, BLACK - Call your local BRP dealership | Traxter 5 Speed XT

705000585

Unavailable

4

Front Bumper, Black | Traxter 5 Speed STD

705000591

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Hex. Flange Screw M8 X 25

207682544

$1.35

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

RH Footboard, Black

705000017

Unavailable

8

LH FOOTBOARD, BLACK - Call your local BRP dealership

705000018

Unavailable

9

Black, Dart

293730011

$0.99

10

Footrest, Black

705001083

Unavailable

11

Hex. Flange Screw M6 X 25

207662554

$1.48

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

FRONT FENDER, GREEN - Call your local BRP dealership | Green, Includes 13 To 16

703500393

Unavailable

13

Front Fender, yellow | Yellow, Includes 13 To 16

703500398

Unavailable

13

Front Fender, red | Red, Includes 13 To 16

703500395

Unavailable

14

Warning Decal, Death And Injuries | English version

704900001

Unavailable

14

Warning Decal, Death And Injuries

704900002

Unavailable

15

Warning Decal, Under 16 Years Old

704900011

Unavailable

15

Warning Decal, Under 16 Years Old | French Version

704900012

Unavailable

16

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

16

Caution Decal, Transmission Selector | French version

704900008

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

19

Hex. Flange Screw M6 X 12

207661244

$2.11

20

Loctite 243, 10 ml

293800060

$21.49

21

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

22

BRP Logo 68mm

516008739

$16.99

23

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

24

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

25

Flat Washer

224060201

$1.26

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Luggage Rack Kit | Includes 27 To 34

703500452

Unavailable

28

Warning Decal, Front Load | English Version, Includes 28 To 30

704900799

Unavailable

29

Warning Label, death And Injuries | English Version

704900797

Unavailable

30

Maximum Load Label | English Version

704900015

Unavailable

31

Warning Decal, Cover Latch | English Version

704900800

Unavailable

32

Warning Decal, Death And Injuries | French Version

704900798

Unavailable

33

Caution Decal, Maximum Load | French Version

704900016

Unavailable

34

Warning Decal, Cover Latch | French Version

704900801

Unavailable

35

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

36

TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

250000035

Unavailable

37

Flat Washer

224061121

$0.53

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

39

Tank Cover

705000010

Unavailable

40

Windshield Latch

570023800

$4.49

41

RH FRONT MUDGUARD - Call your local BRP dealership

705001577

Unavailable

41

LH FRONT MUDGUARD - Call your local BRP dealership

705001576

Unavailable

42

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

43

Flat Washer

224060201

$1.26

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

45

Tuflok Plastic Rivet

293150230

$1.47

46

Flat Washer 8 mm

234082410

$1.47

47

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

47

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

48

Hex. Flange Screw M6 X 16

210261650

$1.67

49

Flat Washer

224061201

$1.37

50

Front Protection Plate, black

705000135

Unavailable

51

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

53

Hex. Flange Screw M10 X 25

207602544

$1.69

53

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

54

Hex. Flange Elastic Nut M10

233201414

$1.58

55

Skid Plate

705200535

Unavailable

56

CUP - Call your local BRP dealership

705200533

Unavailable

57

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

58

Lever Indicator

705000081

Unavailable

59

Tuflock Phillips Plastic Screw

414745900

$1.69

60

Rubber Cover

570041600

Unavailable

61

Mounting Plate | Traxter 5 Speed XT

705000994

Unavailable

62

WINCH - Call your local BRP dealership

705000839

Unavailable

63

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

64

Winch Hook Kit

705014949

$24.99

65

Cotter Pin

250400022

$9.69

66

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

67

Flat Washer 8 mm

234081410

$0.83

68

Lock Washer 8 mm

234181401

$0.92

69

Clevis Pin

250400021

$13.18
