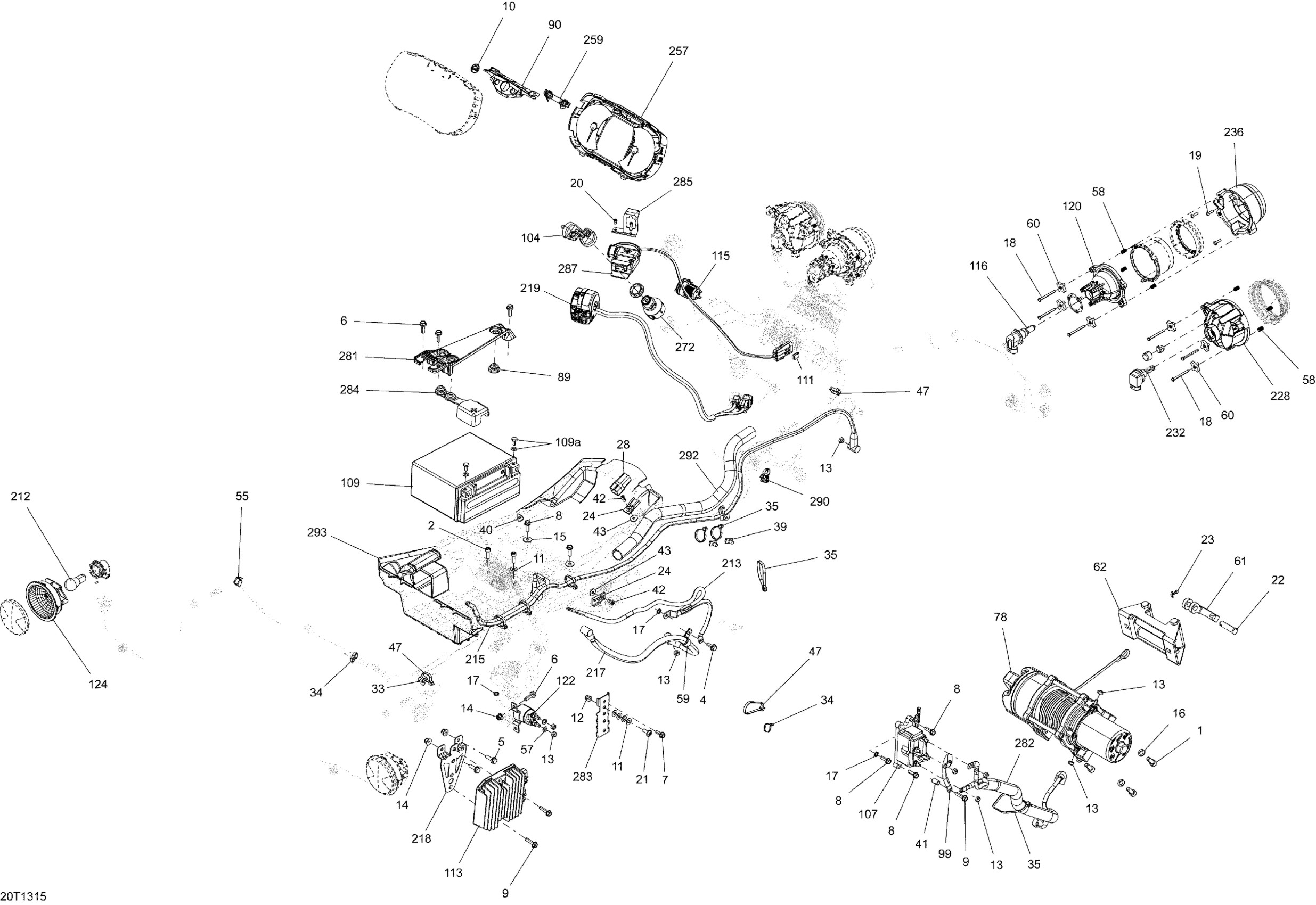

Can-Am Outlander 1000EFI XMR, 2013 10- Electrical System Diagram

#

Description
Price

1

Socket Head Screw M8 X 20

205082044

$1.15

2

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

4

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M6 X 20

207662084

$1.69

7

Hex. Flange Screw M6 X 16

210261650

$1.67

8

Hexagonal Head Screw

210262050

$2.11

9

SCREW-FORMING HEX.HD.FL.GM6174M - Call your local BRP dealership

210263580

Unavailable

10

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

11

Flat Washer

224061121

$0.53

12

Domed Nut M6

232361493

$2.11

13

Elastic Stop Nut M6

232561414

$0.55

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Stainless Steel Flat Washer

234062670

$2.11

16

Lock Washer 8 mm

234181401

$0.92

17

External Serrated Lock Washer 6 mm

234461608

$1.15

18

Hex. Screw K40 X 45

250000718

$2.11

19

Phillips Screw K40 X 16

250000723

$0.98

20

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

21

Torx Screw M6 X 16

250000223

$2.11

22

Clevis Pin

250400021

$13.18

23

Cotter Pin

250400022

$9.69

24

Clip

270000141

$11.49

28

Housing

710003006

$8.79

33

Mount Dart

293730040

$1.04

34

Tie Wrap 94 mm | 4X4

293750001

$1.03

35

Tie Wrap 368 mm

293750008

$1.04

39

Tie-Rap 173 mm

293750009

$1.04

40

Rubber Bumper

293830005

$8.09

41

Sleeve

293900078

$13.71

42

Pop Rivet 3/16"

390402300

$0.75

43

Washer | DS 650 X

391301600

$0.48

47

Tie-Rap 180 mm

414115200

$0.11

55

Clip

414227300

$1.67

57

Lock Washer Helical M6

234161601

$1.15

58

Spring

517168600

$7.39

59

Open Clamp

518321570

$7.69

60

Handle

572106600

$10.33

61

Winch Hook Kit

705014949

$24.99

62

Fairlead_Roller Kit

715007699

$83.99

78

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

89

Stopper Rubber

705014429

$5.95

90

Cap Support | XTP

705004366

$15.49

99

CABLE_NEGATIVE - Call your local BRP dealership

710003003

Unavailable

104

Black, Electronic Key

710000817

$63.49

107

Winch Solenoid | XT Models

710001000

$121.99

109

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

109a

Battery Bolt Kit

250000282

$7.29

111

Clip

710000992

$4.29

113

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

115

DC Outlet

710001248

$37.99

120

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

116

Halogen Bulb

415129249

$41.49

122

Starter Relay

710007777

$48.49

124

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

212

Bulb

520000758

$9.10

213

Ground Cable

710004382

$19.99

215

Connector Ass'y

710004375

$32.99

217

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

218

Rectifier Support

710001752

$9.29

219

Switch Kit | XT, XTP, XMR, LTD

703500920

$97.49

228

Low Beam | Includes 54 to 55

710006177

$119.99

232

Bulb 12V 55W

715900141

$41.49

236

RH High Front Housing

710002291

$28.99

236

LH High Front Housing

710002292

$22.49

257

Speedometer Ass'y

710004545

$439.99

259

Speedometer Button | XTP

415129355

$15.80

272

Ignition Switch

710008400

$78.49

281

Fixation Plate

710002404

$9.39

282

Winch Cables

710004378

$51.99

283

BRACKET - Call your local BRP dealership

710002567

Unavailable

284

Battery Cable Cap

710006729

$7.20

285

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

287

Winch Switch | XT, XTP, XMR, LTD,

710002724

$164.49

290

Tie-Rap Clip

710002896

$4.39

292

Protective Tubing

710003260

$33.99

293

Battery Support

710006561

$50.99
