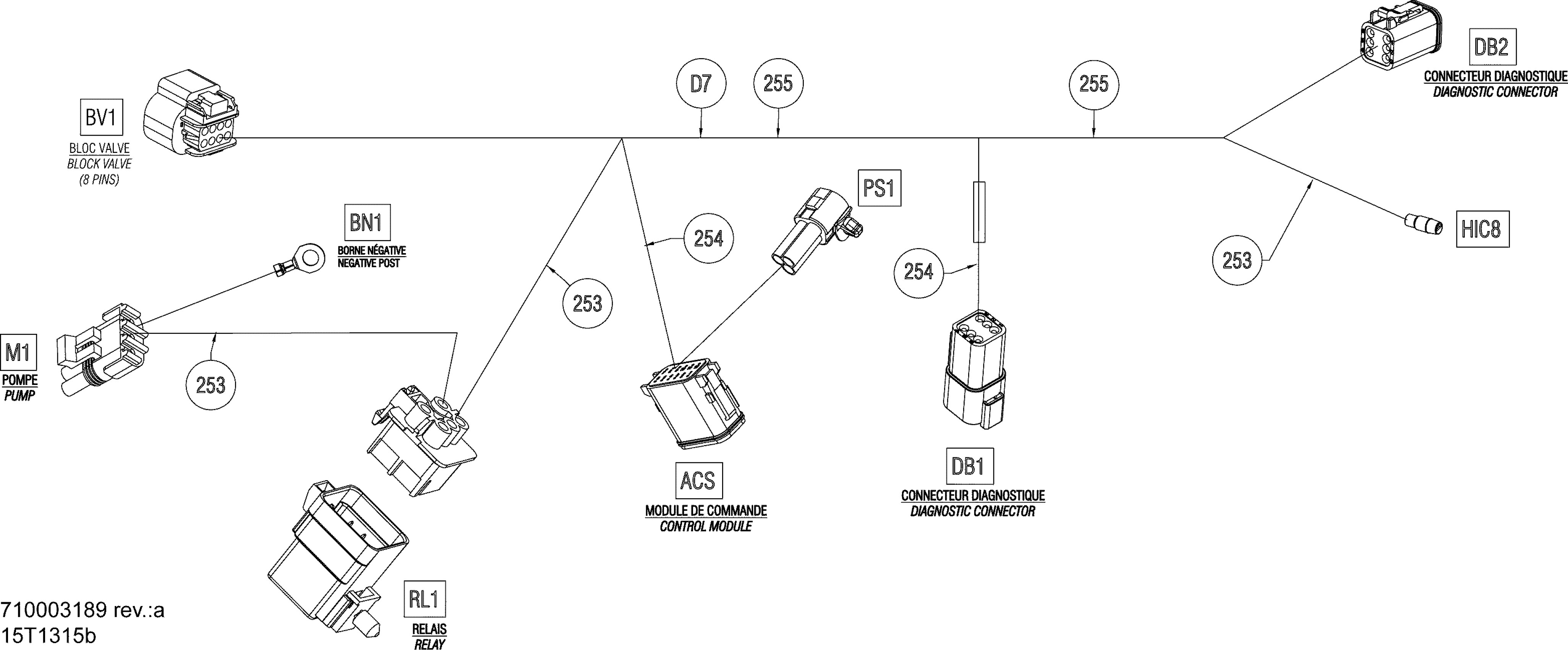

Can-Am Outlander 1000EFI XMR, 2013 10- Electrical Harness Compressor Diagram

#

Description
Price

1

COMPRESSOR HARNESS ASS'Y - Call your local BRP dealership

710003189

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

ACS

Sealing Cap

293000052

$3.19

ACS

Female Terminal

278001665

$4.55

BN1

Open Barrel

278000992

$2.21

BV1

Seal

710001233

$3.19

BV1

Terminal

710001229

$3.19

BV1

Housing

710001928

$16.86

D7

Diode

409012700

$11.12

D8

Diode

409012700

$11.12

D9

Diode

409012700

$11.12

DB1

Female Lock, 6 Circuits

278000735

$3.19

DB1

Male Terminal

710001348

$12.99

DB1

Male Terminal Housing, 6 Circuits

710001539

$19.99

DB2

Male Wedge, 6 Circuits

515175678

$5.39

DB2

Female Terminal

278001665

$4.55

DB2

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

HIC8

Male Terminal

278000230

$4.39

HIC8

Insulated Sheath

278001008

$3.28

M1

Female Terminal

409007300

$0.45

M1

Male Housing, 3 Circuits

278000273

$9.59

M1

Wire Seal

278000218

$4.39

M1

Wire Seal

278000216

$3.19

PS

Male Terminal

409011300

$5.93

PS

Wire Seal

710000402

$4.55

PS

Connector

710000722

$9.95

RL1

Wire Seal

278000218

$4.39

RL1

Wire Seal

278000216

$3.19

RL1

Wire Seal

278001065

$7.69

RL1

RELAY - Call your local BRP dealership

710002996

Unavailable
