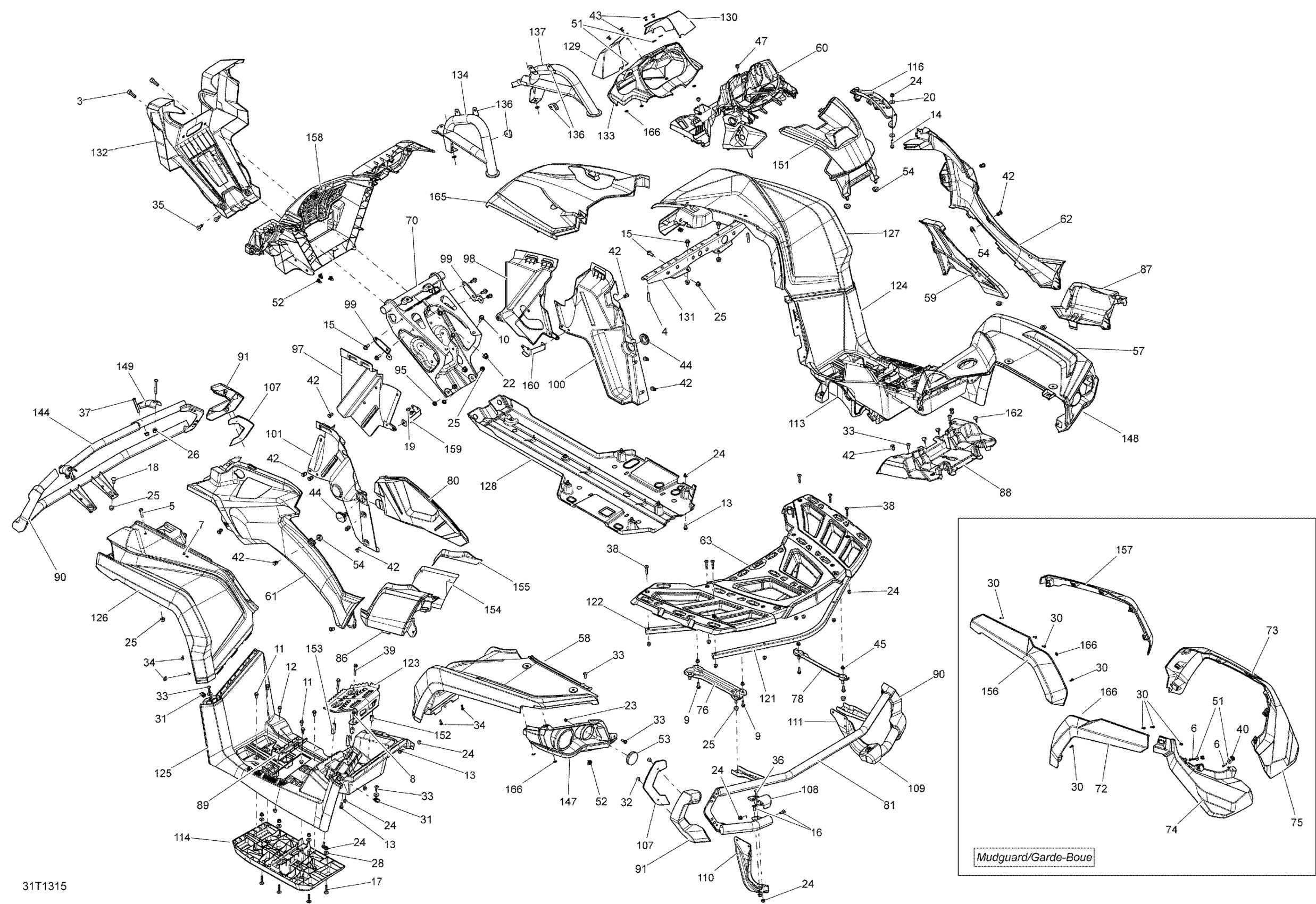

Can-Am Outlander 1000EFI XMR, 2013 09- Body And Accessories Diagram

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

Hex. Cap Screw M8 X 30

207183054

$4.44

Hex. Cap Screw M4 X 25

207342544

$0.90

Hex. Flange Screw, Scotch Grip

207551634

$2.00

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Hex. Flange Screw M6 X 16

207661654

$2.11

Hex. Flange Screw M6 X 20

207662034

$2.11

Hex. Flange Screw M6 X 20

207662084

$1.69

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Screw M8 X 20

207682044

$1.15

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

Carriage Bolt M6 X 35

207763554

$2.11

Carriage Bolt, M8 X 20

207782044

$1.90

Hex. Flange Screw M6 X 10

210261040

$1.48

Flat Washer

224061201

$1.37

Hex. Flange Elastic Nut M10

233201434

$2.09

Flange Elastic Nut M5

233251434

$2.00

Flange Elastic Nut M6

233261434

$4.44

Hex. Flange Elastic Nut M8

233281434

$2.11

Elastic Flange Nut M8

233281464

$1.01

Flat Washer 6 mm

234062410

$0.77

Hex. Screw K40 X 13

241141340

$1.01

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M6 X 20

250000722

$1.68

Torx Screw K50 X 16

250000720

$1.69

Hex Torx Truss M8 X30

250000745

$3.17

Stainless, Torx Screw M6 X 30

250000842

$2.11

Torx Screw M8 X 55

250000535

$3.17

Torx Screw M6 X 35

250000541

$2.11

Hex. Flange Screw M6 X 45

207664536

$2.85

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Tuflok Plastic Rivet

293150230

$1.47

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Rubber Cover

293250242

$6.99

Threaded Insert M6 X 1.0

250100242

Unavailable

Rubber Bumper

293830005

$8.09

Washer

517124300

$0.19

Edge Clip

517302785

$0.88

Red Reflector

705011221

$14.49

Grommet

705003264

$4.09

Black RH Rear Fender Kit | Includes 7 to 7a, Black North America

705005221

$139.99

RH Rear Fender Kit, Black | Includes 7 to 7a, Black

715001818

$139.99

CAMO RH REAR FENDER KIT - Call your local BRP dealership | Includes 7 to 7a, Camo

705005227

Unavailable

RH REAR FENDER KIT, CAMO - Call your local BRP dealership | Int'l

715001835

Unavailable

Black LH Rear Fender Kit | Includes 6 to 6c, Black

715001798

$139.99

CAMO LH REAR FENDER KIT - Call your local BRP dealership

715001800

Unavailable

Engine Cover

705003444

$22.99

Dash Support Kit

715001552

$53.99

Yellow, LH Lateral Panel | Yellow

705003446

$57.99

PANEL_BODY LH B-005 - Call your local BRP dealership | Camo

705005238

Unavailable

Yellow, RH Lateral Panel | Yellow

705009019

$57.99

PANEL_BODY RH B-005 - Call your local BRP dealership | Camo

705009118

Unavailable

Luggage Rack Kit

715001852

$224.99

Front Bumper Support

705016893

$349.99

LH Rear Mudguard

705003918

$14.69

RH Rear Mudguard

705003920

$14.69

LH Rear Mudguard, Part 2

705003921

$14.69

RH Rear Mudguard, Part 2

705003922

$14.69

LH Support

705007277

$30.99

RH Support

705007278

$30.99

Deflector_Body Panel Kit

715007008

$28.99

Black Bumper | XT

705005019

Unavailable

LH Extension Panel

715001897

$27.99

RH Extension Panel

705004348

$26.99

REAR CENTER PANEL KIT - Call your local BRP dealership

715001854

$46.99

LH Footrest

705004352

$30.99

RH Footrest

705005395

$36.99

Cap (Front LH) (Rear RH) | XT

705004409

$7.90

Cap (Front RH) (Rear LH) | XT

705004410

$7.90

Ring

705004497

$5.19

LH Front Inner Fender

705011465

$18.49

RH Front Inner Fender

705011463

$18.49

Lower Fender Support

705004565

$6.89

RH Rear Inner Fender

705011462

$23.99

LH Rear Inner Fender

705013111

$23.99

Bracket Cover | XT

705004987

$4.39

LH Bracket | XT

705005094

$7.19

RH Bracket | XT

705005095

$7.19

LH Rear Bracket | XT

705008164

$37.99

RH Rear Bracket | XT

705008165

$37.99

RH Structural Footboard

705011542

$109.99

LH Structural Footboard

705011540

$119.99

Shifter Gate | 1000 North America, 1000 International

705011544

$26.99

Sectional Bent Tube

705016640

$38.99

Bent Sectional Tube

705016092

$42.99

Footrest

705005890

$63.99

RH Footboard

705005977

$184.99

LH Footboard

705005978

$184.99

Black LH Front Fender Kit

715002302

$309.99

CAMO LH FRONT FENDER KIT - Call your local BRP dealership

715002305

$439.99

Black RH Front Fender Kit

715001826

$204.99

CAMO RH FRONT FENDER KIT - Call your local BRP dealership

715001830

$439.99

Protective Plate Kit

715002374

$64.49

LH Air Deflector

705006134

$26.99

RH Air Deflector

705006135

$24.99

Front Bumper Center Support

705006220

$88.99

Front Guard Plate | North America, International

705006299

$51.99

Gage Support

705006373

$44.99

LH RADIATOR SUPPORT - Call your local BRP dealership

705007878

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

RH Radiator Support

705007879

$248.99

Deep Black, Front Bumper

705014128

$338.99

LH Rear Facia | North America, International

705006643

$15.99

RH Rear Facia | North America, International

705006650

$15.99

Black Upper Bracket

705006691

$49.99

Dash Kit

715006098

$30.99

Coupling Nut, Short

705006818

$9.53

Coupling Nut, Large

705006819

$12.99

Heat Shield

705006870

$5.29

Heat Shield

705006871

$5.29

LH Mud Guard

705006988

$36.99

RH Mud Guard

705006989

$35.99

Fascia

705012822

$119.99

LH Inner Fender Bracket

705007140

$22.49

RH Inner Fender Bracket

705007141

$22.49

Rubber Stopper

708000759

$4.19

Yellow Hood Kit

708301154

$114.99

CAMO HOOD KIT - Call your local BRP dealership

708301155

Unavailable

Push Nut

732610072

$2.19
