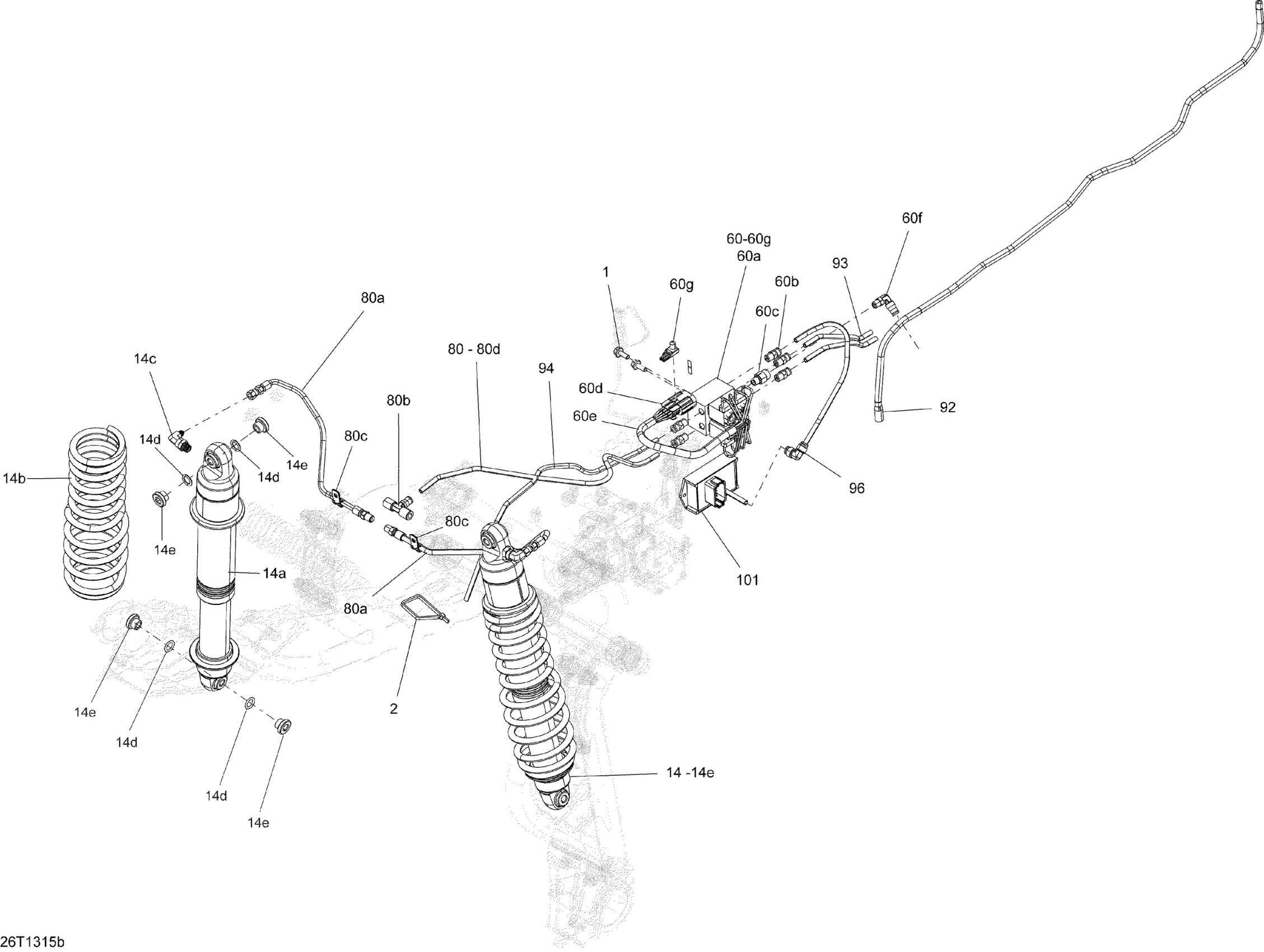

Can-Am Outlander 1000EFI XMR, 2013 08- Rear Suspension XMR Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Tie Wrap 368 mm

293750008

$1.04

14

Not Available As Spare Part - Friction Washer

Unavailable

14a

REAR SHOCK ASS'Y - Call your local BRP dealership | XMR Black

706001202

Unavailable

14b

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706001056

Unavailable

14c

Elbow 90° | XMR

706001200

$49.99

14d

O-Ring Bushing

715900209

$14.75

14e

Interior Bushing | XTP

715900210

$15.82

14b

Black Rear Spring

706002785

$126.99

60

PRESSURE COLLECTOR ASS'Y - Call your local BRP dealership | XMR

706001368

Unavailable

60a

Not Available As Spare Part - Friction Washer

Unavailable

60b

Connector

706000869

$34.99

60c

Check Valve

706000860

$42.99

60d

Housing

710001927

$8.79

60e

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

60f

Elbow 90°

706000928

$27.99

60g

Holder | XMR

710002006

$3.19

80

REAR SHOCK DISTRIBUTOR ASS'Y - Call your local BRP dealership

706001341

Unavailable

80a

Not Available As Spare Part - Friction Washer

Unavailable

80b

T Fitting

706000946

$35.99

80c

Clamp

293650256

$5.49

80d

Not Available As Spare Part - Friction Washer

Unavailable

92

Polyurethane Hose 10000Mm Long

219704410

$56.99

93

Hose 4.32Mm 3000Mm Long

219704415

$55.99

94

Hose 4.32Mm 3000Mm Long

219704415

$55.99

96

Hose Ass'y

706001216

$39.99

101

Module *Module | XMR

710004402

$429.99
