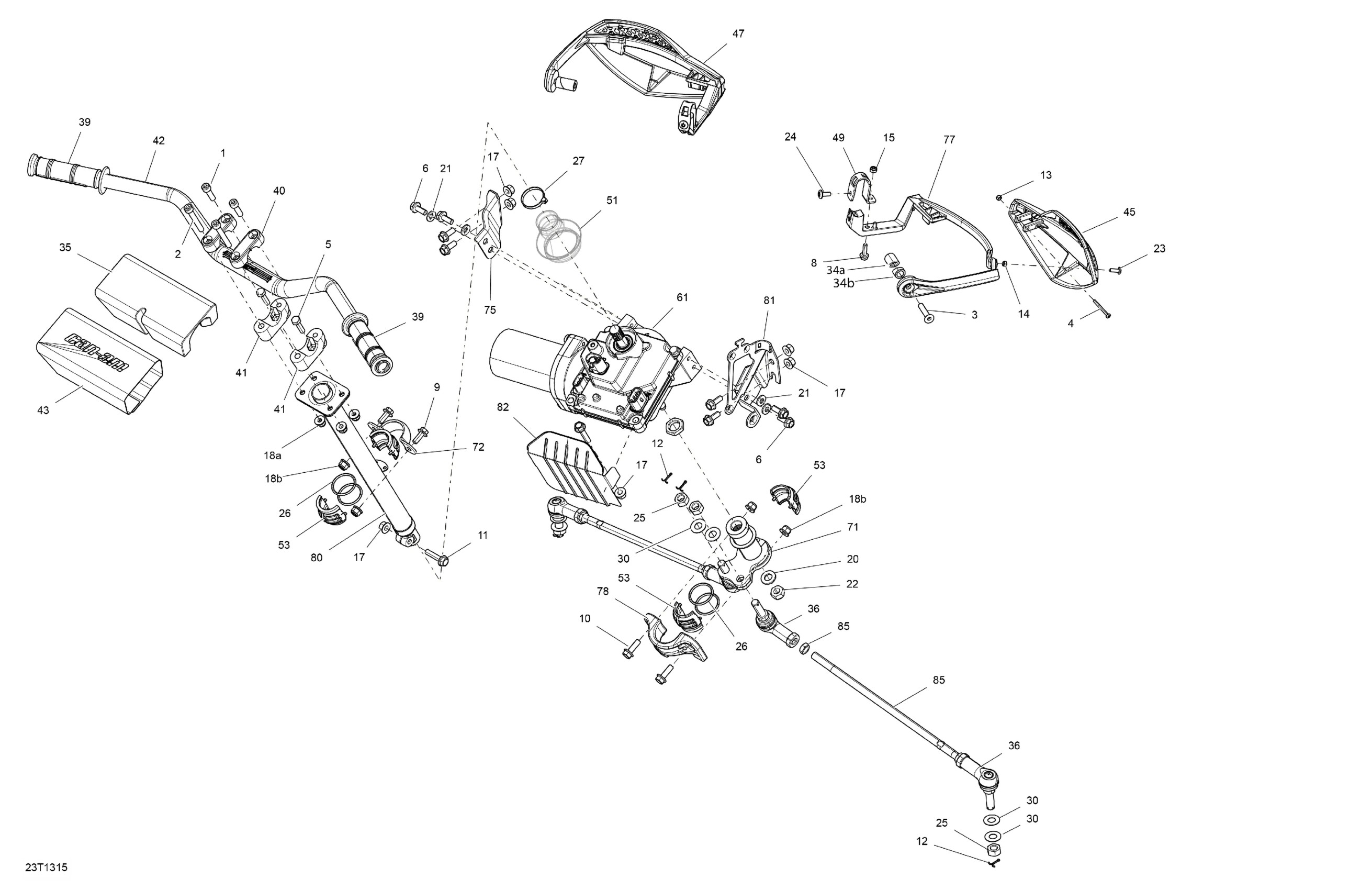

Can-Am Outlander 1000EFI XMR, 2013 07- Steering Diagram

#

Description
Price

1

Socket Screw M8 X 30

205083060

$2.96

2

Socket Head Screw M8 X 60

205086060

$4.12

3

Socket Head Screw | X

205384034

$6.49

4

Socket Head Screw M4 X 40 | X

205444086

$1.69

5

Hex. Screw M8 X 30

207183060

$1.58

6

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

8

Hex. Flange Screw M6 X 20

207662044

$2.00

9

Hex. Flange Screw M8 X 20

207682044

$1.15

10

Hex. Flange Screw M8 X 25

207682544

$1.35

11

Hex. Flange Screw M8 X 35

207683544

$1.69

12

Cotter Pin

211400013

$0.37

13

Elastic Stop Nut M4

232541414

$0.58

14

Hex. Elastic Nut M5 | X

232551600

$1.15

15

Hex. Elastic Stop Nut M6

232561600

$1.15

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18a

Hex. Elastic Flange Nut M8

233281416

$1.48

18b

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Hardened Washer

706200281

$2.85

21

Conical Spring Washer M8

234281474

$1.48

22

Hex. Flange Elastic Nut M12

250000047

$1.90

23

Torx Screw M5 X 14

250000742

$1.47

24

Torx Screw M6 X 16

250000223

$2.11

25

Nut M12

250100099

$2.09

26

O-Ring

293300068

$7.65

27

Tie-Rap 180 mm

414115200

$0.11

30

Hardened Washer

706200281

$2.85

34a

Large Bracket | DS 650 X

709400162

$20.99

34b

Small Bracket | DS 650 X

709400161

$21.99

35

Foam

709400422

$17.49

36

RH Ball Joint

709402302

$36.99

36

LH Ball Joint

709402303

$36.99

39

Handle Grip

709400493

$14.83

40

Support

709400496

$22.49

41

Lower Mounting Clamp

709402750

$25.99

42

Aluminum Handle Bar

709400513

$63.49

43

Cover B-190

709402414

$30.99

45

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

45

Deep Black RH Air Deflector | Camo Model

709401303

$35.99

47

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

47

Deep Black LH Air Deflector | Camo Model

709401304

$35.99

49

Air Deflector Support Kit | X

715001378

$138.49

51

Bellows

709400674

$18.99

53

Spherical Half Bushing

709400783

$7.65

61

Power Steering

709401608

$1,010.49

71

Pitman Kit | Includes 3 to 5

703500785

$159.99

72

Upper Column Attachment

709400827

$1.09

75

Power Steering Module Bracket

709400848

$16.49

77

Air Deflector Support Kit | X

715001378

$138.49

78

Column Attachment

709401428

$38.99

80

Kit Tube-Main.

703501137

$184.99

81

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

82

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

85

Rod-Tie Ass'y | Incl 36

703501037

$110.99
