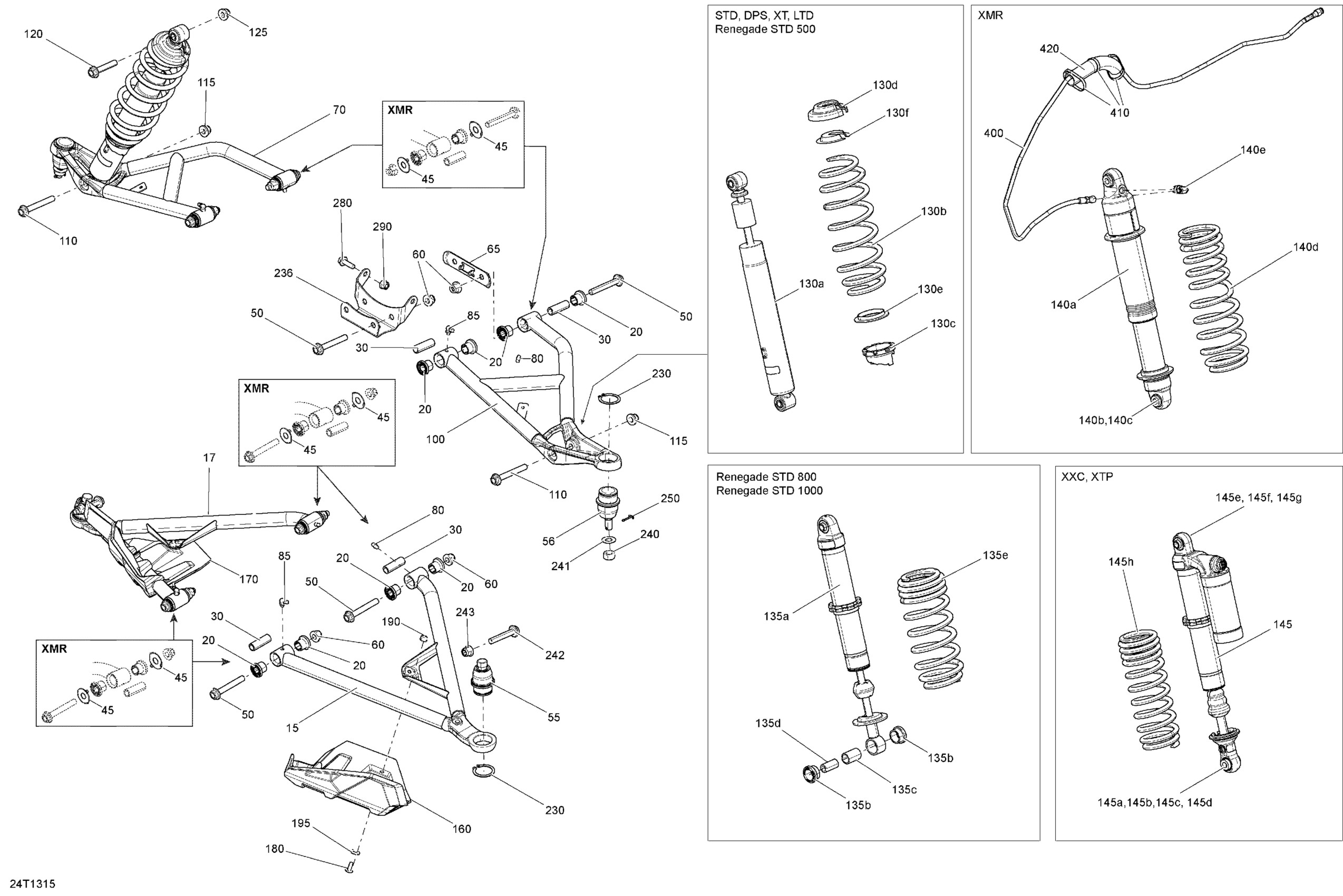

Can-Am Outlander 1000EFI XMR, 2013 07- Front Suspension Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204639

$158.99

17

Black, RH Lower Arm

706202870

$158.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

30

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

45

Wear Plate

706201063

$0.95

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202045

$35.99

56

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Front Suspension Cross Plate

706200998

$5.09

70

Black RH Upper Arm

706201797

$158.99

80

Grease Fitting

408200700

$3.49

85

Grease Fitting 90°

293550056

$1.15

100

Black LH Upper Arm

706201796

$158.99

110

Hex. Flange Screw M10 X 75

250001038

$6.77

115

Hex. Flange Elastic Nut M10

233201436

$2.11

120

Hex. Flange Screw M10 X 55

207605546

$2.11

125

Hex. Flange Elastic Nut M10

233201436

$2.11

130a

Not Available As Spare Parts

XXX

Unavailable

130b

Not Available As Spare Parts

XXX

Unavailable

130c

Not Available As Spare Parts

XXX

Unavailable

130d

Not Available As Spare Parts

XXX

Unavailable

130e

Not Available As Spare Parts

XXX

Unavailable

130f

Not Available As Spare Parts

XXX

Unavailable

135a

Not Available As Spare Parts

XXX

Unavailable

135b

Not Available As Spare Parts

XXX

Unavailable

135c

Not Available As Spare Parts

XXX

Unavailable

135d

Not Available As Spare Parts

XXX

Unavailable

135e

Not Available As Spare Parts

XXX

Unavailable

140a

SHOCK ABSORBER - Call your local BRP dealership | XMR, Includes 140a to 140c

706201509

Unavailable

140b

O-RING BUSHING - Call your local BRP dealership | OUT XTP

715500360

$11.99

140c

Interior Bushing | OUT XTP

715500361

$33.99

140d

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | XMR Black

706201510

Unavailable

140d

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | XMR Camo

706201541

Unavailable

140e

Elbow 90° | XMR

706001200

$49.99

145

Not Available As Spare Parts

XXX

Unavailable

145a

Not Available As Spare Parts

XXX

Unavailable

145b

Not Available As Spare Parts

XXX

Unavailable

145c

Not Available As Spare Parts

XXX

Unavailable

145d

Not Available As Spare Parts

XXX

Unavailable

145e

Not Available As Spare Parts

XXX

Unavailable

145f

Not Available As Spare Parts

XXX

Unavailable

145g

Not Available As Spare Parts

XXX

Unavailable

145h

Not Available As Spare Parts

XXX

Unavailable

160

LH Joint Protector

706202808

$9.90

170

RH Joint Protector

706202809

$9.90

180

Torx Truss Screw M6 X 16

250000721

$1.69

190

Hex. Flange Elastic Nut M6

233261494

$1.58

195

Stainless Steel Flat Washer

234062670

$2.11

230

Circlip

293370035

$2.64

236

Upper Front Holder

705203247

$15.99

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

242

Hex. Flange Screw M10 X 60

207606044

$3.38

243

Hex. Flange Elastic Nut M10

233201434

$2.09

250

Cotter Pin

211400017

$0.33

280

Hex. Flange Screw M8 X 25

207682544

$1.35

290

Hex. Flange Elastic Nut M8

233281414

$1.47

400

HOSE - Call your local BRP dealership | XMR

706201520

Unavailable

410

Tie Wrap 368 mm

293750008

$1.04

420

Not Available As Spare Part - Friction Washer

Unavailable
