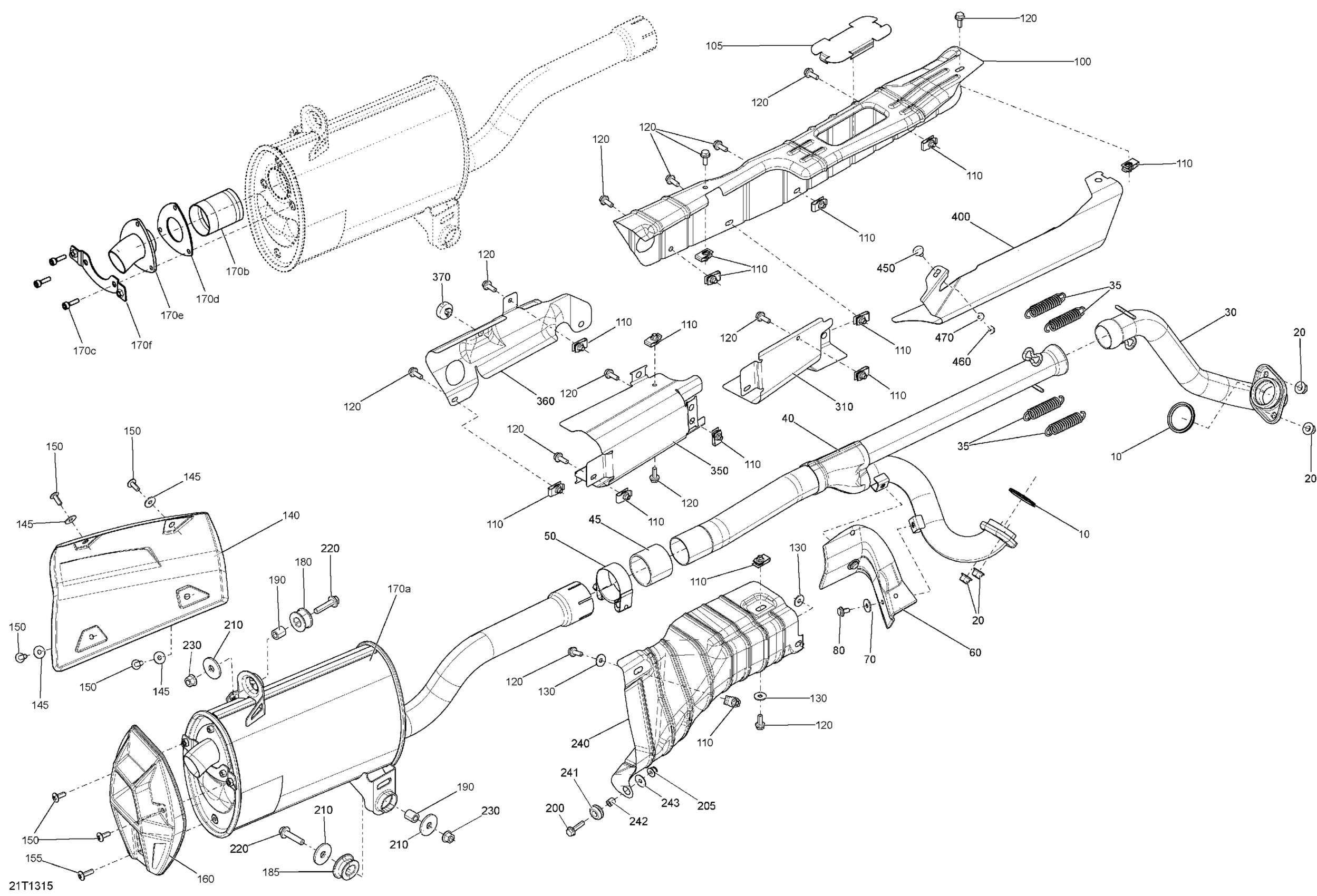

Can-Am Outlander 1000EFI XMR, 2013 01- Exhaust System Diagram

#

Description
Price

10

Gasket

707600317

$11.60

20

Hex. Flange Nut M8

233081416

$1.15

30

Front Head Pipe

707600627

$142.99

35

Spring

415107100

$6.35

40

Rear Head Pipe

707601456

$206.49

45

Pipe Gasket

707601544

$19.49

50

Norma Gear Clamp

293650177

$10.49

60

Pipe Protector

707600932

$15.81

70

Flat Washer

250200082

$0.42

80

Hex. Flange Screw M6 X 12

250000574

$2.11

100

Heat Shield

707603724

$13.99

105

Heat Shield

707600995

$18.99

110

Panel Nut M6 X 1.0

250100198

$2.11

120

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

130

Flat Washer 6 mm

234062410

$0.77

140

Heat Deflector

707600710

$42.99

145

Stainless Steel Flat Washer

234062670

$2.11

150

Torx Screw M6 X 16

250000223

$2.11

155

Stainless Torx Screw M6 X 30

250000634

$2.09

160

Muffler Cap

707600711

Unavailable

170a

Exhaust Muffler | Includes 19a to 19f

703501071

$572.49

170b

Spark Arrestor

707601803

$49.99

170c

Socket Head Screw M6 X 20

205062060

$2.32

170d

Gasket

707601799

$5.99

170e

Muffler End Piece

715900143

$35.99

170f

Support

715900147

$3.29

180

Vibration Damper

707603323

$11.65

185

Rubber

707600448

$7.90

190

Bushing

293900106

$4.55

200

Hex. Flange Screw M6 X 25

207662534

$2.11

205

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

210

Washer

503032900

$3.28

220

Hex. Flange Screw M8 X 35

207683534

$2.11

230

Hex. Flange Nut M8

233081416

$1.15

240

Protector Kit

703500816

$26.99

241

Grommet

709000582

$4.69

242

Bushing

293900105

$7.65

243

Flat Washer

224060201

$1.26

310

HEAT DEFLECTOR - Call your local BRP dealership

707600983

Unavailable

350

HEAT SHIELD - Call your local BRP dealership

707600999

Unavailable

360

Heat Shield

707602604

$19.99

370

Rubber Stopper

708000506

$7.55

400

Heat Shield

707600996

$24.49

450

Carriage Bolt M6 X 12

207761244

$1.90

460

Elastic Stop Nut M6

232561414

$0.55

470

Flat Washer 6 mm

234061410

$1.36
