Description

Price

10a

Radiator

709200286

$476.99

10b

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

20

Fan Ass'y

709200565

$244.99

30a

ASS. SUPPORT - Call your local BRP dealership | Includes 30a to 30f

715002316

Unavailable

30b

Rivet 3/16"

293150102

$0.70

30c

Washer

517124300

$0.19

30d

Rubber Washer 5 mm

250200024

$2.19

30e

Panel Nut M6 X 1.0

250100198

$2.11

30f

Torx Screw M6 X 16

250000223

$2.11

40

Protection Cover Kit

703100399

$88.99

50

FAN SUPPORT - Call your local BRP dealership

709200459

Unavailable

60

Grommet

293720062

$5.39

70

Radiator Pressure Cap

709200207

$25.49

80

Spacer

707000058

$13.49

90

Hex. Flange Screw M6 X 20

207662034

$2.11

100

Bushing

708001129

$11.99

110

Torx Screw M6 X 30

235563054

$4.44

120

Flat Washer

250200040

$1.90

130

Hose

709200299

$8.60

140

T-Fitting

509000219

$15.89

150

Hose

709200392

$17.57

160

Outlet Hose

709200899

$35.99

170

Outlet Hose

709200900

$17.57

180

Outlet Hose

709200429

$34.99

190

Hose

709200891

$14.31

200

Filler Neck

709200422

$18.49

210

Nipple Tube 1"

709200448

$20.99

220

Retainer

275500590

$9.69

230

Gear Clamp

509000162

$7.29

240

Norma Spring Clamp

293650166

$4.44

250

Norma Spring Clamp

293650108

$4.12

260

Torx Screw M6 X 16

250000223

$2.11

270

Spring Clamp

414554800

$0.88

280

Hex. Flange Screw M6 X 25

207662544

$0.64

290

Coolant Tank Ass'y

709200624

$27.99

300

Hose Anchor

709200036

$11.12

310

Cap

709200586

$11.11

320

Thermostat

709200406

$98.99

330

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

340

Panel Nut M6 X 1.0

250100198

$2.11

350

Flange Elastic Nut M6

233261434

$4.44

355

Elastic Stop Nut M6

232561414

$0.55

360

Hex. Flange Elastic Nut M8

233281414

$1.47

370

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

380

Tubing 35 MM 1000MM Long

219704428

$10.99

390

Black Latch Kit | Includes 390 to 400

860200239

$16.88

400

Panel Latch

517303981

$12.99

420

Grommet

293720096

$11.49

430

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

440

Tie-Rap 180 mm

414115200

$0.11

450

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

460

Male Connector

414580700

$4.12

470

Polyurethane Hose 10000Mm Long

219704410

$56.99

480

Grommet

705003264

$4.09

490

Bushing

705202499

$6.67

500

Hex. Flange Screw M6 X 70

207667044

$0.85

510

Flat Washer M6, Stainless

234062600

$0.77

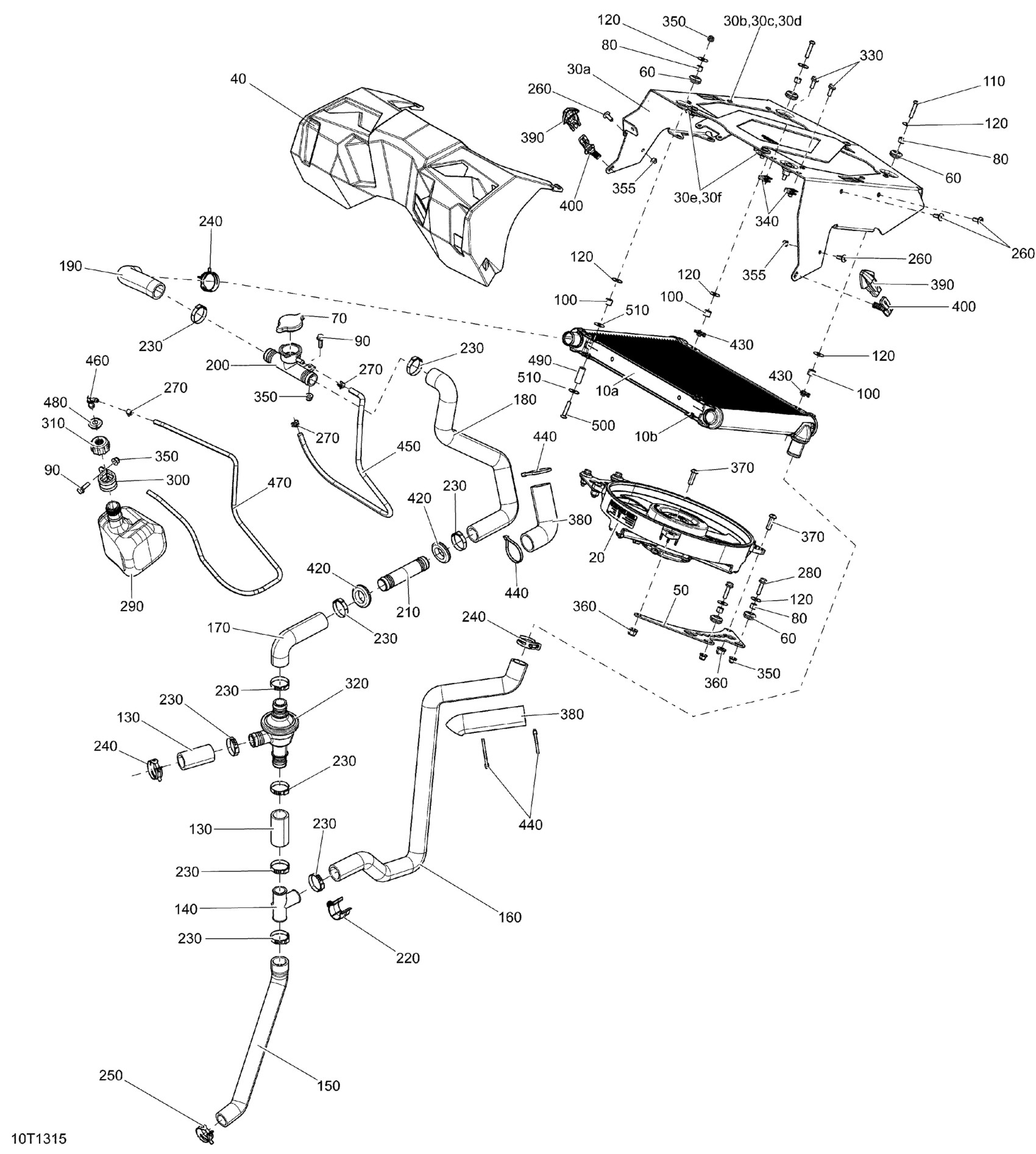

Can-Am Outlander 1000EFI XMR, 2013 01- Cooling System Diagram

Radiator

CLIP NUT M6 X 1 - Call your local BRP dealership

Fan Ass'y

ASS. SUPPORT - Call your local BRP dealership | Includes 30a to 30f

Rivet 3/16"

Washer

Rubber Washer 5 mm

Panel Nut M6 X 1.0

Torx Screw M6 X 16

Protection Cover Kit

FAN SUPPORT - Call your local BRP dealership

Grommet

Radiator Pressure Cap

Spacer

Hex. Flange Screw M6 X 20

Bushing

Torx Screw M6 X 30

Flat Washer

Hose

T-Fitting

Hose

Outlet Hose

Outlet Hose

Outlet Hose

Hose

Filler Neck

Nipple Tube 1"

Retainer

Gear Clamp

Norma Spring Clamp

Norma Spring Clamp

Torx Screw M6 X 16

Spring Clamp

Hex. Flange Screw M6 X 25

Coolant Tank Ass'y

Hose Anchor

Cap

Thermostat

Hex. Flange Screw M6 X 16, Scotch Grip

Panel Nut M6 X 1.0

Flange Elastic Nut M6

Elastic Stop Nut M6

Hex. Flange Elastic Nut M8

Torx Screw M8 X 25, Scotch Grip

Tubing 35 MM 1000MM Long

Black Latch Kit | Includes 390 to 400

Panel Latch

Grommet

CLIP NUT M6 X 1 - Call your local BRP dealership

Tie-Rap 180 mm

Was 415110000 Polyurethane Hose 5.2 mm

Male Connector

Polyurethane Hose 10000Mm Long

Grommet

Bushing

Hex. Flange Screw M6 X 70

Flat Washer M6, Stainless
