Description

Price

1

Black Front Fender Ass'Y

V83005DGF000

$204.99

1

Front Fender Black Ds90X

V83007DGF000

$204.99

2

Rear Fender, Black

V82012DGF01H

$204.99

2

Rear Fender, Black | CAN/INT Model

V82013DGF02H

$204.99

3

Cargo Cover

V82103DGF00HLL

$56.99

4

RH Front Side Panel

V80104DGF010BKLL

$22.99

5

LH Front Side Panel

V80105DGF010BKLL

$22.99

6

RH Rear Side Panel

V80116DGF000BKLL

$17.49

7

LH Rear Side Panel

V80117DGF000BKLL

$19.99

8

Heat Insulation Sheet

V18450DGF000LL

$10.99

9

Round Head Screw

V930000601201LL

$2.19

10

Round Head Screw

V930000601501LL

$2.19

11

Spring Nut

V9034506000KLL

$8.32

12

Waterproof Strip

V81146DGF020

$4.14

13

SKID PLATE, YELLOW - Call your local BRP dealership

V82113DGF01H

Unavailable

14

Elastic Stop Nut M6

232561414

$0.55

15

Cargo Cover Hinge

V50262DGF030LL

$18.49

16

Tapping Screw

V9309304012LL

$2.19

17

Hex. Flange Screw M6 X 12

207661244

$2.11

18

Round Haed Bolt M6 X 35

V9300006035

$3.29

19

Round Head Bolt M6 X 20

V9300006020

$2.19

20

RH Cover | Black Model

V80118DGF00BK

$47.99

21

Couvercle*Left Cover | Black Model

V80119DGF01BK

$61.99

22

Bracket | Black Model

V50302DGF000

$15.99

23

Rubber Cushion | Black Model

V15235DGF030

Unavailable

24

Round Head Bolt M6 X 20

V9300006020

$2.19

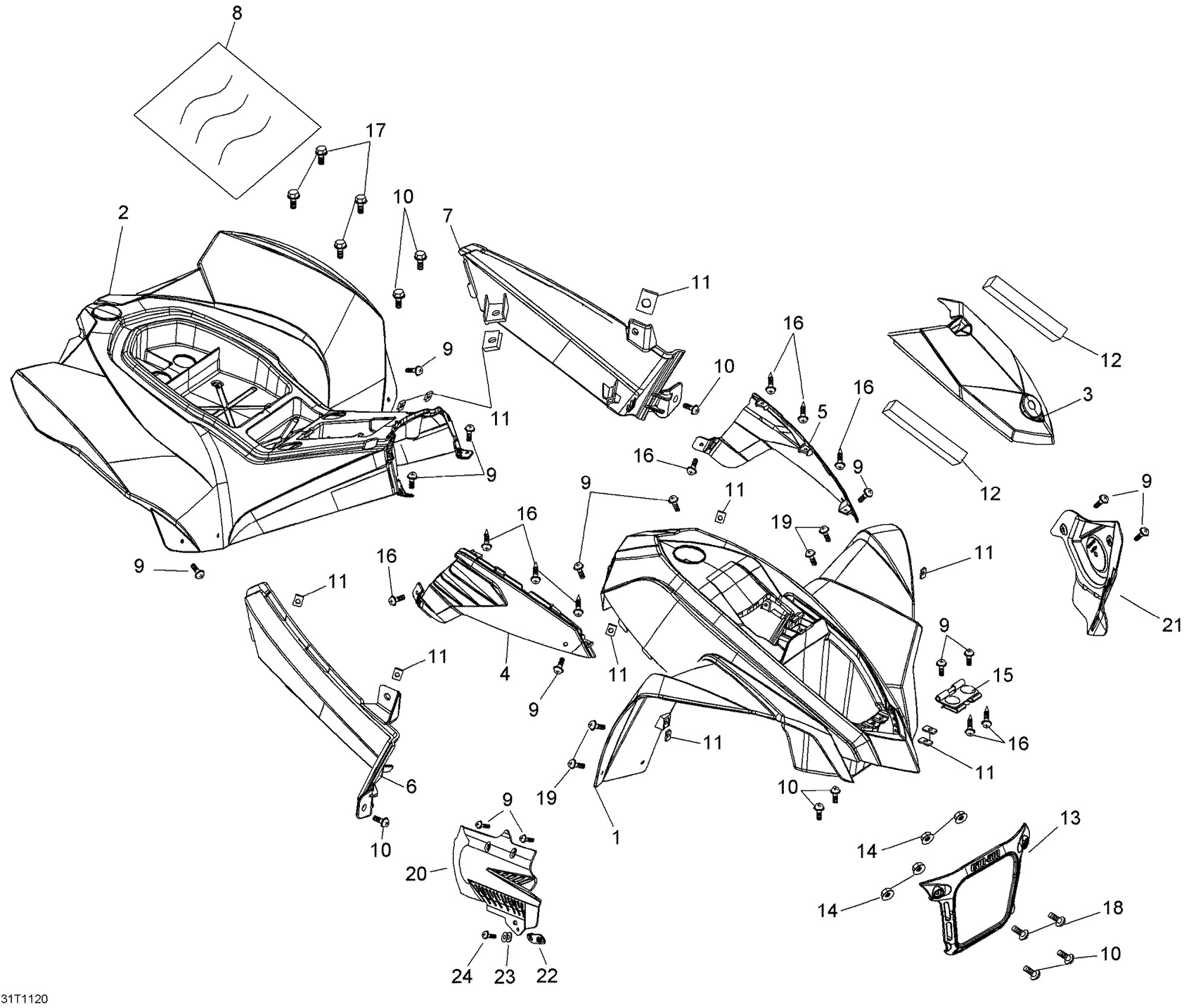

Can-Am DS 90 X, 2013 09- Body And Accessories Diagram

Black Front Fender Ass'Y

Front Fender Black Ds90X

Rear Fender, Black

Rear Fender, Black | CAN/INT Model

Cargo Cover

RH Front Side Panel

LH Front Side Panel

RH Rear Side Panel

LH Rear Side Panel

Heat Insulation Sheet

Round Head Screw

Round Head Screw

Spring Nut

Waterproof Strip

SKID PLATE, YELLOW - Call your local BRP dealership

Elastic Stop Nut M6

Cargo Cover Hinge

Tapping Screw

Hex. Flange Screw M6 X 12

Round Haed Bolt M6 X 35

Round Head Bolt M6 X 20

RH Cover | Black Model

Couvercle*Left Cover | Black Model

Bracket | Black Model

Rubber Cushion | Black Model

Round Head Bolt M6 X 20
