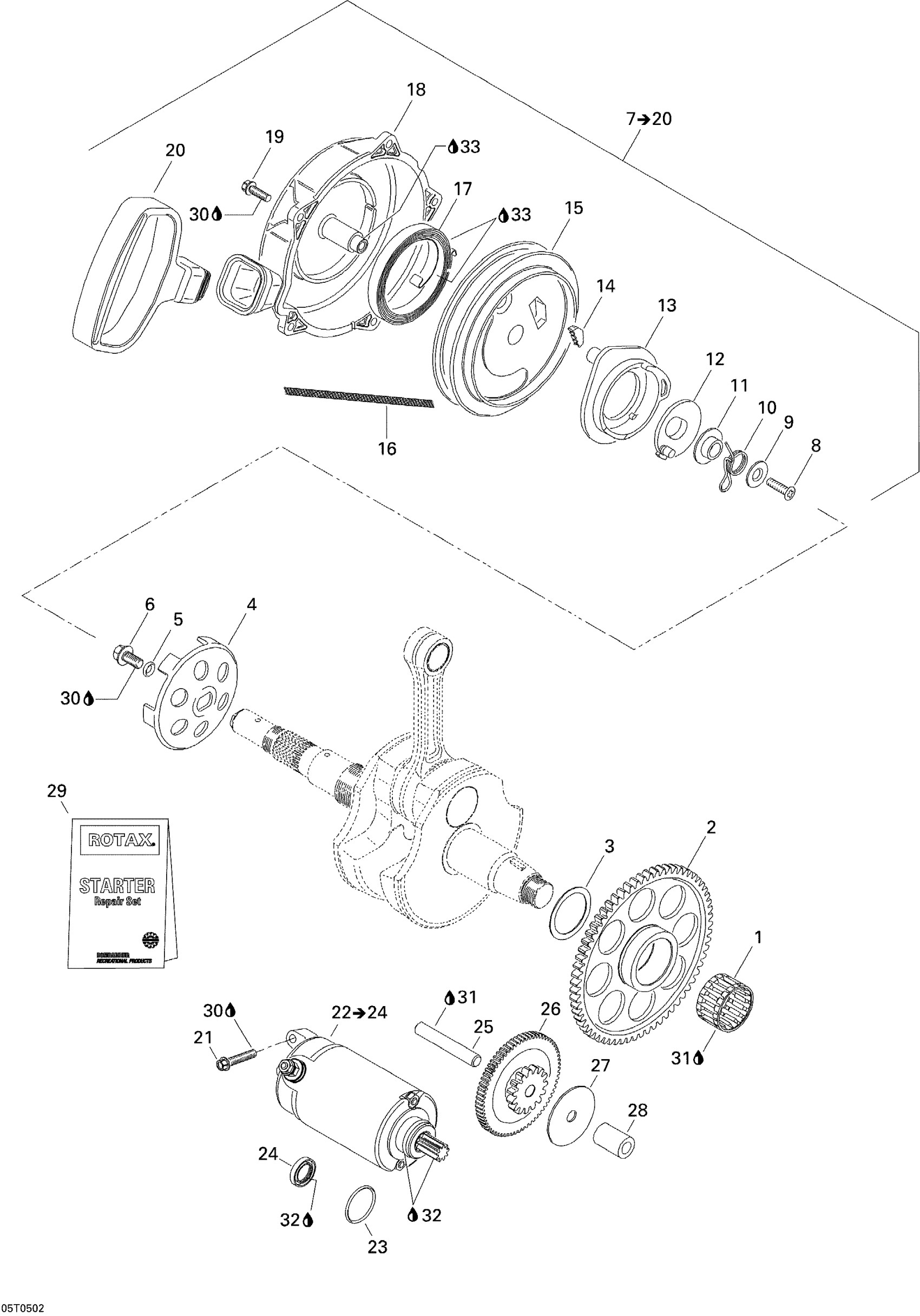

Can-Am Traxter 5 Speed, 2005 04- Rewind Starter and Electrical Starter Diagram

#

Description
Price

1

NEEDLE CAGE - Call your local BRP dealership

420632190

Unavailable

2

Ring Gear 65 Teeth

420634941

Unavailable

3

THRUST WASHER - Call your local BRP dealership

420244290

Unavailable

4

Starting Pulley

420852501

$29.49

5

O-Ring

420650710

Unavailable

6

HEX. FLANGED SCREW M8 X 20 - Call your local BRP dealership

420241720

Unavailable

7

Rewind Starter Ass'y | Includes 7 to 20

420296150

Unavailable

8

PLASTITE SCREW M6 X 20 - Call your local BRP dealership

420241730

Unavailable

9

Flat Washer

420244320

$7.73

10

Locking Spring

420938989

$20.49

11

STAGE SLEEVE - Call your local BRP dealership

420847927

Unavailable

12

Lock Pawl

420852306

$17.05

13

Pawl

420852299

$24.99

14

Key Clamp

420852070

$4.23

15

Rope Sheave

420852283

$62.49

16

Was 412500100 Rope-Starter

219704403

$158.99

17

Rewind Spring

420939115

$30.49

18

Starter Rope Housing

420610930

$58.49

19

HEX. FLANGED SCREW M6 X 20 - Call your local BRP dealership

420241861

Unavailable

20

STARTING GRIP - Call your local BRP dealership

420852515

Unavailable

21

HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership

420241941

Unavailable

22

ELECTRIC STARTER ASS'Y - Call your local BRP dealership | Includes 22 to 24

420296125

Unavailable

23

O-Ring

420250140

$8.57

24

Oil Seal

420250130

$17.59

25

Needle Pin

420229475

$14.83

26

DOUBLE GEAR 15/67 TEETH - Call your local BRP dealership

420634970

Unavailable

27

THRUST WASHER - Call your local BRP dealership

420227620

Unavailable

28

SPACER - Call your local BRP dealership

420847485

Unavailable

29

BRUSH KIT - Call your local BRP dealership

420266295

Unavailable

30

Loctite 243, 10 ml

293800060

$21.49

31

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

32

Petamo Grease, GHY133N, 400 g

420899271

$67.99

33

Molykote PG 54, 10 g

420899763

$21.99
