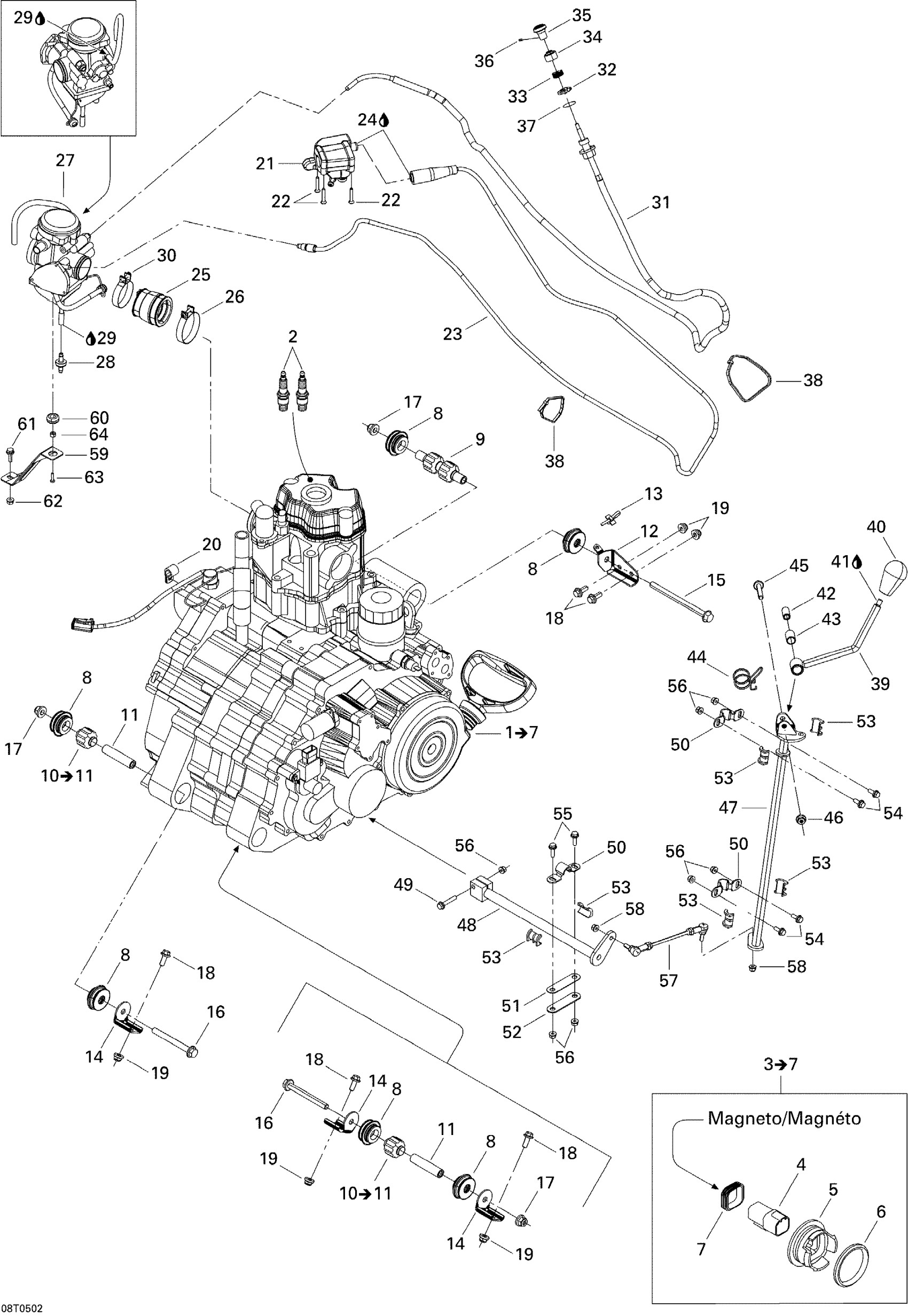

Can-Am Traxter 5 Speed, 2005 01- Engine Support Diagram

#

Description
Price

1

Rotax 4 Strokes Engine «511» | Includes 1 to 7

707000041

Unavailable

2

Spark Plug, NGK/DR8EA

707000008

$4.23

3

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

4

Male Terminal Housing, 6 Circuits

710001539

$19.99

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Gasket

293300033

Unavailable

7

Gasket

293200055`

Unavailable

8

Anti-Vibration Mount

707000094

Unavailable

9

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

10

Support Bushing | Includes 10 to 11

707000030

Unavailable

11

RH LOWER BUSHING - Call your local BRP dealership

707000004

Unavailable

12

Front Engine Bracket, Black

707000082

Unavailable

13

Tie-Rap 173 mm

293750009

$1.04

14

Engine Bracket

705200197

Unavailable

15

Hex. Flange Screw M10 X 140

230604044

$5.29

16

HEX. FLANGED SCREW M10 X 95 - Call your local BRP dealership

207609544

Unavailable

17

Hex. Flange Elastic Nut M10

233201414

$1.58

18

Hex. Flange Screw M8 X 20

207682044

$1.15

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Hose Retainer 13 mm

705600232

$11.11

21

THROTTLE HANDLE - Call your local BRP dealership | 2X4

707000370

Unavailable

22

Socket Head Screw M5 X 25

205052588

$1.90

23

THROTTLE CABLE - Call your local BRP dealership

707000313

Unavailable

24

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

25

CARBURATOR ADAPTOR - Call your local BRP dealership

707000247

Unavailable

26

Gemi Clamp

293650157

Unavailable

27

Carburator

707000363

Unavailable

28

Check Valve

275500398

$10.99

29

Glue Tube, Loctite 454, 20 G

413708300

$60.99

30

Gemi Clamp

293650156

Unavailable

31

CHOKE CABLE - Call your local BRP dealership

707000357

Unavailable

32

D SHAPE WASHER - Call your local BRP dealership

707000067

Unavailable

33

HOLDER CAP - Call your local BRP dealership

707000087

Unavailable

34

Rubber Cap

707000088

Unavailable

35

BUTTON - Call your local BRP dealership

707000089

Unavailable

36

PHILLIPS SCREW M3 X 5 - Call your local BRP dealership

250000108

Unavailable

37

O-RING - Call your local BRP dealership

293300075

Unavailable

38

Tie-Rap 180 mm

414115200

$0.11

39

LEVER ASS'Y - Call your local BRP dealership

707000010

Unavailable

40

LEVER BUTTON - Call your local BRP dealership

705500022

Unavailable

41

Loctite 243, 10 ml

293800060

$21.49

42

BUSHING - Call your local BRP dealership

705500150

Unavailable

43

Adjuster Bushing

705500193

Unavailable

44

LEVER SPRING - Call your local BRP dealership

705500024

Unavailable

45

Hex. Flange Screw M8 X 50

207685044

$1.69

46

Hex. Flange Elastic Nut M8

233281414

$1.47

47

Upper Tube, Black

705500358

Unavailable

48

Lower Tube

705500135

Unavailable

49

Hex. Flange Screw M6 X 35

207663544

$0.90

50

RETAINER CLAMP - Call your local BRP dealership

705500041

Unavailable

51

Shim 1.0 mm

707000080

Unavailable

52

Shim 2.0 mm

707000081

Unavailable

53

Half Ring

705500033

$8.29

54

Hex. Flange Screw M6 X 16

207661644

$0.74

55

Hex. Flange Screw M6 X 20

207662044

$2.00

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

57

Tie Rod Ass'y

707000068

Unavailable

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

59

Carburator Support

707200159

Unavailable

60

Grommet

709000582

$4.69

61

Hex. Flange Screw M6 X 20

207662044

$2.00

62

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

63

Hex. Screw M4 X 16, Scotch Grip

207341644

Unavailable

64

Spacer

707000181

Unavailable
