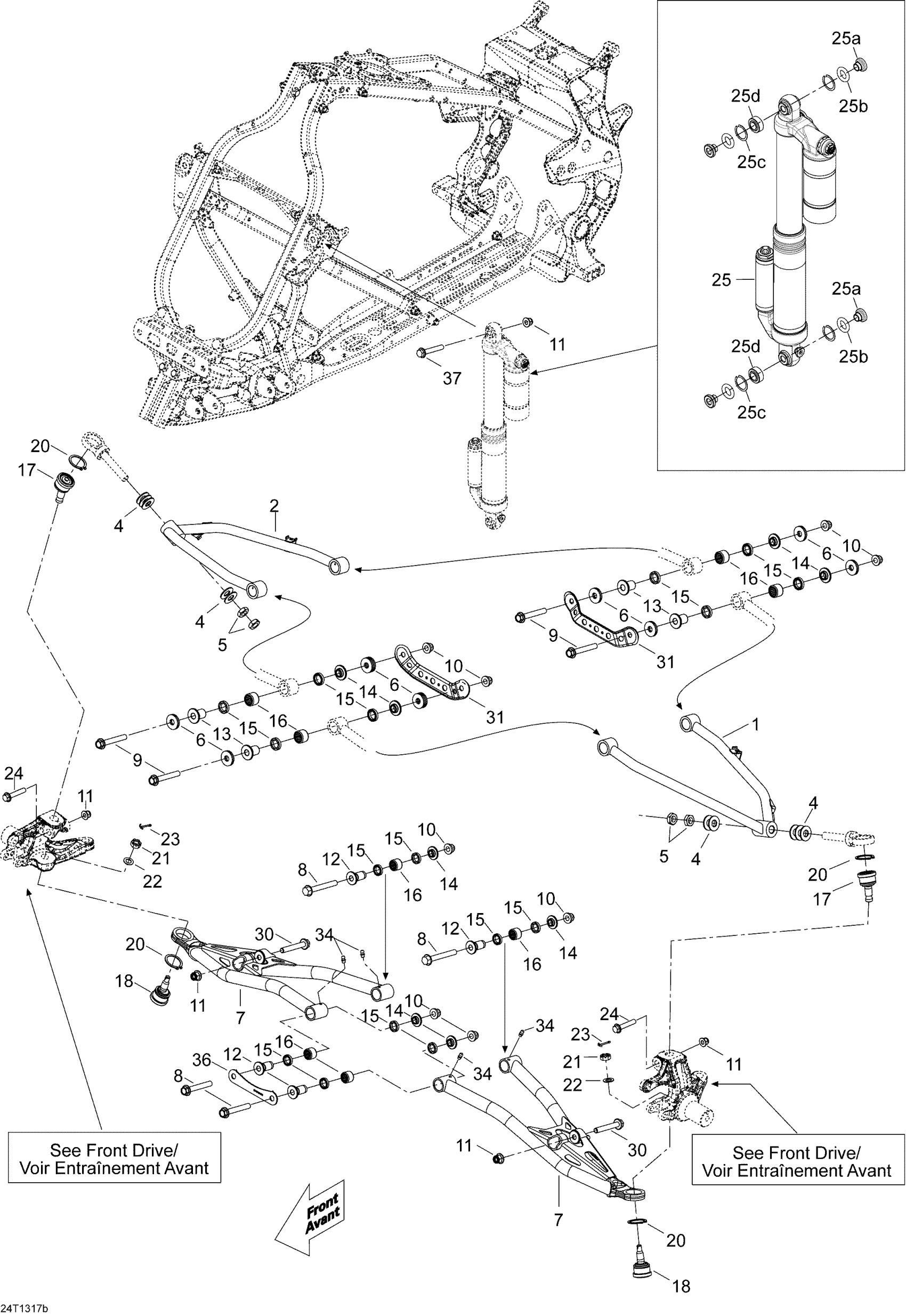

Can-Am DS 450EFI Xmx, 2013 07- Front Suspension Xmx Diagram

#

Description
Price

1

LH UPPER ARM - Call your local BRP dealership

706201128

Unavailable

2

RH UPPER ARM - Call your local BRP dealership

706201134

Unavailable

4

FLAT WASHER - Call your local BRP dealership

250200079

Unavailable

5

Hex. Jam Nut M14

232170411

$1.48

6

Flat Washer M10 | 4X4

250200014

$1.49

7

LOWER ARM - Call your local BRP dealership

706201398

Unavailable

8

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207607036

Unavailable

9

Hex. Flange Screw M10 X 75

207607546

$6.59

10

Hex. Flange Elastic Nut M10

233201436

$2.11

11

Hex. Flange Elastic Nut M10

233201434

$2.09

12

INNER BUSHING - Call your local BRP dealership

706200890

Unavailable

13

Inner Bushing

706200888

$17.08

14

INNER BUSHING - Call your local BRP dealership

706200889

Unavailable

15

SEAL - Call your local BRP dealership

293200120

Unavailable

16

Needle Bearing

293350064

$23.49

17

UPPER BALL JOINT - Call your local BRP dealership

706200462

Unavailable

18

LOWER BALL JOINT - Call your local BRP dealership

706200461

Unavailable

20

Circlip 32 mm

293370009

$1.39

21

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

22

Flat Washer 10 mm

234001410

$1.26

23

Cotter Pin

250400035

$2.11

24

Hex. Flange Screw

207605534

$2.11

25

RH FRONT SHOCK - Call your local BRP dealership | Includes 25 to 26

706201591

$769.99

25

LH FRONT SHOCK - Call your local BRP dealership

706201592

Unavailable

25a

INNER BUSHING - Call your local BRP dealership

715900211

Unavailable

25b

O-Ring Bushing

715900209

$14.75

25c

Retaining Ring

715900252

$12.49

25d

Spherical Bearing

715900251

$82.99

30

Hex. Flange Screw

207605534

$2.11

31

FRONT SUSPENSION UPPER PLATE - Call your local BRP dealership

706200532

Unavailable

34

Grease Fitting

250000315

$5.82

36

Front Suspension Lower Plate

706200722

Unavailable

37

HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership

207606534

Unavailable
