Description

Price

1

Clutch Cover | Includes 1 to 2

420611666

$211.99

2

Plug Screw

420941611

$12.18

3

Oil Seal

420250455

$17.38

4

Gasket

420430995

$26.49

5

Torx Flange Screw M6 X 25

420641238

$3.27

6

Seal Washer

420230415

$1.79

7

Ball 12 mm

420232150

$5.29

8

Clutch Release Cam

420259325

$33.99

9

Adjustment Screw M8 X 19.5

420240310

$12.18

10

Hex. Nut M8

420942674

$6.08

11

Thrust Washer

420227945

$4.01

12

SPRING - Call your local BRP dealership

420239907

Unavailable

13

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

14

Clutch Release Cover

420210966

$89.99

15

Thread Sleeve M8

420629010

$18.79

16

Gasket

420431432

$25.49

17

Torx Flange Screw M6 X 25

420641238

$3.27

18

Torx Flange Screw M6 X 55

420440702

$3.06

19

O-Ring

420250890

$3.06

20

PLUG SCREW M18 - Call your local BRP dealership

420241800

Unavailable

21

Drive Pin 5 X 10

420929650

$1.68

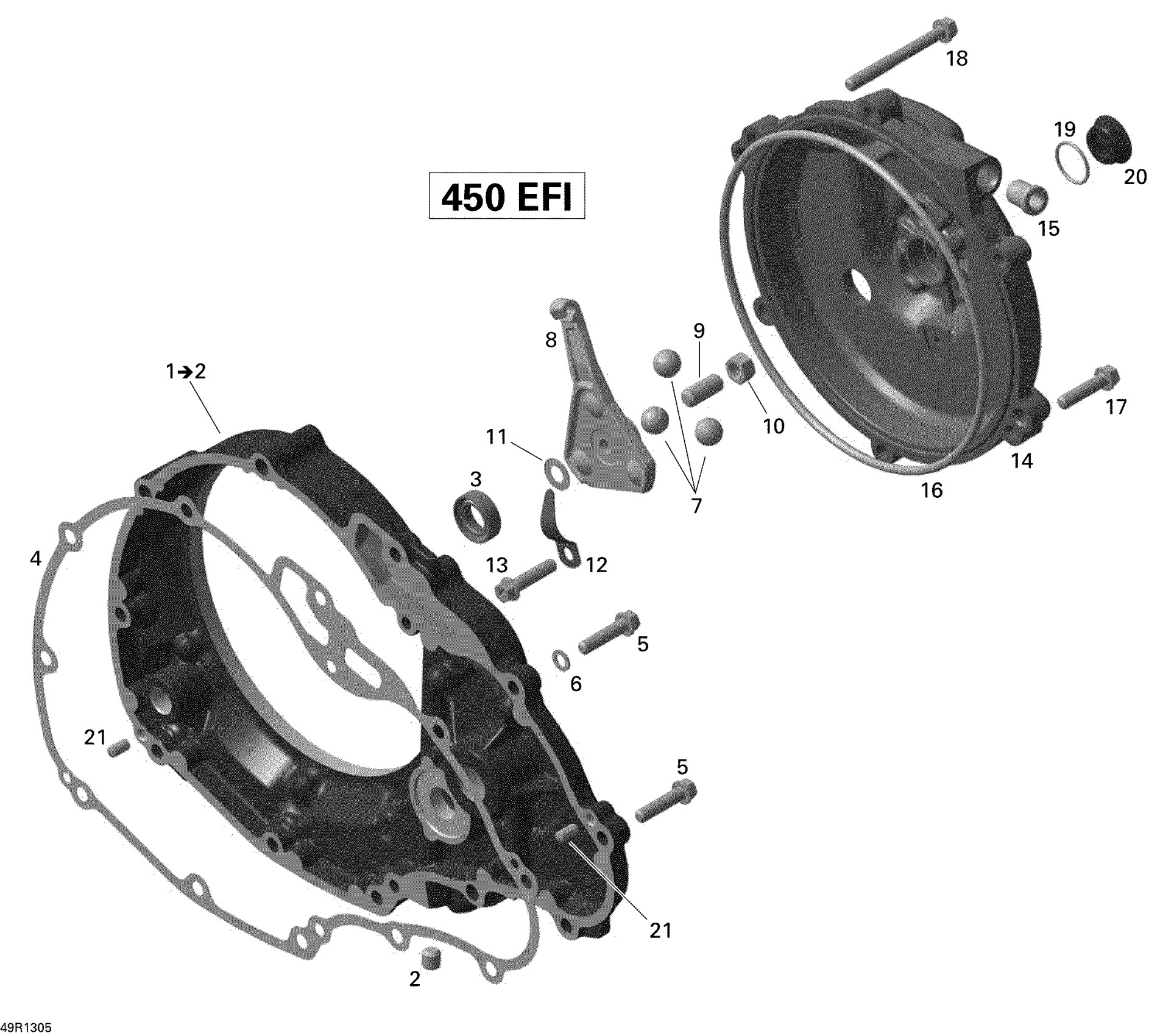

Can-Am DS 450EFI Xmx, 2013 01- Clutch Cover Diagram

Clutch Cover | Includes 1 to 2

Plug Screw

Oil Seal

Gasket

Torx Flange Screw M6 X 25

Seal Washer

Ball 12 mm

Clutch Release Cam

Adjustment Screw M8 X 19.5

Hex. Nut M8

Thrust Washer

SPRING - Call your local BRP dealership

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

Clutch Release Cover

Thread Sleeve M8

Gasket

Torx Flange Screw M6 X 25

Torx Flange Screw M6 X 55

O-Ring

PLUG SCREW M18 - Call your local BRP dealership

Drive Pin 5 X 10
