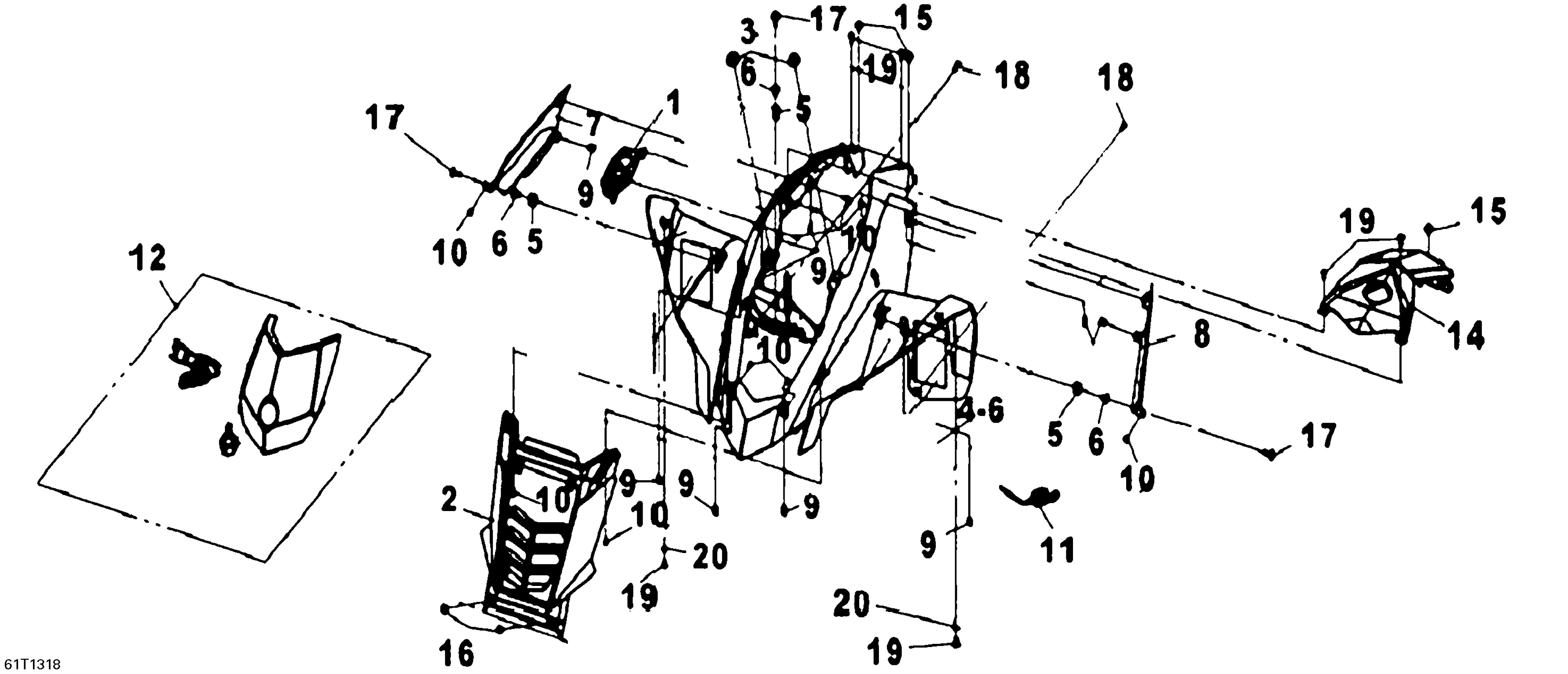

Can-Am DS 250 NA, CE & INT, 2013 09- Front Fender Diagram

#

Description
Price

1

Shift Lever Cover

S46220RCA000

$6.49

2

Radiator Grille

S50611RCA000

$17.05

3

Grommet

S61105RCA000

$4.29

4

Yellow Front Fender

S6110GRCCE00ZY

$204.99

4a

Front Decal

S87131RCAA00

$14.49

4b

LH FRONT DECAL B - Call your local BRP dealership

S87136RCAA00T2

$16.49

4c

RH FRONT DECAL B - Call your local BRP dealership

S87137RCAA00T2

$22.49

4d

Warning Decal A

S87501RCB900

Unavailable

4e

Warning Decal B

S87502RCA000

Unavailable

4f

Shifter Label

S87505RCAA00

Unavailable

5

Rubber Washer

S80103X01000

$4.14

6

Fender Collar

S80104X01000

$4.29

7

Fr.Rh.Side Fender

S83520RCA000JF

$21.99

8

LH Pannel

S83620RCA000JF

$21.99

9

Clip Nut

S90302V02000

$0.53

10

Tapping Screw M4 X 12

S9390332280

$0.42

11

DC Power Outlet, 12 Volts

S38600RA1000

$30.49

12

Radiator Cover Ass'y

S6430GRCAA00JF

$43.49

12a

Decal Sd250

S87130RCAA00T2

$11.99

12b

BRP Logo

S87500RCA000

$36.99

14

Fuel Tank Cover

S43020RCA000

$23.99

15

Washer Bolt

S934040601407

$0.42

16

Special Screw

S90164RCA000

$0.97

17

Washer Bolt

S934040602507

$0.42

18

Screw Washer

S90119G03900

$2.19

19

Tapping Screw M5 X 12

S9390335280

$0.42

20

Spring Washer 5 mm

S9411105800

$4.14
