Description

Price

1

Tool Kit

704700162

$44.99

2

Flag Support | Except Europe

705005837

$7.89

3

Kit Rear Bumper

715001894

$248.99

4

Rear Tube

705004981

$28.99

5

Threaded Insert M6 X 1.0

250100242

Unavailable

6

Torx Screw M6 X 20

250000712

$2.11

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

LH Front Bracket

705004977

$34.99

9

RH Front Bracket

705004978

$34.99

10

Torx Truss Screw M8 X 50

250000761

$7.51

11

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

12

Hex. Flange Screw M8 X 50

207685044

$1.69

13

Flat Washer 6 mm

234062410

$0.77

14

Hex. Screw M6 X 60

207066044

$0.67

15

Hex. Screw M6 X 60

207066044

$0.67

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

Plate Support | Europe

708300553

$24.49

19

Hex. Flange Elastic Nut M5

233251414

$1.04

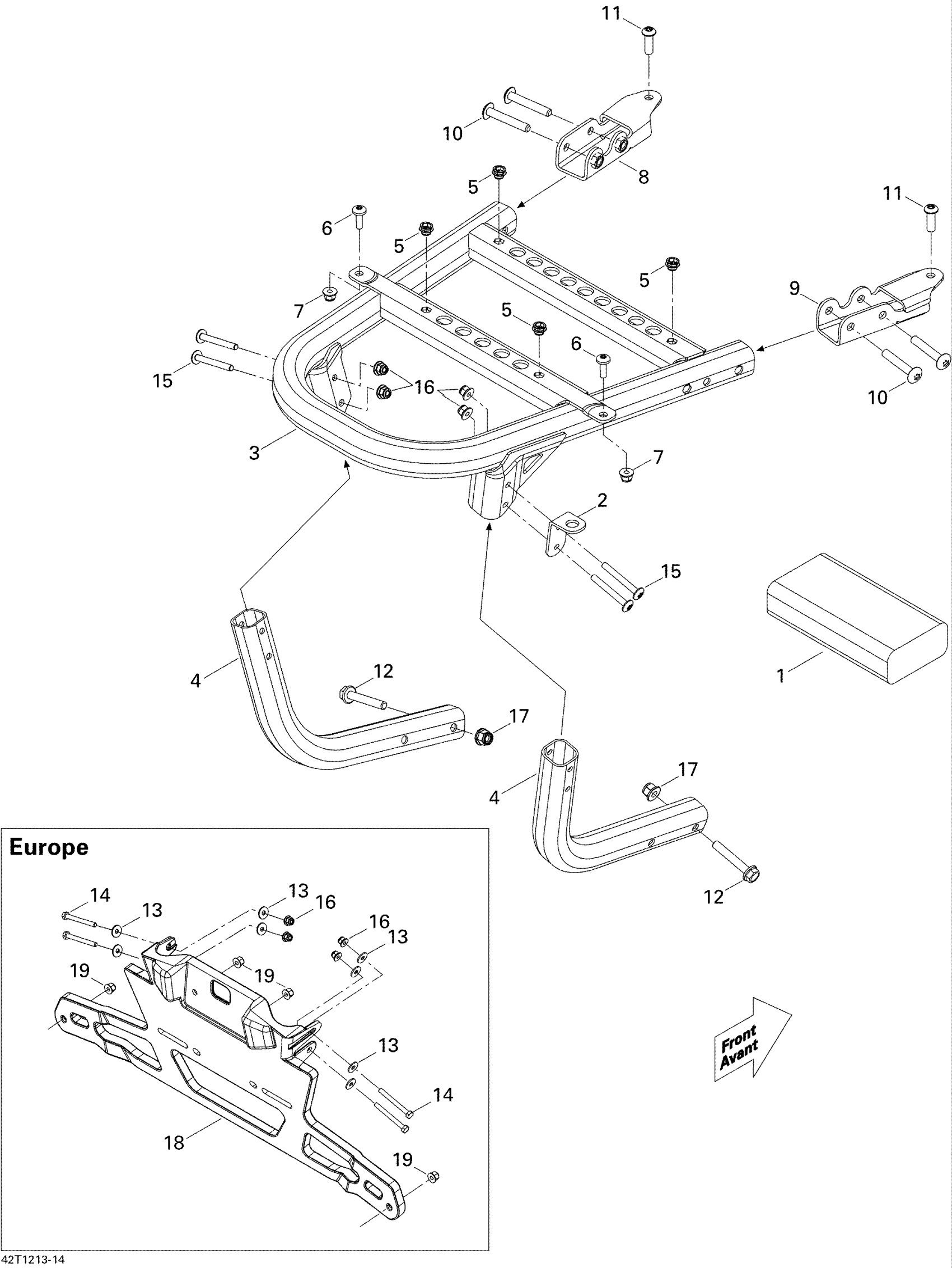

Can-Am Renegade STD, XXC, 800R EFI, 2012 09- Rear Cargo Box Diagram

Tool Kit

Flag Support | Except Europe

Kit Rear Bumper

Rear Tube

Threaded Insert M6 X 1.0

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

LH Front Bracket

RH Front Bracket

Torx Truss Screw M8 X 50

Torx Screw M8 X 25, Scotch Grip

Hex. Flange Screw M8 X 50

Flat Washer 6 mm

Hex. Screw M6 X 60

Hex. Screw M6 X 60

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Elastic Nut M8

Plate Support | Europe

Hex. Flange Elastic Nut M5
