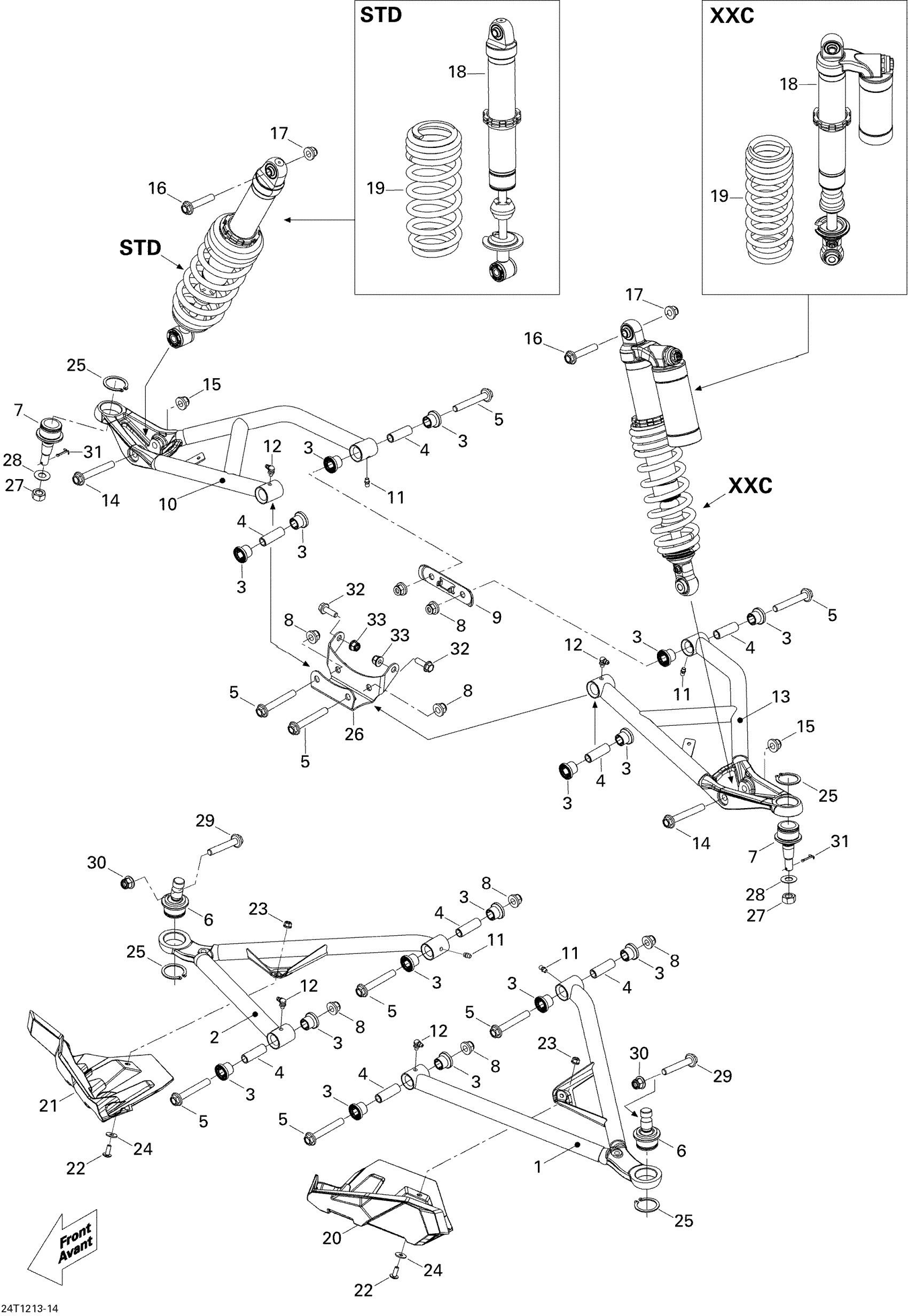

Can-Am Renegade STD, XXC, 800R EFI, 2012 07- Front Suspension Diagram

#

Description
Price

1

LH Lower Suspension Arm

706204639

$158.99

2

Black, RH Lower Arm

706202870

$158.99

3

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

4

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

5

Hex. Flange Screw M10 X 70

207607046

$2.96

6

Ball Joint

706202045

$35.99

7

Ball Joint

706202044

$35.99

8

Hex. Flange Elastic Nut M10

233201436

$2.11

9

Front Suspension Cross Plate

706200998

$5.09

10

Black RH Upper Arm

706201797

$158.99

11

Grease Fitting

408200700

$3.49

12

Grease Fitting 90°

293550056

$1.15

13

Black LH Upper Arm

706201796

$158.99

14

Hex. Flange Screw M10 X 75

250001038

$6.77

15

Hex. Flange Elastic Nut M10

233201436

$2.11

16

Hex. Flange Screw M10 X 55

207605546

$2.11

17

Hex. Flange Elastic Nut M10

233201436

$2.11

18

Shock Absorber | STD

706201267

$349.99

18

SHOCK ABSORBER - Call your local BRP dealership | XXC

706201257

Unavailable

19

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | STD

706201268

Unavailable

19

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | XXC

706201258

Unavailable

20

LH Joint Protector

706202808

$9.90

21

RH Joint Protector

706202809

$9.90

22

Torx Truss Screw M6 X 16

250000721

$1.69

23

Hex. Flange Elastic Nut M6

233261494

$1.58

24

Stainless Steel Flat Washer

234062670

$2.11

25

Circlip

293370035

$2.64

26

Upper Front Holder

705203247

$15.99

27

Nut M12

250100099

$2.09

28

Hardened Washer

706200281

$2.85

29

Hex. Flange Screw M10 X 60

207606044

$3.38

30

Hex. Flange Elastic Nut M10

233201434

$2.09

31

Cotter Pin

211400017

$0.33

32

Hex. Flange Screw M8 X 25

207682544

$1.35

33

Hex. Flange Elastic Nut M8

233281414

$1.47
