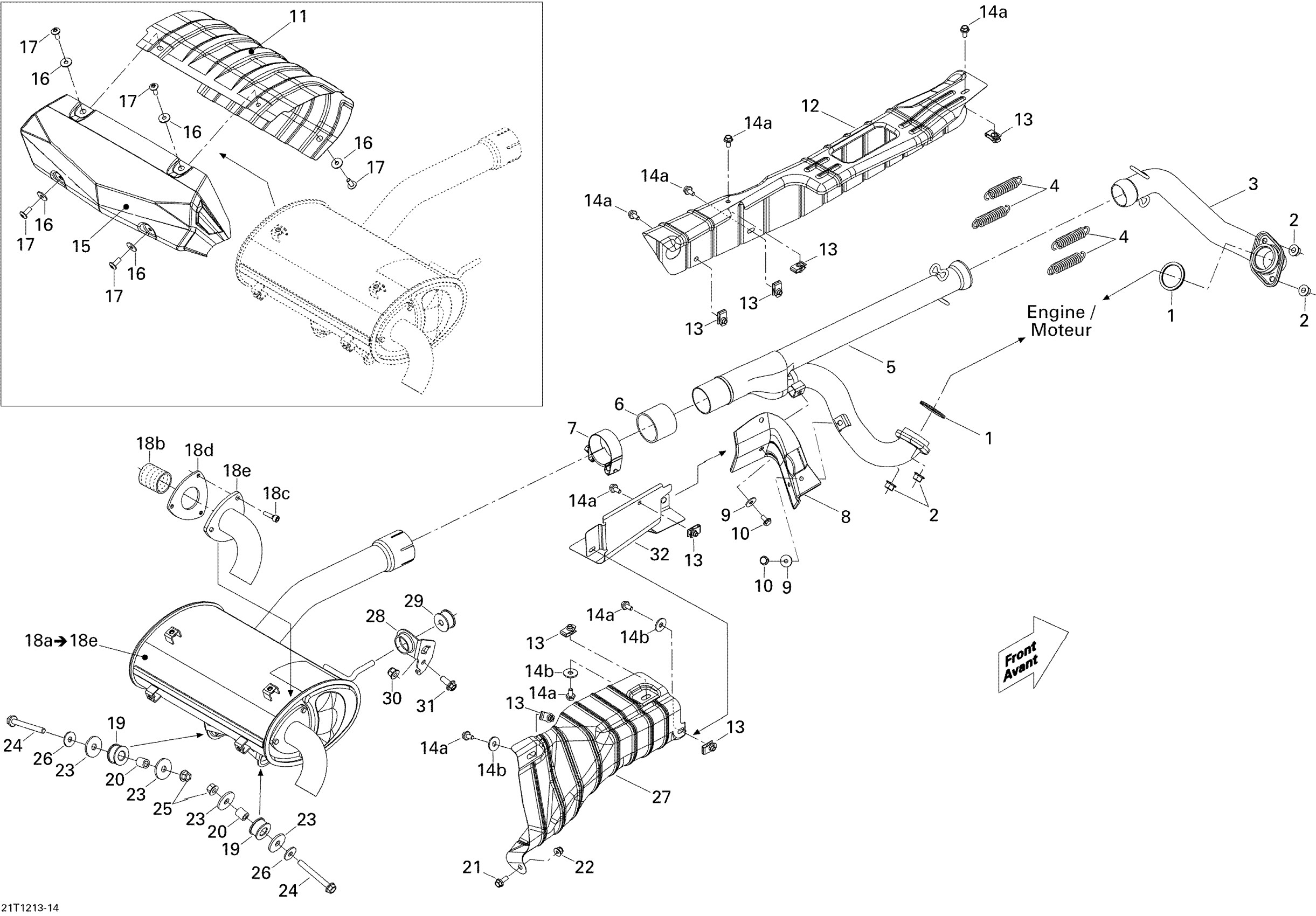

Can-Am Renegade STD, XXC, 800R EFI, 2012 01- Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.60

2

Hex. Flange Nut M8

233081416

$1.15

3

Front Head Pipe

707600764

$142.99

4

Spring

415107100

$6.35

5

Rear Head Pipe

707601446

$206.49

6

Pipe Gasket

707601544

$19.49

7

Norma Gear Clamp

293650177

$10.49

8

Pipe Protector

707600932

$15.81

9

Flat Washer

250200082

$0.42

10

Hex. Flange Screw M6 X 12

250000574

$2.11

11

Heat Deflector

707600737

$22.49

12

Heat Shield

707603724

$13.99

13

Panel Nut M6 X 1.0

250100198

$2.11

14a

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

14b

Flat Washer 6 mm

234062410

$0.77

15

Heat Deflector

707600738

$53.99

16

Stainless Steel Flat Washer

234062670

$2.11

17

Torx Screw M6 X 16

250000223

$2.11

18a

Muffler | Includes 18a to 18e

707600748

$550.99

18a

Muffler | Europe, Includes 18a to 18e

707600749

Unavailable

18b

Spark Arrestor

707601803

$49.99

18c

Socket Head Screw M6 X 20

205062060

$2.32

18d

Gasket

707601799

$5.99

18e

MUFFLER END PIECE - Call your local BRP dealership

715900144

Unavailable

19

Vibration Damper

707603323

$11.65

20

Bushing

293900106

$4.55

21

Hex. Flange Screw M6 X 16

207661654

$2.11

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Washer

503032900

$3.28

24

Hex. Flange Screw M8 X 70

207687044

$7.41

25

Hex. Flange Nut M8

233081416

$1.15

26

Flat Washer 8 mm

234082410

$1.47

27

Protector Kit

703500816

$26.99

28

Support

707600933

$7.90

29

Anti-Vibration Rubber

707600702

$8.57

30

Hex. Flange Elastic Nut M8

233281414

$1.47

31

Hex. Flange Screw

207682034

$2.11

32

HEAT DEFLECTOR - Call your local BRP dealership

707600983

Unavailable
