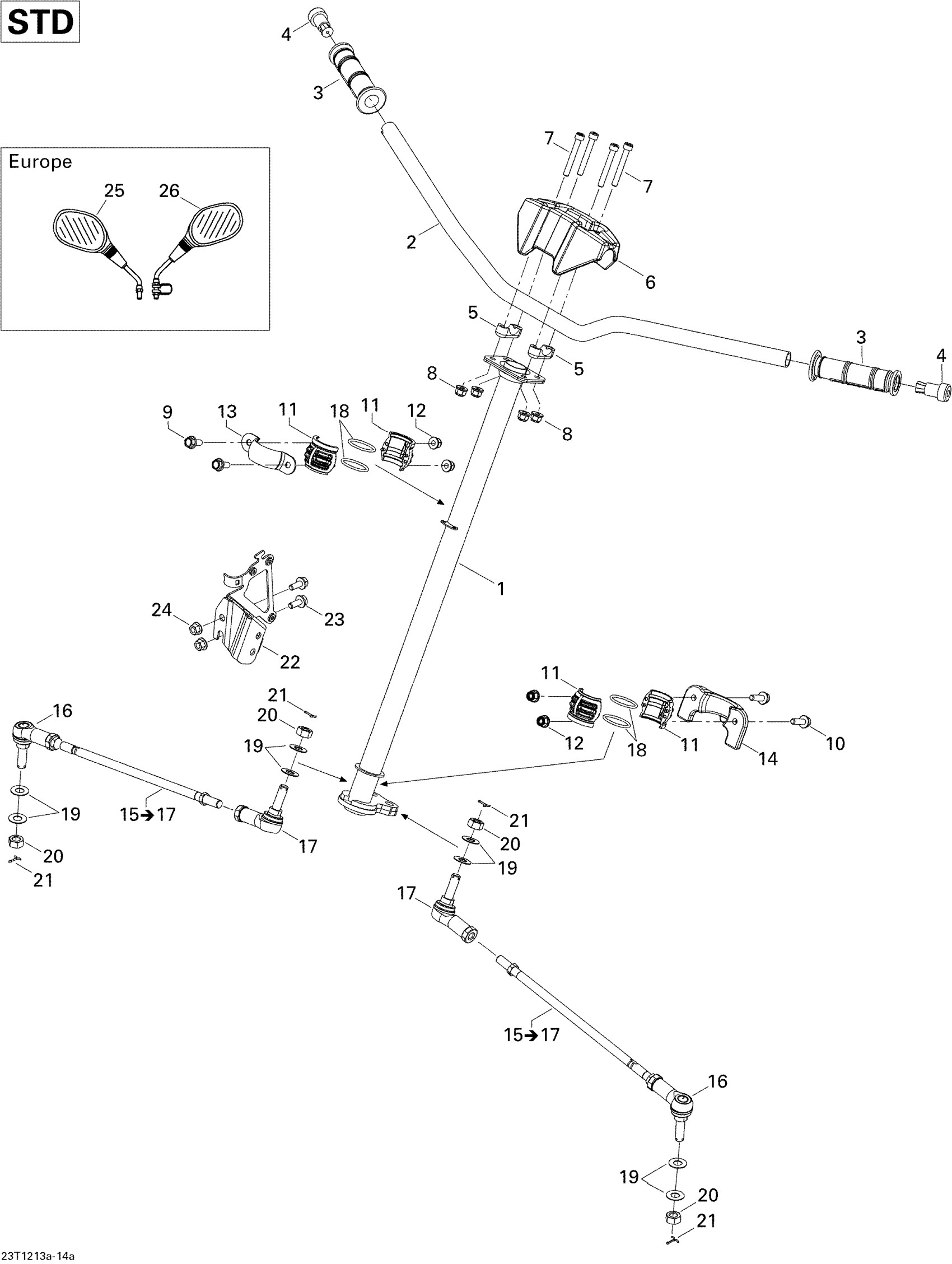

Can-Am Renegade STD, XXC, 1000 EFI, 2012 07- Steering STD Diagram

#

Description
Price

1

Main Tube

709401008

$144.99

2

Handlebar

709401242

$64.49

3

Handle Grip

709400493

$14.83

4

End Piece

709400449

$8.49

5

Steering Support

709400919

$22.49

6

SUPPORT - Call your local BRP dealership

709400920

Unavailable

7

Socket Head Screw M8 X 60

205086060

$4.12

8

Hex. Elastic Flange Nut M8

233281416

$1.48

9

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

10

Hex. Flange Screw M8 X 25

207682544

$1.35

11

Spherical Half Bushing

709400783

$7.65

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Upper Column Attachment

709400827

$1.09

14

Column Attachment

709401428

$38.99

15

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

16

LH Ball Joint

709402303

$36.99

17

RH Ball Joint

709402302

$36.99

18

O-Ring

293300068

$7.65

19

Hardened Washer

706200281

$2.85

20

Nut M12

250100099

$2.09

21

Cotter Pin

211400013

$0.37

22

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

23

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

24

Hex. Flange Nut M8

233081416

$1.15

25

LH Mirror | Europe

709400406

$32.99

26

RH Mirror | Europe

709400523

$35.99
