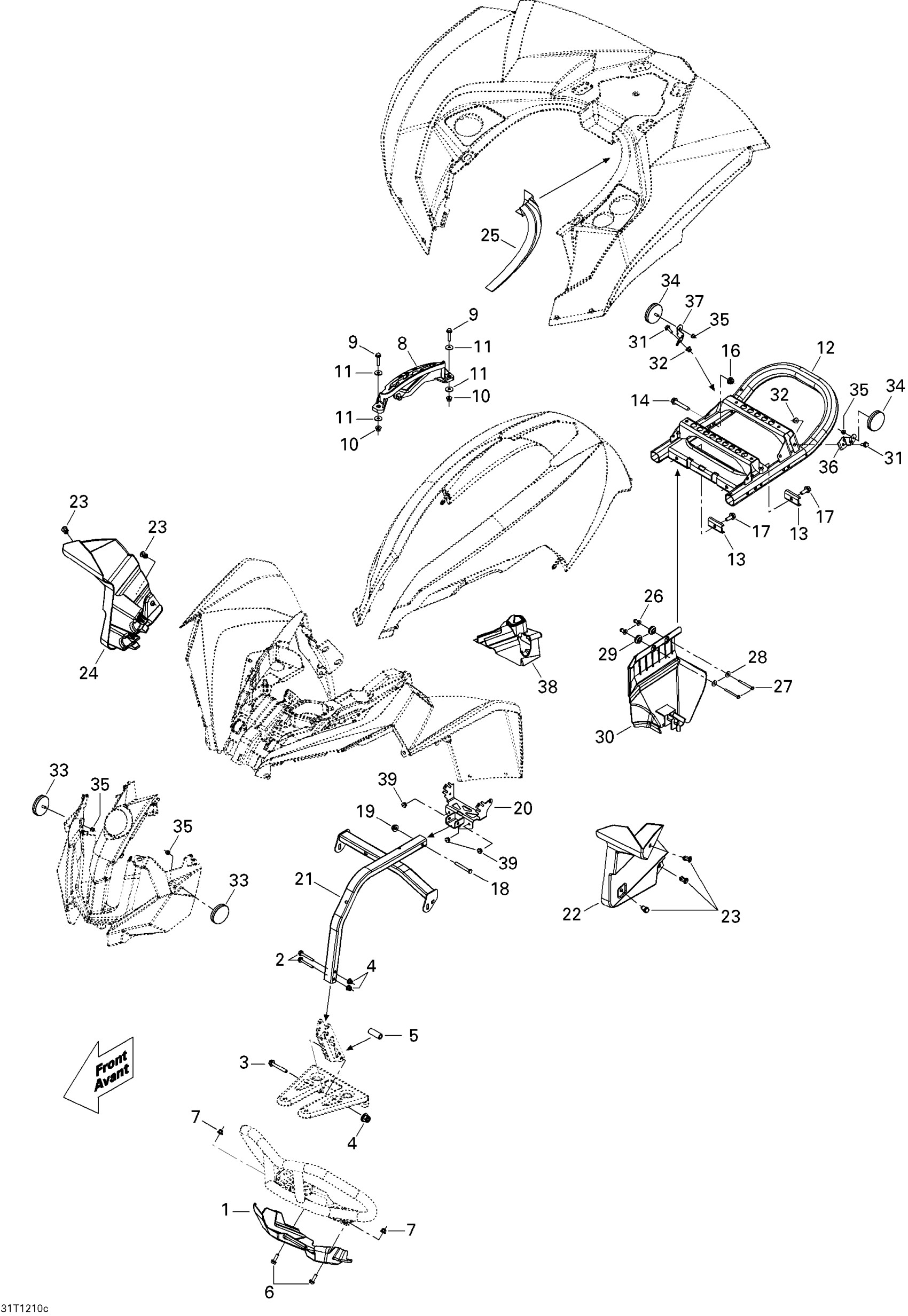

Can-Am Renagade 500EFI STD, 2012 09- Body And Accessories 3 Diagram

#

Description
Price

1

FRONT PROCTECTION PLATE - Call your local BRP dealership

705002248

Unavailable

2

Hex. Flange Screw M6 X 45

207664544

$1.46

3

Hex. Flange Screw M6 X 50

207665044

$4.12

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Spacer

705005809

$12.99

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Lever Indicator

705003838

$28.99

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Flat Washer

224061201

$1.37

12

WELDED SUPPORT - Call your local BRP dealership

705003657

Unavailable

13

U Reinforcement

705003647

$8.19

14

Hex. Flange Screw M8 X 50

207685044

$1.69

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

18

Hex. Flange Screw M6 X 45

207664544

$1.46

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

FUSE HOLDER SUPPORT - Call your local BRP dealership

705002671

Unavailable

21

WELDED SUPPORT - Call your local BRP dealership

705003663

Unavailable

22

LH INNER FENDER - Call your local BRP dealership

705003379

Unavailable

23

Tuflok Plastic Rivet

293150230

$1.47

24

RH INNER FENDER - Call your local BRP dealership

705002241

Unavailable

25

Reflective Sheet

705002451

$8.89

26

Knob

517303439

$4.55

27

Hex. Screw K50 X 45

241154540

$2.11

28

Washer | DS 650 X

391301600

$0.48

29

Grommet

709000582

$4.69

30

Thread Cover

705004036

$20.99

31

Hex. Flange Screw M6 X 16

207661654

$2.11

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Amber Reflector | Except Europe Model

705011222

$14.49

34

Red Reflector

705011221

$14.49

35

Hex. Flange Elastic Nut M5

233251414

$1.04

36

LH REFLECTOR SUPPORT - Call your local BRP dealership | Except Europe Model

705002456

Unavailable

37

RH REFLECTOR SUPPORT - Call your local BRP dealership | Except Europe Model

705002459

Unavailable

38

MASTER CYLINDER COVER - Call your local BRP dealership

705003650

Unavailable

39

Pop Rivet 3/16"

293150103

$0.55
