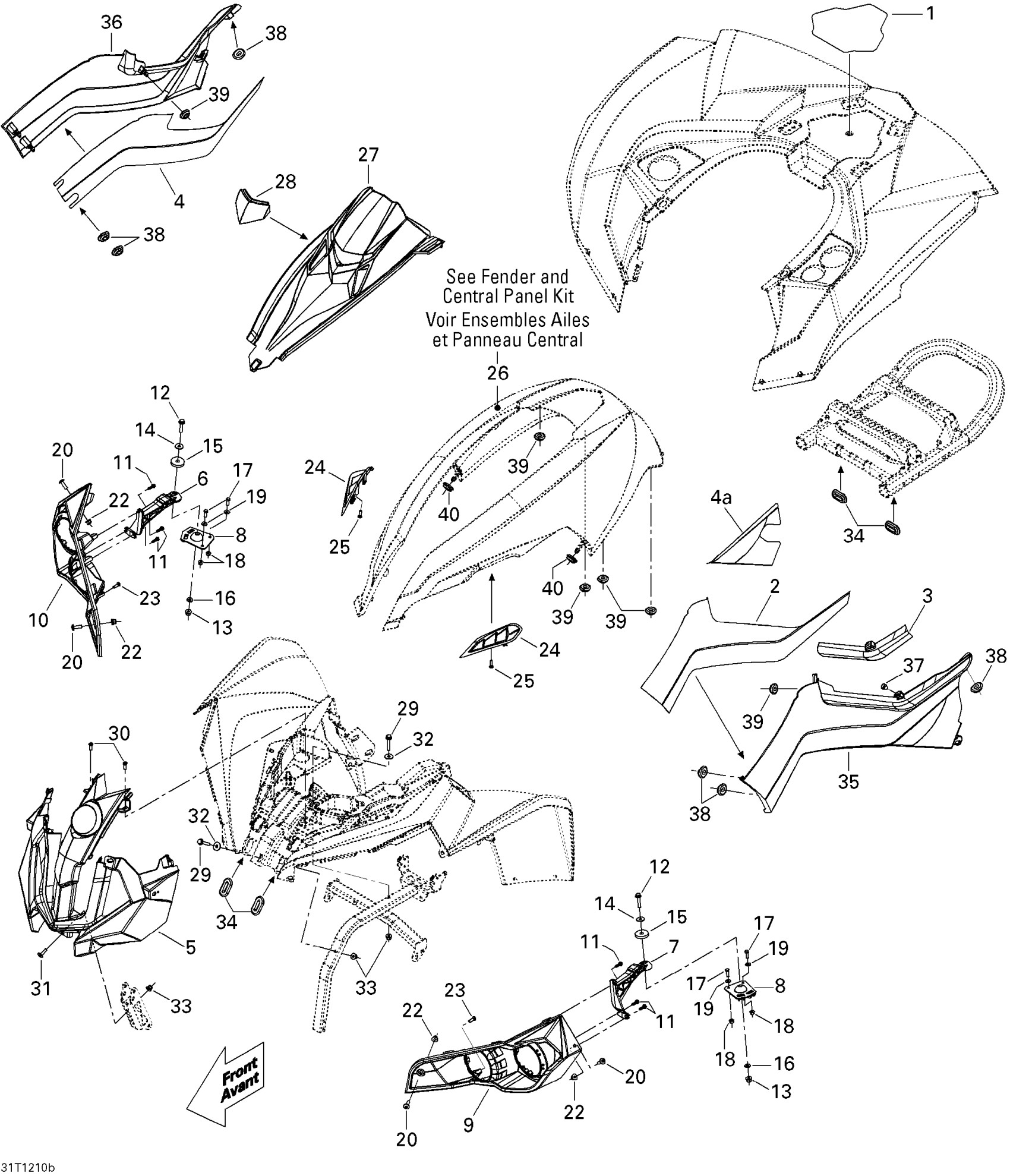

Can-Am Renagade 500EFI STD, 2012 09- Body And Accessories 2 Diagram

#

Description
Price

1

Rear Carpet

705002343

$19.49

2

Reflective Sheet

705005620

$12.99

3

REFLECTIVE SHEET - Call your local BRP dealership

705005617

Unavailable

4

REFLECTIVE SHEET - Call your local BRP dealership

705005623

Unavailable

4a

Reflective Sheet | Outlander

705005622

$3.89

5

Front Facia

705010673

$73.99

6

RH Light Support

705002424

$19.49

7

LH LIGHT SUPPORT - Call your local BRP dealership

705002425

Unavailable

8

Ball Joint

705002405

$15.49

9

LH Front Facia

705004508

$51.99

10

RH Front Facia

705004509

$51.99

11

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

12

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Flat Washer

250200082

$0.42

15

Rubber Washer

293830037

$2.68

16

Flat Washer

224061121

$0.53

17

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

18

Hex. Flange Elastic Nut M5

233251414

$1.04

19

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

20

Torx Screw M6 x 25

250000284

$2.11

20

Torx Screw M6 X 16

250000755

$0.87

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Torx Screw K50 X 16

250000720

$1.69

24

LH Grille

705008137

$20.99

24

RH Grille

705008138

$20.99

25

Torx Screw K50 X 16

250000720

$1.69

26

CENTRAL PANNEL - Call your local BRP dealership | STD Yellow 2000

715000752

Unavailable

26

White Central Panel Kit | White Model North America, White Model Internaltional

715001461

$149.99

26

CENTRAL PANNEL - Call your local BRP dealership | White Model Europe

715001463

Unavailable

27

Dashboard

705003556

$46.99

28

Cap

705002353

$15.49

29

Hex. Flange Screw M6 X 35

207663544

$0.90

30

Torx Screw K50 X 16

250000720

$1.69

31

Torx Screw M6 x 25

250000284

$2.11

32

Flat Washer

224061201

$1.37

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

34

Oblong Grommet

705003668

$5.79

35

Black, LH Lateral Panel

705002958

$43.99

36

Black, RH Side Panel

705002959

$43.99

37

Rubber Bumper

293830005

$8.09

38

Oval Washer

705000321

$5.61

39

Grommet

705003264

$4.09

40

Oval Washer

705000321

$5.61
