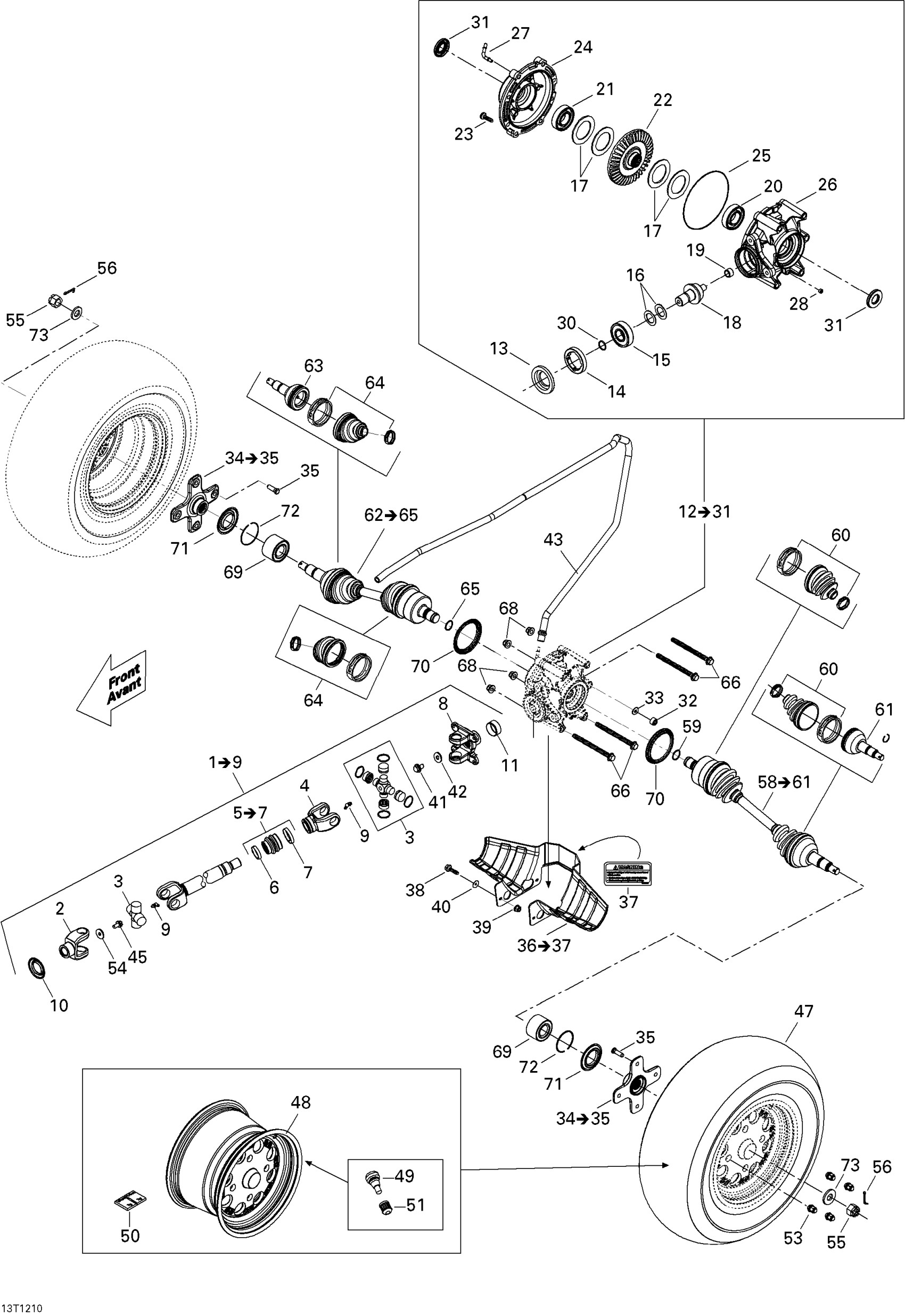

Can-Am Renagade 500EFI STD, 2012 08- Drive System, Rear Diagram

#

Description
Price

1

Rear Propeller Shaft Kit | Includes 1 to 9

703500801

$433.99

2

Fixe Yoke

715900101

$29.49

3

Universal Joint

715900326

$68.99

4

SLIDING JOINT - Call your local BRP dealership

705501072

Unavailable

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

7

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

8

DISC JOINT - Call your local BRP dealership

705500526

Unavailable

9

GREASE FITTING - Call your local BRP dealership

705500841

Unavailable

10

Protector

705501123

$7.55

11

Wear Ring | 4X4

705400036

$26.49

12

Differential Kit | Includes 10 to 29

703501033

$1,038.99

13

Oil Seal | 4X4

705401481

$19.49

14

Nut

705502059

$32.99

15

Ball Bearing | 4X4

705500260

$31.99

16

Pinion Gear Shim 1.67 mm

705502061

$18.99

16

Pinion Gear Shim

705501162

$16.49

17

Differential Shim 0.02 mm

705502060

$13.76

18

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

19

Needle Bearing

705501408

$69.99

20

Ball Bearing

705502737

$48.49

21

Ball Bearing

705502738

$59.49

22

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

23

Screw | 4X4

705401601

$10.49

24

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

25

Seal | 4X4

705500265

$18.76

26

PINION REAR COVER - Call your local BRP dealership

705501395

Unavailable

27

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

28

Drain Plug | 4X4

705500894

$11.49

30

O-Ring | 4X4

705500267

$7.65

31

Oil Seal

705501996

$21.99

32

Fill Level Plug | 4X4

705500504

$10.01

33

Copper Washer | 4X4

705500506

$0.45

34

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

36

Protector Kit | Includes 38 to 39

703500722

$67.99

37

WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership

704900766

Unavailable

37

WARNING DECAL, TRAILER - Call your local BRP dealership | Europe

704901905

Unavailable

38

Hex. Flange Screw M6 X 25

207662544

$0.64

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Flat Washer

250200082

$0.42

41

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

42

Flat Washer M12

250200102

$2.11

43

Polyurethane Hose 10000Mm Long

219704410

$56.99

45

Hex Flange Screw M12 X 16

250001039

$2.11

47

Rear Tire | Europe & International

705500820

$164.99

47

Tire | North America

705500926

$164.99

48

RIM_12 INCH X 7,5 - Call your local BRP dealership

705500837

Unavailable

49

Rim Valve With Cap

705400193

$8.69

50

1/2 Oz Weight

219704465

$3.89

51

Valve Cap

293000110

$1.59

53

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

54

Flat Washer M12

250200102

$2.11

55

Hex. Flange Castellated Nut M18

232291413

$7.98

56

Cotter Pin

250400036

$2.11

58

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

59

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

60

Boot Kit

705500870

$42.49

61

CV JOINT - Call your local BRP dealership

705500980

Unavailable

62

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

63

CV JOINT - Call your local BRP dealership

705500980

Unavailable

64

Boot Kit

705500870

$42.49

65

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

66

Hex. Flange Screw M10 X 135

250001041

$5.59

68

Hex. Flange Elastic Nut M10

233201434

$2.09

69

Ball Bearing

293350150

$52.99

70

Wear Ring

705501124

$7.90

71

Wear Sleeve | 4X4

705501121

$7.90

72

Circlip

293370019

$4.68

73

Conical Spring Washer M18

250200171

$7.65
