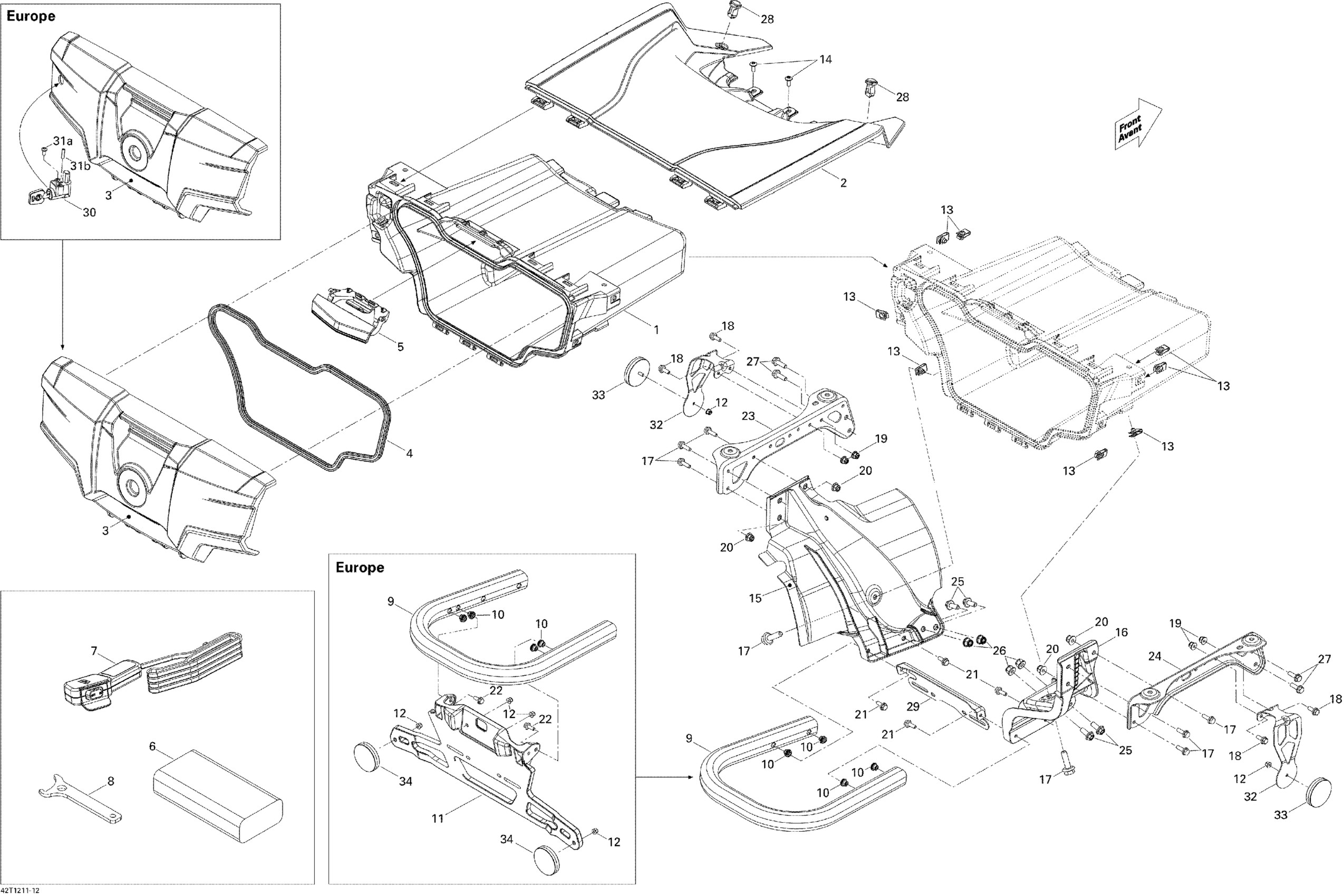

Can-Am Outlander STD, XT, 800R EFI, 2012 09- Rear Cargo Box Diagram

#

Description
Price

1

Rear Storage Box

708300674

$93.99

2

REAR STORAGE COVER - Call your local BRP dealership

708300848

Unavailable

3

Rear Panel

708300150

$38.99

3

Rear Panel | Europe

708300511

$55.99

4

NEOPRENE SEAL - Call your local BRP dealership

293250275

Unavailable

5

Handle Latch

708201250

$14.49

6

Tool Kit

704700162

$44.99

7

Remote Control

710002270

$56.99

8

Adjustment Wrench

529000035

$2.09

9

Rear Bumper Ass'y

715001564

$55.99

9

REAR BUMPER - Call your local BRP dealership | Europe

715001566

Unavailable

10

Threaded Insert M6 X 1.0

250100242

Unavailable

11

Plate Support | Europe

708300434

$27.99

12

Hex. Flange Elastic Nut M5

233251414

$1.04

13

Panel Nut M6 X 1.0

250100198

$2.11

14

Torx Screw M6 X 16

250000755

$0.87

15

LH Cargo Support

705006997

$55.99

16

RH Cargo Support

705006998

$55.99

17

Hex. Flange Screw M6 X 20

207662044

$2.00

18

Hex. Flange Screw M6 X 16

207661644

$0.74

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

22

Hex. Flange Screw M6 X 16

207661634

$2.11

23

LH Support

705004563

$34.99

24

RH Support

705004564

$34.99

25

Hex. Flange Screw M8 X 20

207682044

$1.15

26

Hex. Flange Elastic Nut M8

233281414

$1.47

27

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

28

Tuflok Plastic Rivet

293150230

$1.47

29

Plate Support

705004806

$13.99

30

Padlock with Key

707000666

$25.99

31a

Socket Head Screw M5 X 10

205951046

$2.43

31b

Socket Set Screw M5 X 20 | Europe

206252044

$1.48

32

Reflector Support | Except Europe

705202576

$9.29

33

Red Reflector

705011221

$14.49

34

Red Reflector

705011221

$14.49
