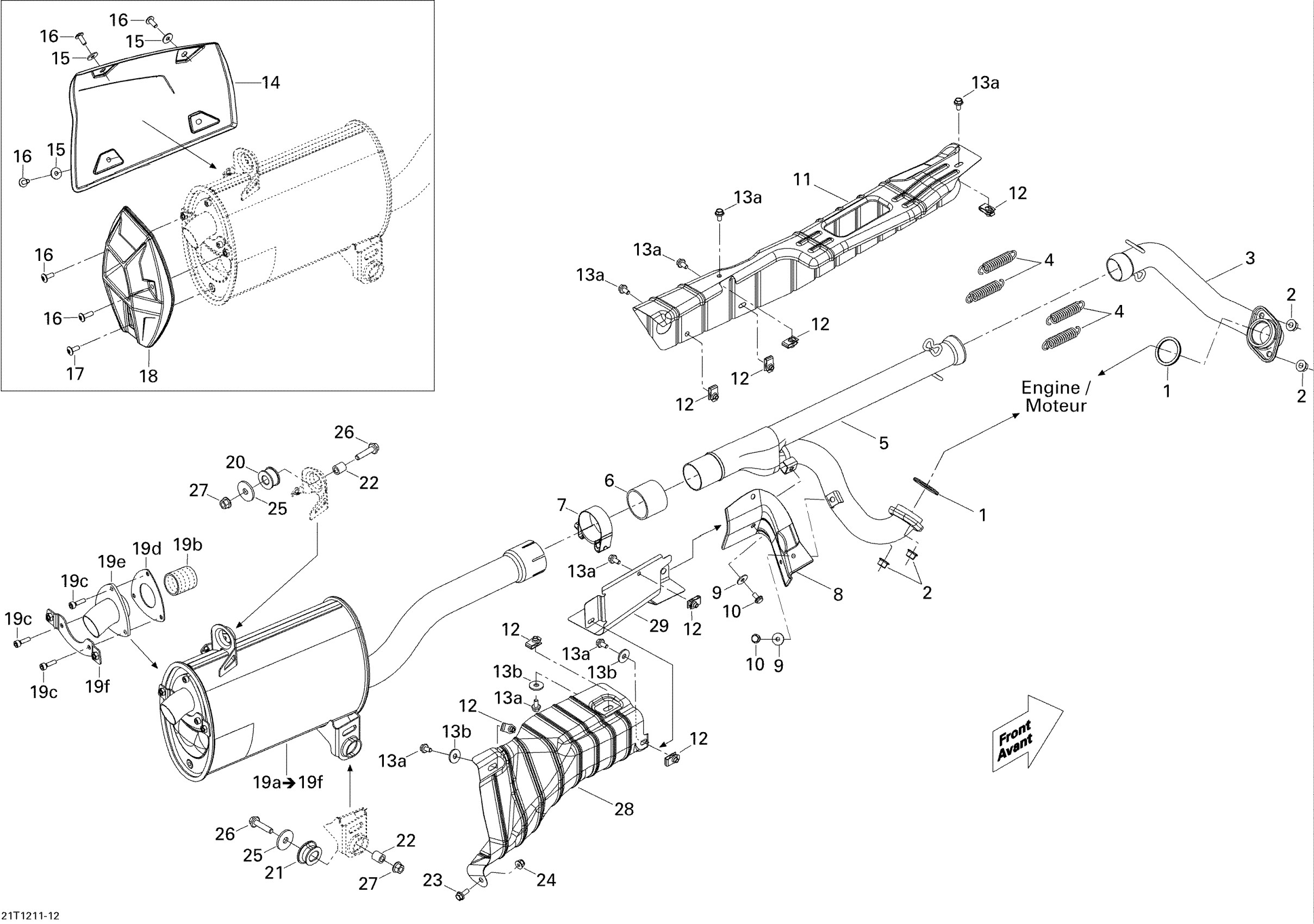

Can-Am Outlander STD, XT, 800R EFI, 2012 01- Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.60

2

Hex. Flange Nut M8

233081416

$1.15

3

Front Head Pipe

707600764

$142.99

4

Spring

415107100

$6.35

5

Rear Head Pipe

707601446

$206.49

6

Pipe Gasket

707601544

$19.49

7

Norma Gear Clamp

293650177

$10.49

8

Pipe Protector

707600932

$15.81

9

Flat Washer

250200082

$0.42

10

Hex. Flange Screw M6 X 12

250000574

$2.11

11

Heat Shield

707603724

$13.99

12

Panel Nut M6 X 1.0

250100198

$2.11

13a

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

13b

Flat Washer 6 mm

234062410

$0.77

14

Heat Deflector

707600710

$42.99

15

Stainless Steel Flat Washer

234062670

$2.11

16

Torx Screw M6 X 16

250000223

$2.11

17

Torx Truss Screw M6 X 20

250000350

$5.29

18

Muffler Cap

707600711

Unavailable

19a

Exhaust Muffler | Includes 19a to 19f

703501071

$572.49

19a

MUFFLER_EXHAUST - Call your local BRP dealership | Europe, Includes 19a to 19f

707600799

Unavailable

19b

Spark Arrestor

707601803

$49.99

19c

Socket Head Screw M6 X 20

205062060

$2.32

19d

Gasket

707601799

$5.99

19e

Muffler End Piece

715900143

$35.99

19f

Support

715900147

$3.29

20

Vibration Damper

707603323

$11.65

21

Rubber

707600448

$7.90

22

Bushing

293900106

$4.55

23

Hex. Flange Screw M6 X 16

207661654

$2.11

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

Washer

503032900

$3.28

26

Hex. Flange Screw M8 X 35

207683534

$2.11

27

Hex. Flange Nut M8

233081416

$1.15

28

Protector Kit

703500816

$26.99

29

HEAT DEFLECTOR - Call your local BRP dealership

707600983

Unavailable
