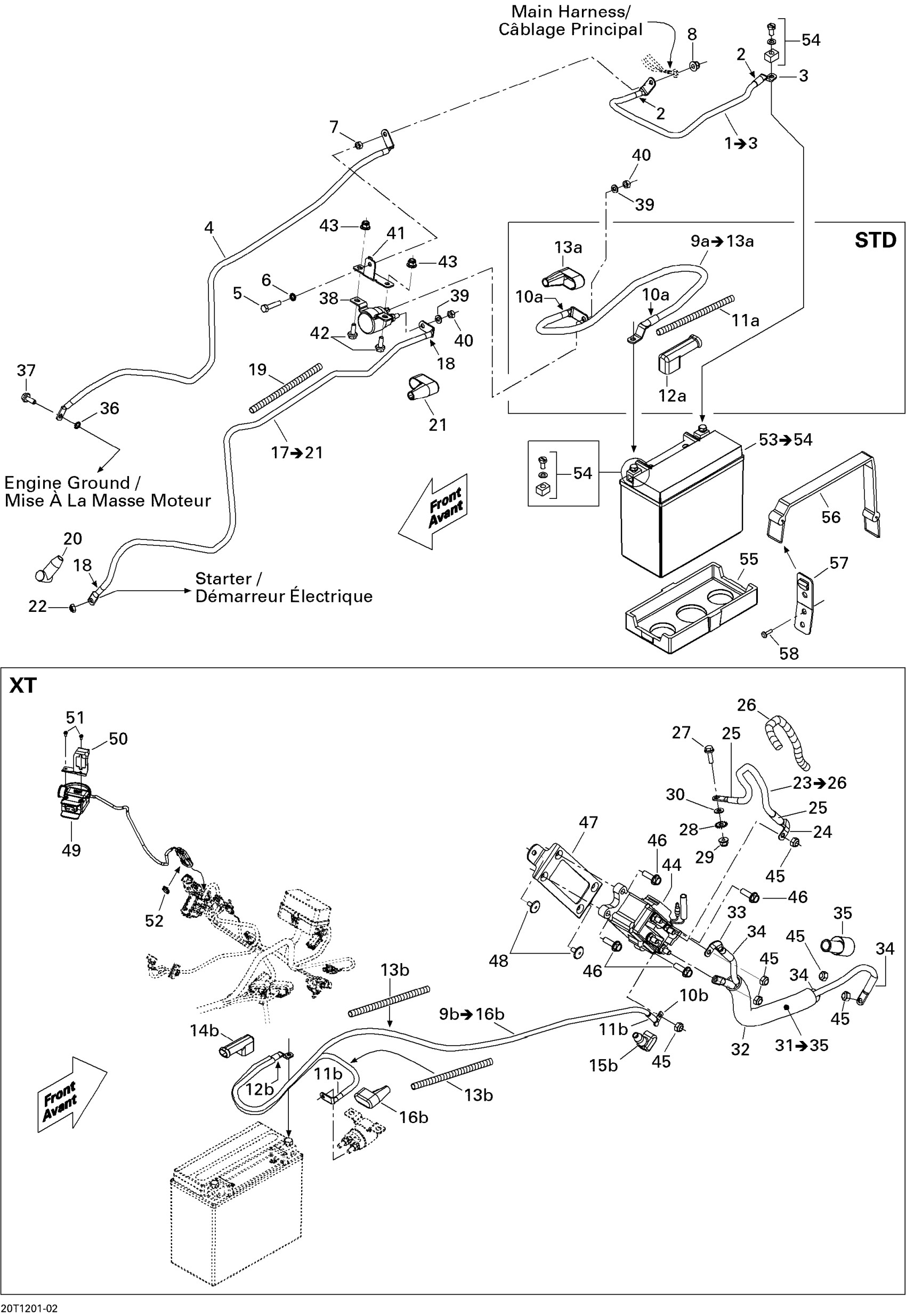

Can-Am Outlander STD, XT, 400 EFI, 2012 10- Electrical System Diagram

#

Description
Price

1

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.49

2

Was 710000483 Heat Shrink Tubing

219704447

$78.99

3

Open Barrel | STD Models

710000518

$11.12

4

Ground Cable | Includes 4 to 6

710001443

Unavailable

5

Hex. Screw M6 X 25

207162544

$1.15

6

External Serrated Lock Washer 6 mm

234461608

$1.15

7

Hex. Nut M6

232061414

$0.53

8

Hex. Flange Nut M6

233061414

$1.68

9a

Positive Cable Ass'y | STD, Includes 22 to 28

710001822

$30.99

10a

Was 710000483 Heat Shrink Tubing

219704447

$78.99

11a

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

12a

Protector Cap | STD Models

710001829

$9.95

13a

Protector Cap | STD

710001817

$11.12

9b

POSITIVE CABLE ASS'Y - Call your local BRP dealership | XT, Includes 13 to 21

710001823

Unavailable

10b

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

11b

Was 710000483 Heat Shrink Tubing

219704447

$78.99

12b

Shrink Tubing | XT Models

275500578

Unavailable

13b

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

14b

Protector Cap | STD Models

710001829

$9.95

15b

Protector Cap | XT Models

710001828

$23.49

16b

Protector Cap | STD

710001817

$11.12

17

POSITIVE CABLE ASS'Y - Call your local BRP dealership | Includes 27 to 31

710001820

Unavailable

18

Was 710000483 Heat Shrink Tubing

219704447

$78.99

19

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

20

Protector Cap

710000526

$10.99

21

Protector Cap | STD

710001817

$11.12

22

Elastic Stop Nut M6

232561414

$0.55

23

NEGATIVE CABLE ASS'Y - Call your local BRP dealership | XT Models, Includes 37 To 41

710000455

Unavailable

24

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

25

Was 710000483 Heat Shrink Tubing

219704447

$78.99

26

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

27

Hex. Flange Screw M6 X 20

207662044

$2.00

28

Lock Washer Serrated M6

250200041

$1.15

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Flat Washer

224061121

$0.53

31

WINCH CABLE ASS'Y - Call your local BRP dealership | XT, Includes 47 to 52

710001251

Unavailable

32

Was 409901600 Tubing 19mm

219704398

$95.99

33

OPEN BARREL, 6.6 MM - Call your local BRP dealership | XT Models

710000476

Unavailable

34

Was 710000483 Heat Shrink Tubing

219704447

$78.99

35

Protector Cap | XT

515175919

$17.99

36

External Serrated Lock Washer 6 mm

234461608

$1.15

37

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

38

Starter Relay

710007777

$48.49

39

Lock Washer Helical M6

234161601

$1.15

40

Hex. Nut M6

232061600

$1.15

41

SOLENOID SUPPORT - Call your local BRP dealership

710001260

Unavailable

42

Hex. Flange Screw M6 X 12

207661244

$2.11

43

Hex. Flange Nut M6

233061414

$1.68

44

Winch Solenoid | XT Models

710001000

$121.99

45

Elastic Stop Nut M6

232561414

$0.55

46

Hexagonal Head Screw

210262050

$2.11

47

WINCH RELAY SUPPORT - Call your local BRP dealership | XT

710001813

Unavailable

48

Pop Rivet 3/16"

390406500

$0.88

49

Winch Switch | XT, XTP, XMR, LTD,

710002724

$164.49

50

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

51

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

52

Clip

710000992

$4.29

53

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

54

Battery Bolt Kit

250000282

$7.29

55

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

56

Retainer Strap

293850097

$11.64

57

Strap Clip

293850030

$11.12

58

Pop Rivet 3/16"

390402400

$0.35
