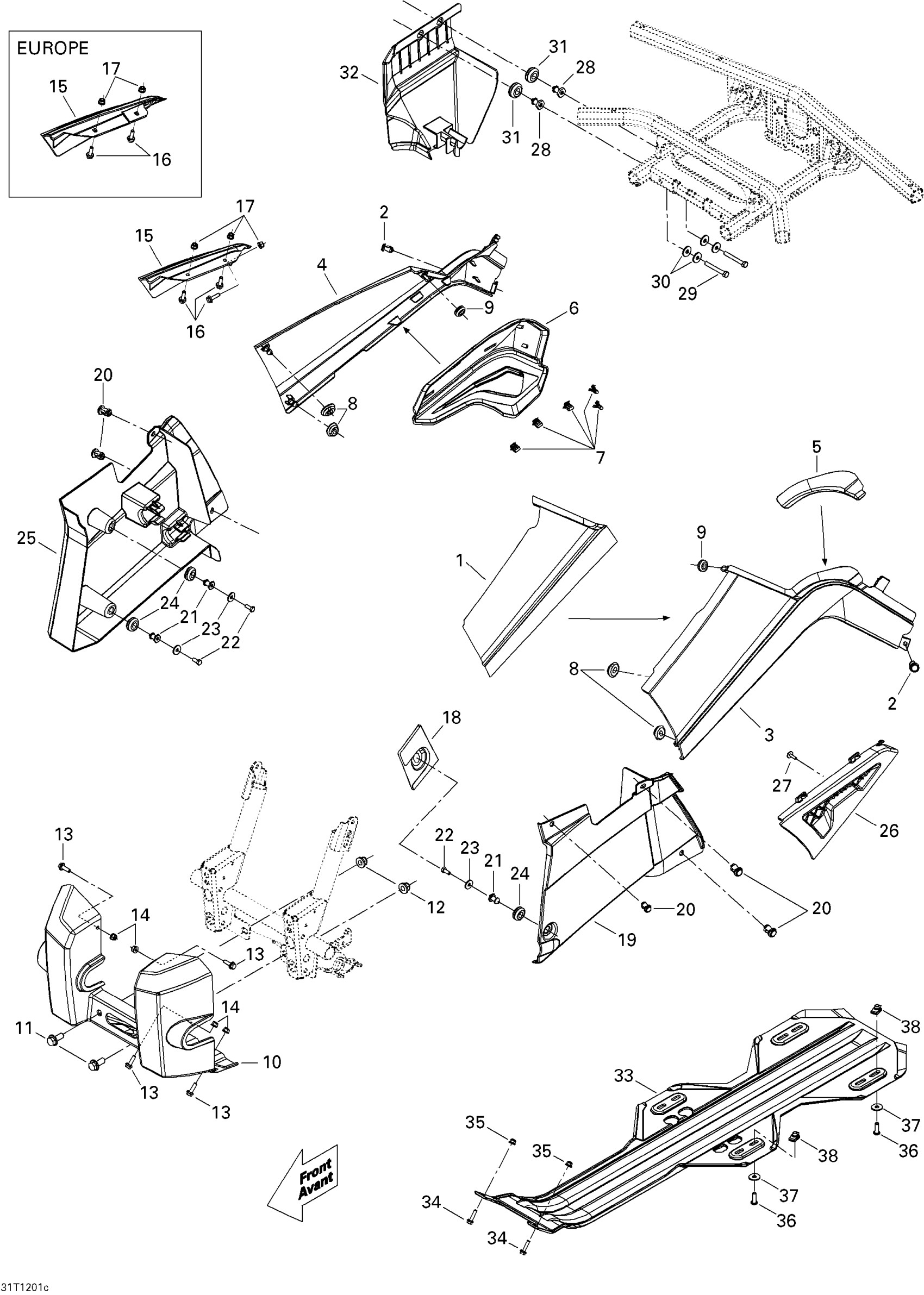

Can-Am Outlander STD, XT, 400 EFI, 2012 09- Body And Accessories 3 Diagram

#

Description
Price

1

REFLECTIVE SHEET - Call your local BRP dealership

705002491

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

PANEL_BODY LH B-160 - Call your local BRP dealership | Black Model

705003497

Unavailable

3

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705003498

Unavailable

3

RED LH SIDE PANEL - Call your local BRP dealership | Viper Red

705003499

Unavailable

4

PANEL_BODY RH B-160 - Call your local BRP dealership | Black Model

705003500

Unavailable

4

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705003501

Unavailable

4

Red RH Side Panel | Viper Red

705003502

$43.99

5

Reflective Sheet

705002793

Unavailable

6

MUFFLER COVER - Call your local BRP dealership

705002664

Unavailable

7

Edge Clip

517302785

$0.88

8

Oval Washer

705000321

$5.61

9

Grommet

705003264

$4.09

10

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

10

GUARD PLATE - Call your local BRP dealership

705003496

Unavailable

11

Socket Screw M10 X 35

205003544

$1.69

11

Hex. Flange Screw M10 X 25

207602544

$1.69

12

Hex. Flange Elastic Nut M10

233201414

$1.58

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

LEVER INDICATOR - Call your local BRP dealership

705001529

Unavailable

15

LEVER INDICATOR - Call your local BRP dealership | Europe

705003028

Unavailable

16

Hex. Flange Screw M6 X 20

207662044

$2.00

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Reflective Sheet

705003830

$12.99

19

LH Inner Fender

705000652

$39.99

20

Tuflok Plastic Rivet

293150230

$1.47

21

Knob

517303439

$4.55

22

Torx Screw K50 X 16

250000720

$1.69

23

Washer | DS 650 X

391301600

$0.48

24

Grommet

709000582

$4.69

25

INNER FENDER - Call your local BRP dealership

705002640

$36.99

26

CONSOLE CAP - Call your local BRP dealership

705002493

Unavailable

27

Screw M4 X 16

250000725

$3.49

28

Knob

517303439

$4.55

29

Hex. Screw K50 X 45

241154540

$2.11

30

Washer | DS 650 X

391301600

$0.48

31

Grommet

709000582

$4.69

32

Thread Cover

705004036

$20.99

33

PLATE_SKID CTRL. KIT - Call your local BRP dealership

715000688

Unavailable

34

Hex. Flange Screw M6 X 25

207662544

$0.64

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

37

Flat Washer 8 mm

234082410

$1.47

38

Panel Nut M8

250100111

$4.29

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable
