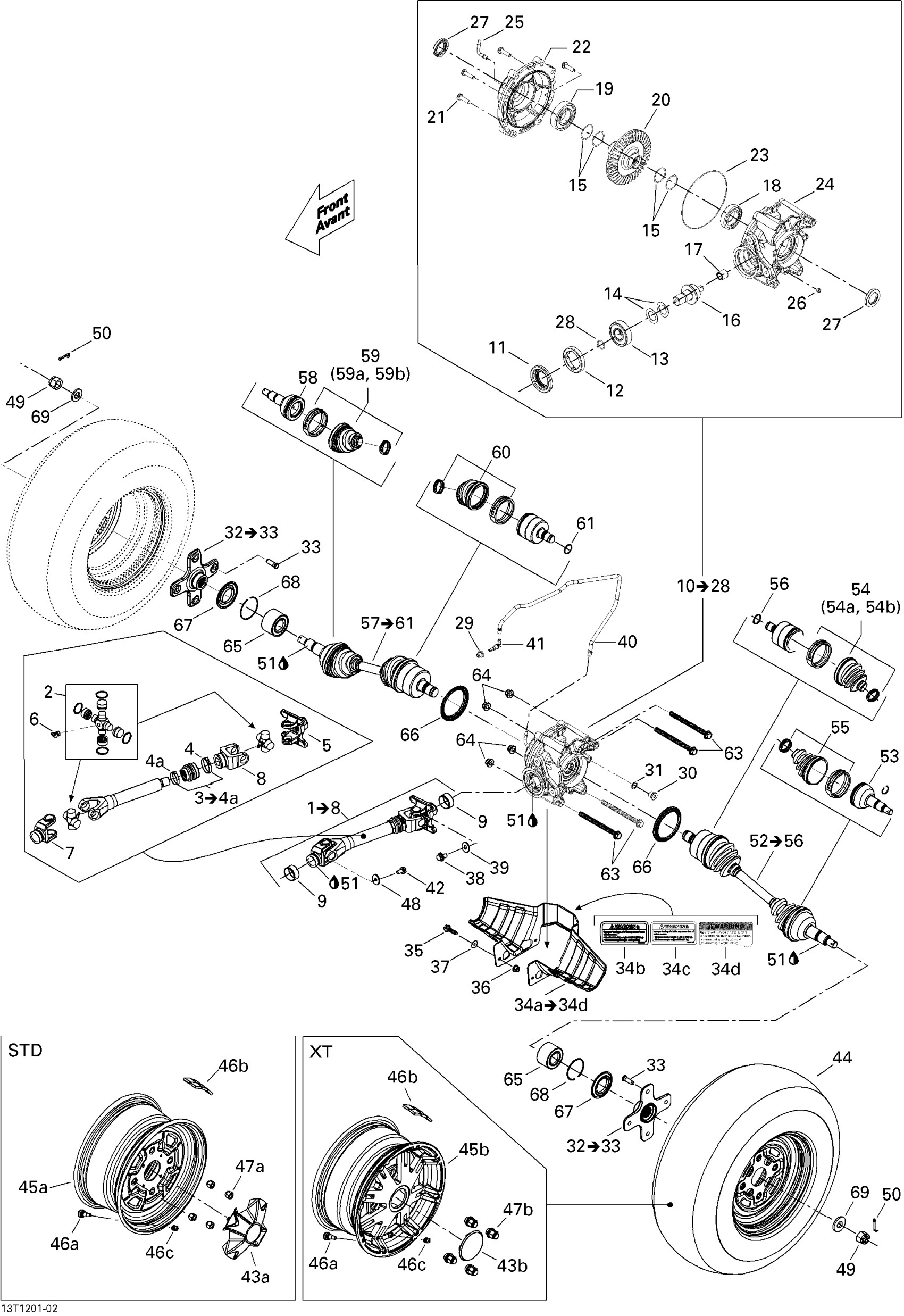

Can-Am Outlander STD, XT, 400 EFI, 2012 08- Drive System, Rear Diagram

#

Description
Price

1

Rear Propeller Shaft | Includes 1 to 9

703500825

$259.49

2

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

3

GREASE FITTING - Call your local BRP dealership

715900067

Unavailable

4

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

4a

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

5

DISC JOINT - Call your local BRP dealership

705500351

Unavailable

6

GREASE FITTING - Call your local BRP dealership

715900067

Unavailable

7

Fixed Yoke Joint

715900116

$59.49

8

Slip Joint

705500762

Unavailable

9

Wear Ring | 4X4

705400036

$26.49

10

Differential Kit | Includes 10 to 29

703501033

$1,038.99

11

Oil Seal | 4X4

705401481

$19.49

12

Nut

705502059

$32.99

13

Ball Bearing | 4X4

705500260

$31.99

14

Pinion Gear Shim .022"

705500075

Unavailable

14

Pinion Gear Shim 1.67 mm

705502061

$18.99

14

Pinion Gear Shim

705501162

$16.49

15

Differential Shim 0.02 mm

705502060

$13.76

16

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

17

Needle Bearing

705501408

$69.99

18

Ball Bearing

705502737

$48.49

19

Ball Bearing

705502738

$59.49

20

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

21

Screw | 4X4

705401601

$10.49

22

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

23

Seal | 4X4

705500265

$18.76

24

PINION REAR COVER - Call your local BRP dealership

705501395

Unavailable

25

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

26

Drain Plug | 4X4

705500894

$11.49

27

Oil Seal

705501996

$21.99

28

O-Ring | 4X4

705500267

$7.65

29

Grommet

293720029

$1.59

30

Fill Level Plug | 4X4

705500504

$10.01

31

Copper Washer | 4X4

705500506

$0.45

32

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

$137.47

33

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

34a

Protector Kit | Includes 38 to 39

703500722

$67.99

34b

WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership

704900766

Unavailable

34c

Not Available As Spare Part - Friction Washer

Unavailable

34d

WARNING DECAL, TRAILER - Call your local BRP dealership | Europe

704901905

Unavailable

35

Hex. Flange Screw M6 X 25

207662544

$0.64

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Flat Washer

250200082

$0.42

38

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

39

Flat Washer M12

250200102

$2.11

40

Polyurethane Hose 10000Mm Long

219704410

$56.99

41

Elbow Male Connector

414580600

$4.23

42

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

43a

Wheel Cap | STD

705400563

$18.99

43b

WHEEL CAP - Call your local BRP dealership

705400680

$15.49

44

TIRE_25X11R12 REAR - Call your local BRP dealership | XT

705500933

Unavailable

44

Rear Tire | XT

705500598

$139.99

44

Tire 25X10R12 MST | Traxter CVT STD

705503225

$158.99

44

Rear Tire 280/60R12 | STD EUR

705502165

$209.99

45a

RIM_12 INCH X 7,5 - Call your local BRP dealership | STD

705501136

Unavailable

45b

RIM_12 INCH X 7,5 - Call your local BRP dealership | XT (Except Camo)

705500986

Unavailable

46a

Rim Valve With Cap

705400193

$8.69

46b

1/2 Oz Weight

219704465

$3.89

46c

Valve Cap

293000110

$1.59

47a

Steel Wheel Nut

250100042

$3.98

47b

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

48

Washer

211200041

$3.17

49

Hex. Flange Castellated Nut M18

232291413

$7.98

50

Cotter Pin

250400036

$2.11

52

LH CV Joint | Includes 52 to 56

705500976

Unavailable

53

CV JOINT - Call your local BRP dealership

705500978

Unavailable

54

Wheel Boot Kit

705500929

$42.49

54a

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

54b

OETIKER CLAMP 71,1MM - Call your local BRP dealership

715900139

Unavailable

55

Wheel Boot Kit

705500907

$42.49

56

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

57

RH CV Joint | Includes 57 to 61

705500977

Unavailable

58

CV JOINT - Call your local BRP dealership

705500978

Unavailable

59

Wheel Boot Kit

705500907

$42.49

59a

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

59b

OETIKER CLAMP 71,1MM - Call your local BRP dealership

715900139

Unavailable

60

Wheel Boot Kit

705500929

$42.49

61

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

63

Hex. Flange Screw M10 X 135

250001041

$5.59

64

Hex. Flange Elastic Nut M10

233201434

$2.09

65

Ball Bearing

293350150

$52.99

66

WEAR SLEEVE - Call your local BRP dealership

705500901

$11.49

67

Wear Sleeve | 4X4

705501121

$7.90

68

Circlip

293370019

$4.68

69

Conical Spring Washer M18

250200171

$7.65
