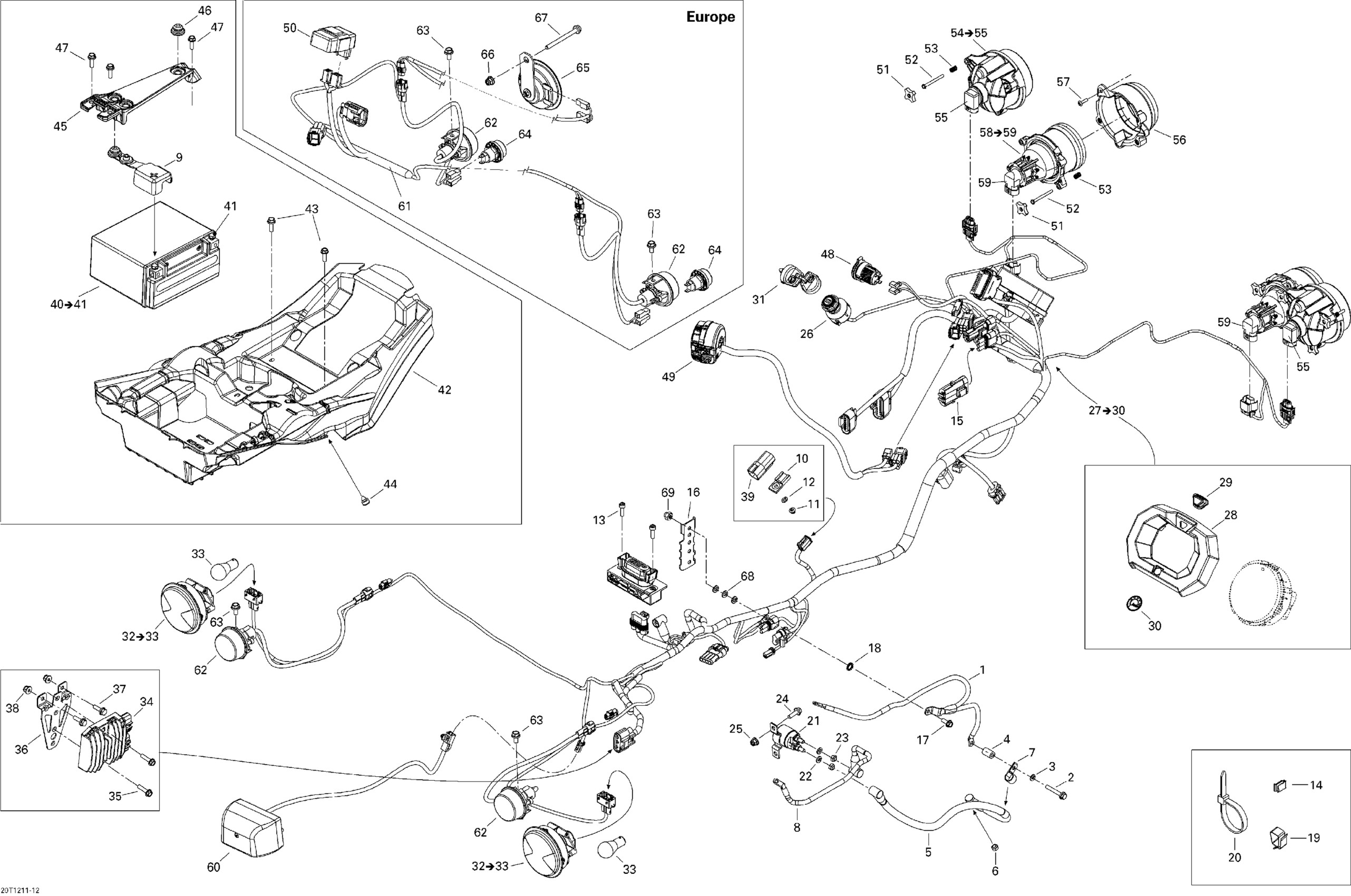

Can-Am Outlander STD, XT, 1000 EFI, 2012 10- Electrical System Diagram

#

Description
Price

1

Ground Cable

710004382

$19.99

2

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

POSITIVE CABLE - Call your local BRP dealership

710001750

Unavailable

6

Elastic Stop Nut M6

232561414

$0.55

7

Open Clamp

518321570

$7.69

8

Positive Cable

710004376

$48.99

9

Battery Cable Cap

710006729

$7.20

10

Clip

270000141

$11.49

11

Pop Rivet 3/16"

390402300

$0.75

12

Washer | DS 650 X

391301600

$0.48

13

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

14

Clip

710000992

$4.29

15

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.71

16

BRACKET - Call your local BRP dealership

710002567

Unavailable

17

Hex. Flange Screw M6 X 16

210261650

$1.67

18

External Serrated Lock Washer 6 mm

234461608

$1.15

19

Clip

414227300

$1.67

20

Tie-Rap 180 mm

414115200

$0.11

20

Tie Wrap 368 mm

293750008

$1.04

20

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

Tie-rap 627 mm

293750041

$0.93

21

Starter Relay

710007777

$48.49

22

Lock Washer Helical M6

234161601

$1.15

23

Elastic Stop Nut M6

232561414

$0.55

24

Hex. Flange Screw M6 X 20

207662084

$1.69

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Ignition Switch

710008400

$78.49

27

Calibrated Speedometer Ass'y | Includes 27 to 30

710003103

$499.99

28

Trim Ring

710002092

$8.99

29

Button

710001473

$13.71

30

BRP Logo13 mm

704904615

$13.49

31

Black, Electronic Key

710000817

$63.49

31

Grey, Electronic Key

710002183

$63.49

32

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

33

Bulb

520000758

$9.10

34

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

34

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

35

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

36

Rectifier Support

710001752

$9.29

37

Hex. Flange Screw M6 X 20

207662044

$2.00

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

39

Diagnostic Connector

278002704

$19.49

40

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

41

Battery Bolt Kit

250000282

$7.29

42

BATTERY SUPPORT - Call your local BRP dealership

710002892

Unavailable

43

Hexagonal Head Screw

210262050

$2.11

44

Rubber Bumper

293830005

$8.09

45

Fixation Plate

710002404

$9.39

46

Stopper Rubber

705014429

$5.95

47

Hex. Flange Screw M6 X 20

207662084

$1.69

48

DC Outlet

710001248

$37.99

49

Multi-Function Handle

710004040

$179.99

49

Switch Kit | XT, XTP, XMR, LTD

703500920

$97.49

49

Handle Kit | STD

703500919

$74.99

50

Flasher Unit

710003239

$78.49

51

Handle

572106600

$10.33

52

Hex. Screw K40 X 45

250000718

$2.11

53

Spring

517168600

$7.39

54

Low Beam | Includes 54 to 55

710006177

$119.99

55

Bulb 12V 55W

715900141

$41.49

56

RH High Front Housing

710002291

$28.99

56

LH High Front Housing

710002292

$22.49

57

Phillips Screw K40 X 16

250000723

$0.98

58

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

59

Halogen Bulb

415129249

$41.49

60

License Plate Light | Europe

710005563

$126.99

61

Harness Ass'y | Includes 1 to R1, Europe

710002481

Unavailable

62

Flasher | Europe

710002047

$32.99

63

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

64

Day Light | Europe

710001726

$35.99

65

Horn

710004791

$38.99

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

67

Hex. Flange Screw M6 X 70

207667044

$0.85
