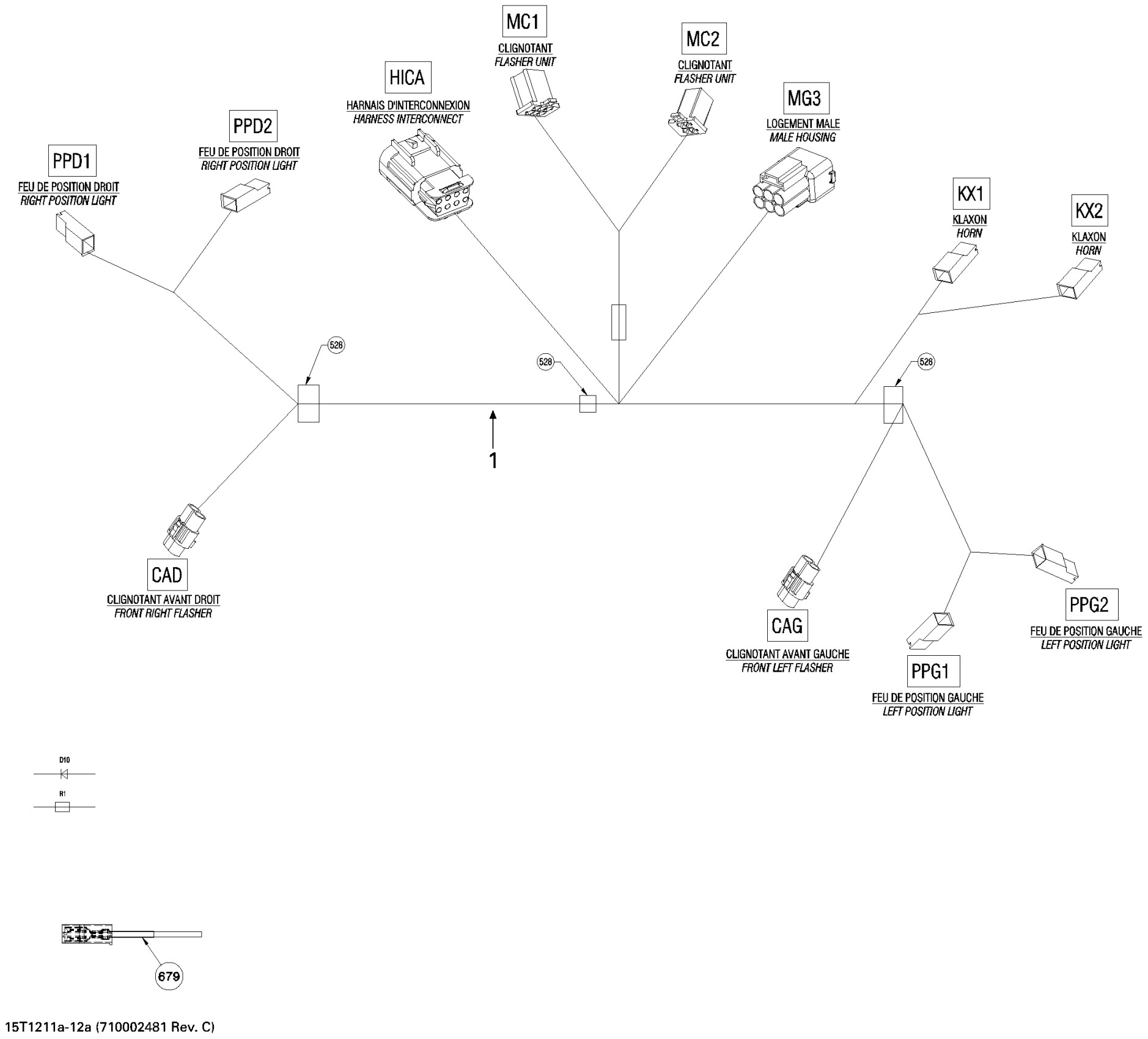

Can-Am Outlander STD, XT, 1000 EFI, 2012 10- Electrical Harness Europe Diagram

#

Description
Price

1

Harness Ass'y | Includes 1 to R1, Europe

710002481

Unavailable

528

Not Available As Spare Part - Friction Washer

Unavailable

765

Not Available As Spare Part - Friction Washer

Unavailable

CAD

Female Terminal

409012100

$4.55

CAD

Seal

409012300

$4.54

CAG

Female Terminal

409012100

$4.55

CAG

Seal

409012300

$4.54

D10

Diode

409012700

$11.12

HICA

Clip

710001038

$5.39

HICA

Seal

710001233

$3.19

HICA

Cap

710001225

$9.19

HICA

Terminal

710001224

$3.19

HICA

Housing

710001927

$8.79

KX1

Female Terminal

409010100

$5.61

KX1

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

KX1

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

KX2

Female Terminal

409010100

$5.61

KX2

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

KX2

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

MC1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

MC1

Housing

710002314

$17.04

MC1

Terminal

710002315

$4.55

MC2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

MC2

Housing

710002313

$19.49

MC2

Terminal

710002315

$4.55

MG3

Male Terminal

409011300

$5.93

MG3

Wire Seal

710000402

$4.55

MG3

Male Housing Terminal, 6 Circuits

710001446

$4.55

PPD1

Female Terminal

409010100

$5.61

PPD1

Female Terminal Housing, 1 Circuit

409010400

$7.62

PPD1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

PPD1

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

PPD2

Female Terminal

409010100

$5.61

PPD2

Female Terminal Housing, 1 Circuit

409010400

$7.62

PPD2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

PPD2

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

PPG1

Female Terminal

409010100

$5.61

PPG1

Female Terminal Housing, 1 Circuit

409010400

$7.62

PPG1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

PPG1

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

PPG2

Female Terminal

409010100

$5.61

PPG2

Female Terminal Housing, 1 Circuit

409010400

$7.62

PPG2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

PPG2

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

R1

Resistor

710002674

$3.28
