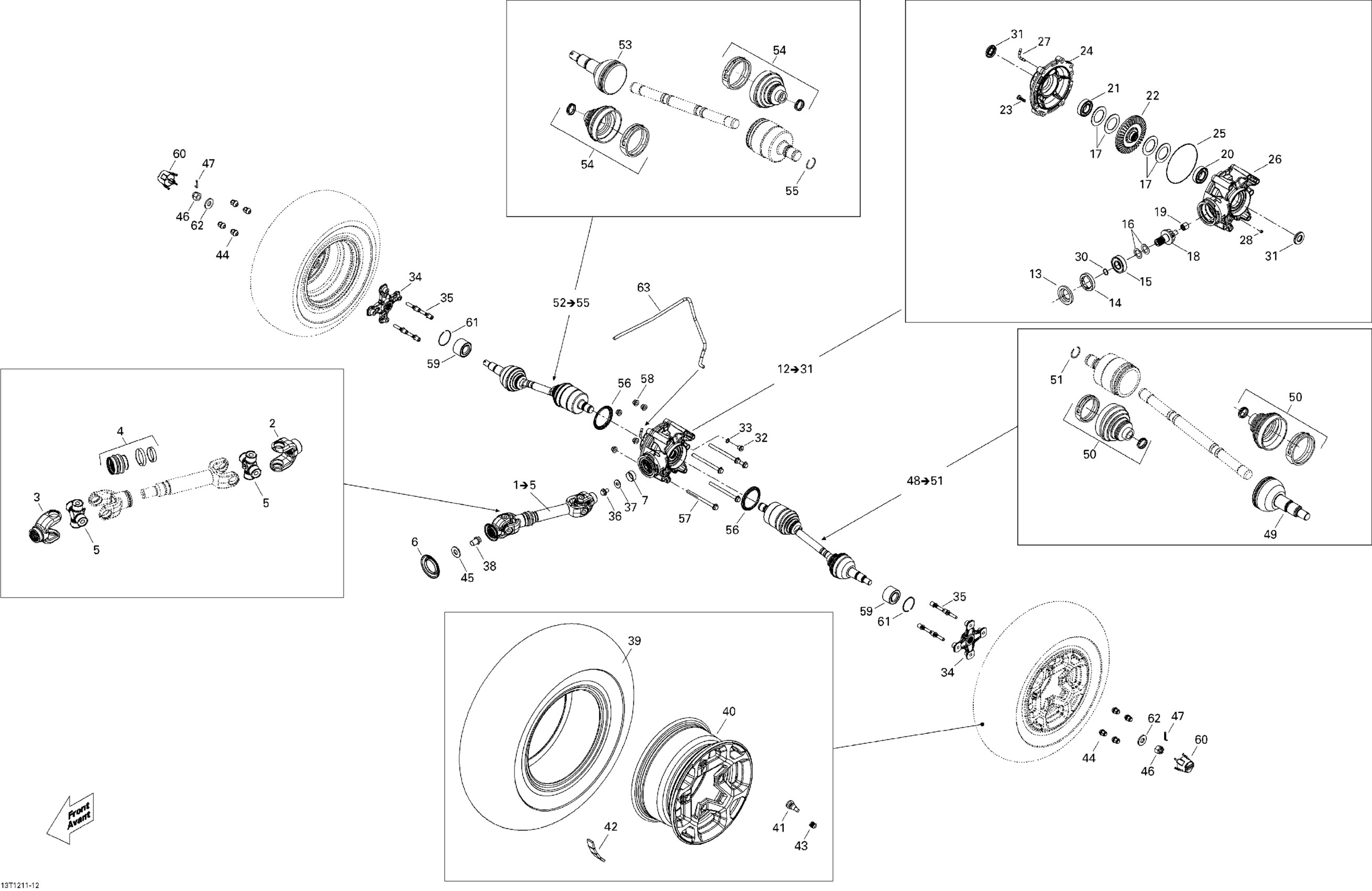

Can-Am Outlander STD, XT, 1000 EFI, 2012 08- Drive System, Rear Diagram

#

Description
Price

1

Shaft Ass'y Kit | Incldues 1 to 5

703500991

$328.49

2

Fixe Yoke

715900101

$29.49

3

Fixed Joint

715900129

$24.99

4

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

5

Universal Joint

715900326

$68.99

6

Protector

705501123

$7.55

7

Wear Ring | 4X4

705400036

$26.49

12

Rear Differential Ass'y | Includes 12 to 31

705501419

Unavailable

13

Oil Seal | 4X4

705401481

$19.49

14

Nut

705502059

$32.99

15

Ball Bearing | 4X4

705500260

$31.99

16

Pinion Gear Shim .022"

705500075

Unavailable

16

Pinion Gear Shim 1.67 mm

705502061

$18.99

16

Pinion Gear Shim

705501162

$16.49

17

Differential Shim 0.02 mm

705502060

$13.76

18

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

19

Needle Bearing

705501408

$69.99

20

Ball Bearing

705502737

$48.49

21

Ball Bearing

705502738

$59.49

22

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

23

Screw | 4X4

705401601

$10.49

24

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

25

Seal | 4X4

705500265

$18.76

26

PINION REAR COVER - Call your local BRP dealership

705501395

Unavailable

27

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

28

Drain Plug | 4X4

705500894

$11.49

30

O-Ring | 4X4

705500267

$7.65

31

Oil Seal

705501996

$21.99

32

Fill Level Plug | 4X4

705500504

$10.01

33

Copper Washer | 4X4

705500506

$0.45

34

Wheel Hub Ass'y

705501716

$105.99

35

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

36

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

37

Flat Washer M12

250200102

$2.11

38

Hex Flange Screw M12 X 16

250001039

$2.11

39

Tire | STD

705501767

$179.99

39

Tire | XT, C/U, INT

705501769

$169.99

39

Rear Tire | Traxter 5 Speed XT

705501770

$190.99

40

Silver Rear Rim | STD

705501460

$201.49

40

Black, Rim | XT

705501856

$201.49

40

Black, Rear Rim | XT CAMO

705501493

$190.49

41

Rim Valve With Cap

705400193

$8.69

42

1/2 Oz Weight

219704465

$3.89

43

Valve Cap

293000110

$1.59

44

Steel Wheel Nut

250100042

$3.98

44

Black, Wheel Nut M10 X 1.25

250100184

$4.51

45

Flat Washer M12

250200102

$2.11

46

Hex. Flange Castellated Nut M18

232291413

$7.98

47

Cotter Pin

250400036

$2.11

48

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

49

CV JOINT - Call your local BRP dealership

705500980

Unavailable

50

Boot Kit

705500870

$42.49

51

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

52

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

53

CV JOINT - Call your local BRP dealership

705500980

Unavailable

54

Boot Kit

705500870

$42.49

55

CIRCLIP - Call your local BRP dealership

705500845

Unavailable

56

Wear Ring

705501124

$7.90

57

Hex. Flange Screw M10 X 135

250001041

$5.59

58

Hex. Flange Elastic Nut M10

233201436

$2.11

59

Ball Bearing

293350150

$52.99

60

Wheel Cap

705400928

$10.49

61

Circlip

293370019

$4.68

62

Conical Spring Washer M18

250200171

$7.65

63

Polyurethane Hose 10000Mm Long

219704410

$56.99
