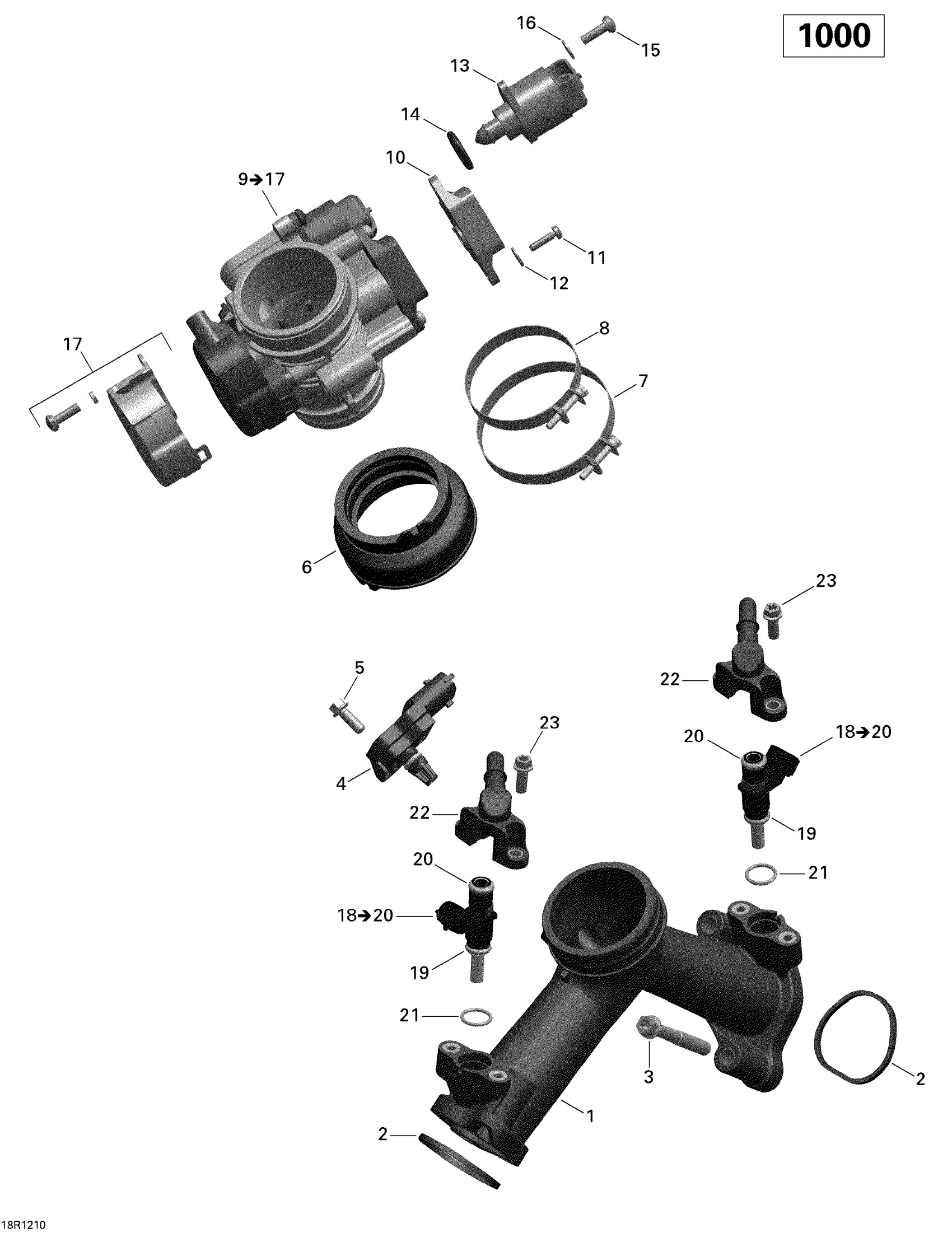

Can-Am Outlander STD, XT, 1000 EFI, 2012 02- Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667520

$73.99

2

Gasket

420630642

$5.39

3

Torx Flange Screw M8 X 55

420641213

$7.41

4

Pressure And Temperature Sensor

707000995

$88.99

5

Torx Flange Screw M6 X 16

420641048

$2.96

6

Intake Neck

420267045

$12.12

7

Clamp

420251209

$8.57

8

Clamp

420251480

$14.28

9

Throttle Body Ass'y | Includes 8 to 16

420685326

$709.99

10

Position Sensor

420866120

$98.99

11

Phillips Screw M4 X 16

208641660

$0.90

12

Flat Washer 4 mm, Stainless

234042600

$1.15

13

Idle Air Control Valve

420665941

$179.99

14

O-Ring

420631780

$4.44

15

Binding Head Screw M5 X 16

420440911

$14.28

16

Snap Ring

420845710

$4.12

17

Cover Kit

420281540

$20.99

18

Injection Valve Ass'Y | Includes 18 to 20

420874833

$158.99

19

O-Ring

420431890

$7.49

20

O-Ring

420631220

$14.28

21

O-Ring

420631296

$0.76

22

Fuel Rail

420874901

$24.49

23

Torx Flange Screw M6 X 16

420641048

$2.96
