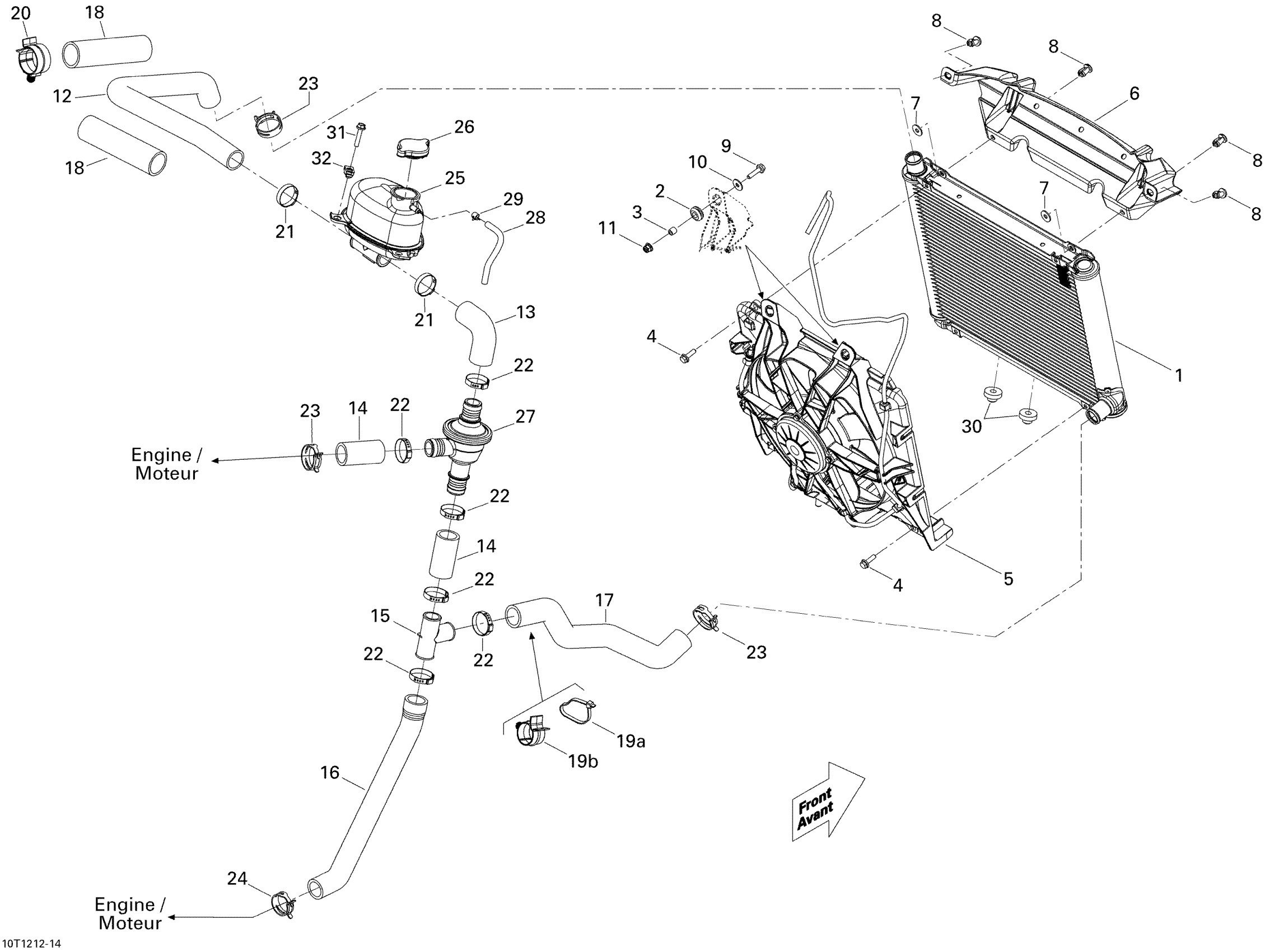

Can-Am Outlander STD, XT, 1000 EFI, 2012 01- Cooling System Diagram

#

Description
Price

1

Radiator

709200286

$476.99

2

Grommet

709000582

$4.69

3

Bushing

293900105

$7.65

4

Hex. Flange Screw M6 X 20

207662034

$2.11

5

Fan Ass'y

709200564

$244.99

6

Air Deflector | Outlander

709200393

$15.87

7

Flat Washer 8 mm

234081410

$0.83

8

Tuflok Plastic Rivet

293150230

$1.47

9

Hex. Flange Screw M6 X 25

207662534

$2.11

10

Flat Washer

250200082

$0.42

11

Flange Elastic Nut M6

233261434

$4.44

12

Radiator Inlet Hose

709200278

$34.99

13

THERMOSTAT INLET HOSE - Call your local BRP dealership

709200280

Unavailable

14

Hose

709200299

$8.60

15

T-Fitting

509000219

$15.89

16

Hose

709200392

$17.57

17

Radiator Outlet Hose

709200390

$15.36

18

Tubing 35 MM 1000MM Long

219704428

$10.99

19a

Not Available As Spare Parts

XXX

Unavailable

19b

Retainer

275500590

$9.69

20

Retainer

275500590

$9.69

21

Gear Clamp

509000162

$7.29

22

Gear Clamp

509000162

$7.29

23

Norma Spring Clamp

293650166

$4.44

24

Norma Spring Clamp

293650108

$4.12

25

Coolant Tank

709200297

$55.99

26

Radiator Pressure Cap

709200207

$25.49

27

Thermostat

709200406

$98.99

28

Polyurethane Hose 10000Mm Long

219704410

$56.99

29

Spring Clamp

414554800

$0.88

30

Grommet

709200285

$9.69

31

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

32

Panel Nut M6 X 1.0

250100198

$2.11
