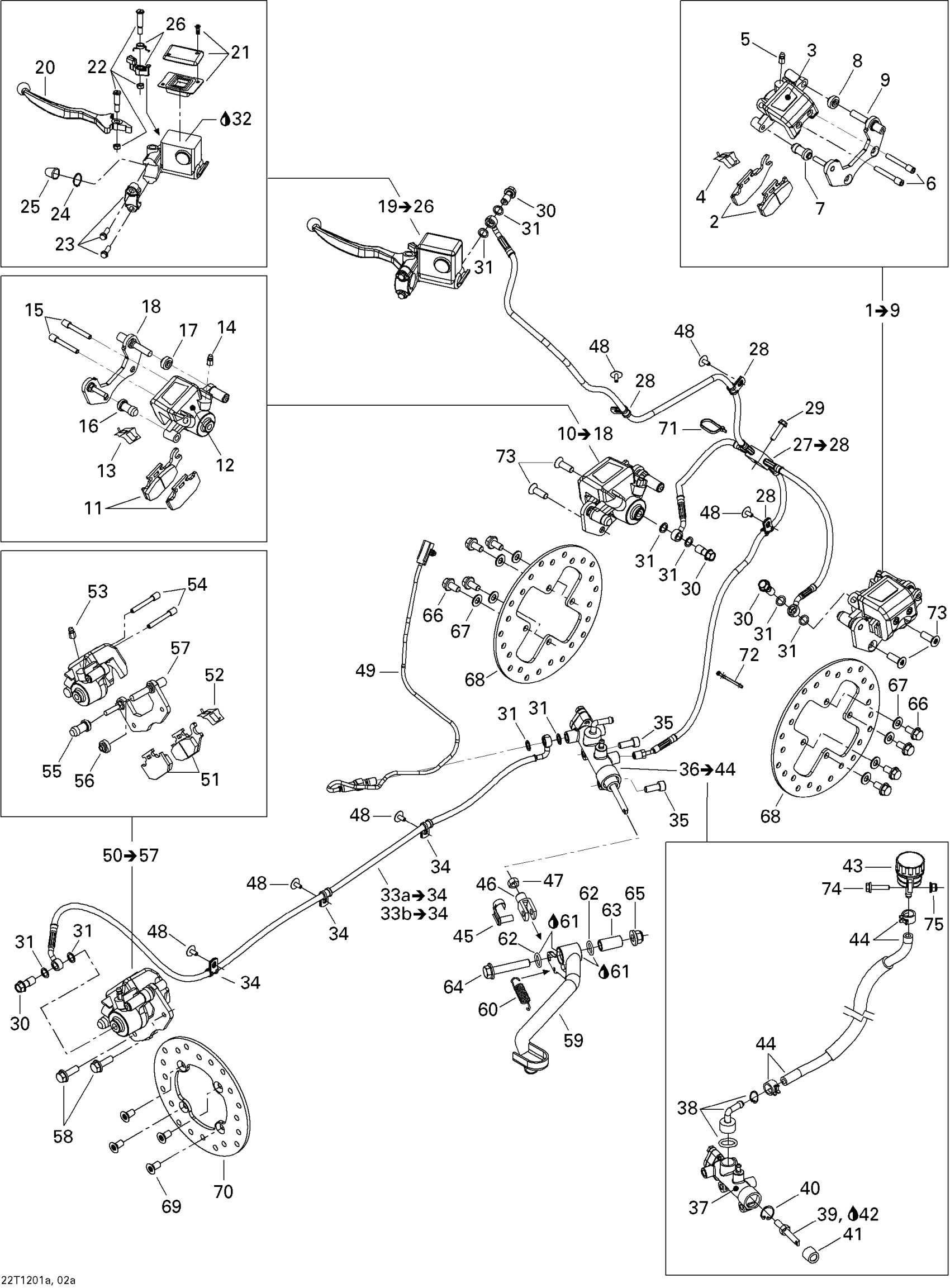

Can-Am Outlander Max STD, XT, 400 EFI, 2012 06- Hydraulic Brakes Diagram

#

Description
Price

1

RH Caliper | Includes 1 to 9

705600575

$280.99

2

Brake Pad Kit

705600349

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH Caliper | Includes 10 to 18

705600576

$280.99

11

Brake Pad Kit

705600350

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$229.99

20

Lever Arm

705600243

$54.99

21

Cap Set

705600084

$24.99

22

Brake Lever Bolt Kit

705600246

$14.81

23

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

24

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

25

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

26

PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership

705600477

Unavailable

27

Front Hose | Includes 28 to 29

705600925

$169.49

28

Clamp

293650256

$5.49

29

Hexagonal Head Screw

210262050

$2.11

30

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

31

Copper Washer

705601628

$4.44

32

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

33a

Not Available As Spare Parts

XXX

Unavailable

33b

REAR HOSE - Call your local BRP dealership | Includes 34 to 35

705600581

Unavailable

34

Clamp

293650256

$5.49

35

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

36

Master Cylinder | Includes 36 to 44, STD Model

705600751

$229.99

37

Piston Set

705600255

$64.49

38

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Circlip

705600068

Unavailable

41

Compression Boot

705600090

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

44

OIL HOUSING HOSE - Call your local BRP dealership

705600754

Unavailable

45

Pin Kit

219702305

$34.99

46

Yoke

705600100

Unavailable

47

Hex. Nut M8

232081414

$0.72

48

Pop Rivet 3/16”

390910000

$0.57

49

Brake Switch

705600798

$51.99

50

Rear Caliper | Includes 48 to 56

705600577

$317.99

51

LH Brake Pad Kit

705600398

$51.99

52

Spring

705600079

$15.81

53

Bleeding Screw

705600080

$16.87

54

Pin Set (2)

705600081

$20.49

55

Compression Boot

705600082

$10.06

56

Compression Boot

705600083

$10.06

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

59

BRAKE PEDAL, BLACK - Call your local BRP dealership

705601154

Unavailable

60

Brake Pedal Spring

705600792

$9.10

61

Synthetic Grease, 400 G

293550010

Unavailable

62

O-Ring

293300144

$3.82

63

Inner Spacer

705600815

$11.60

64

Hex. Flange Screw M10 X 55

207605544

$3.38

65

Hex. Flange Elastic Nut M10

233201414

$1.58

66

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

67

Conical Spring Washer M8

234281474

$1.48

68

Disk Brake

705600603

$50.99

69

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

70

Disk Brake

705600604

$50.99

71

Tie-Rap 180 mm

414115200

$0.11

72

Tie-Rap 180 mm

414115200

$0.11

73

Torx Screw M8 X 25, Scotch Grip

250000143

$2.19

74

Hex. Flange Screw M6 X 25

207662544

$0.64

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
