Description

Price

1

Torx Flange Screw M8 X 65

420440402

$7.41

2

Torx Flange Screw M6 X 45

420440324

$0.98

3

Seal Washer

420230415

$1.79

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Oil Seal

420930392

$15.81

6

Torx Flange Screw M6 X 16

420440162

$3.17

7

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

8

O-Ring

420431580

$14.83

9

Not Available As Spare Part - Friction Washer

Unavailable

10

CLIP - Call your local BRP dealership

420960892

Unavailable

11

Stator Plate, 420W

420685920

$319.49

12

MAGNETO FLYWHEEL - Call your local BRP dealership

420296903

$579.99

13

Torx Flange Screw M6 X 35

420440274

$1.01

14

Torx Flange Screw M6 X 16

420440162

$3.17

15

Inner Cable Cover

420251270

$12.12

16

Lock Washer, 22 mm

420945759

$1.90

17

Hex. Nut, M22 X 1.5

420842239

$17.53

18

Torx Flange Screw M6 X 16

420440162

$3.17

19

Speed Sensor

420265723

$109.99

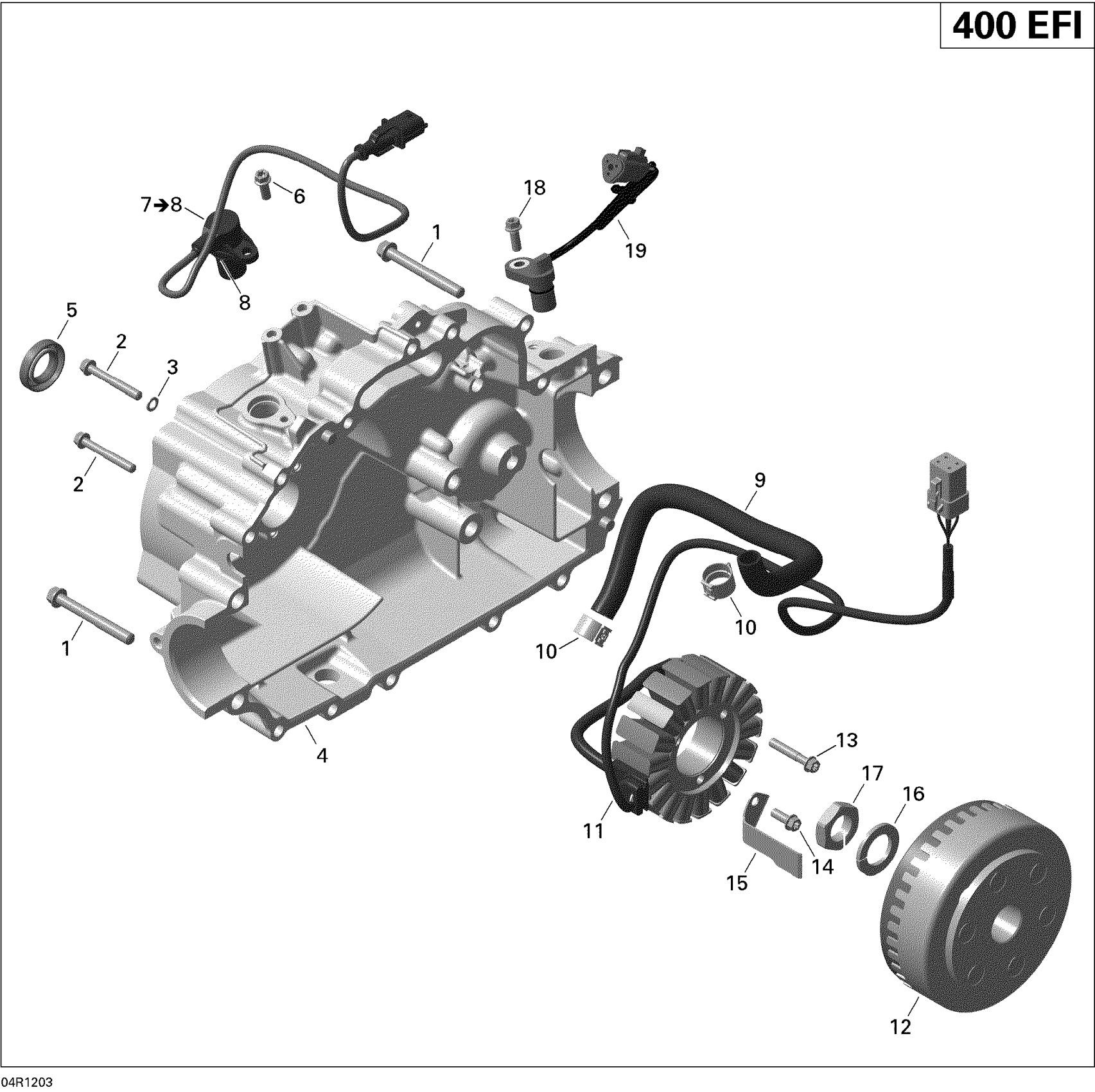

Can-Am Outlander Max STD, XT, 400 EFI, 2012 03- Magneto Diagram

Torx Flange Screw M8 X 65

Torx Flange Screw M6 X 45

Seal Washer

Not Available As Spare Part - Friction Washer

Oil Seal

Torx Flange Screw M6 X 16

Crankshaft Position Sensor Ass'y | Includes 10 to 11

O-Ring

Not Available As Spare Part - Friction Washer

CLIP - Call your local BRP dealership

Stator Plate, 420W

MAGNETO FLYWHEEL - Call your local BRP dealership

Torx Flange Screw M6 X 35

Torx Flange Screw M6 X 16

Inner Cable Cover

Lock Washer, 22 mm

Hex. Nut, M22 X 1.5

Torx Flange Screw M6 X 16

Speed Sensor
