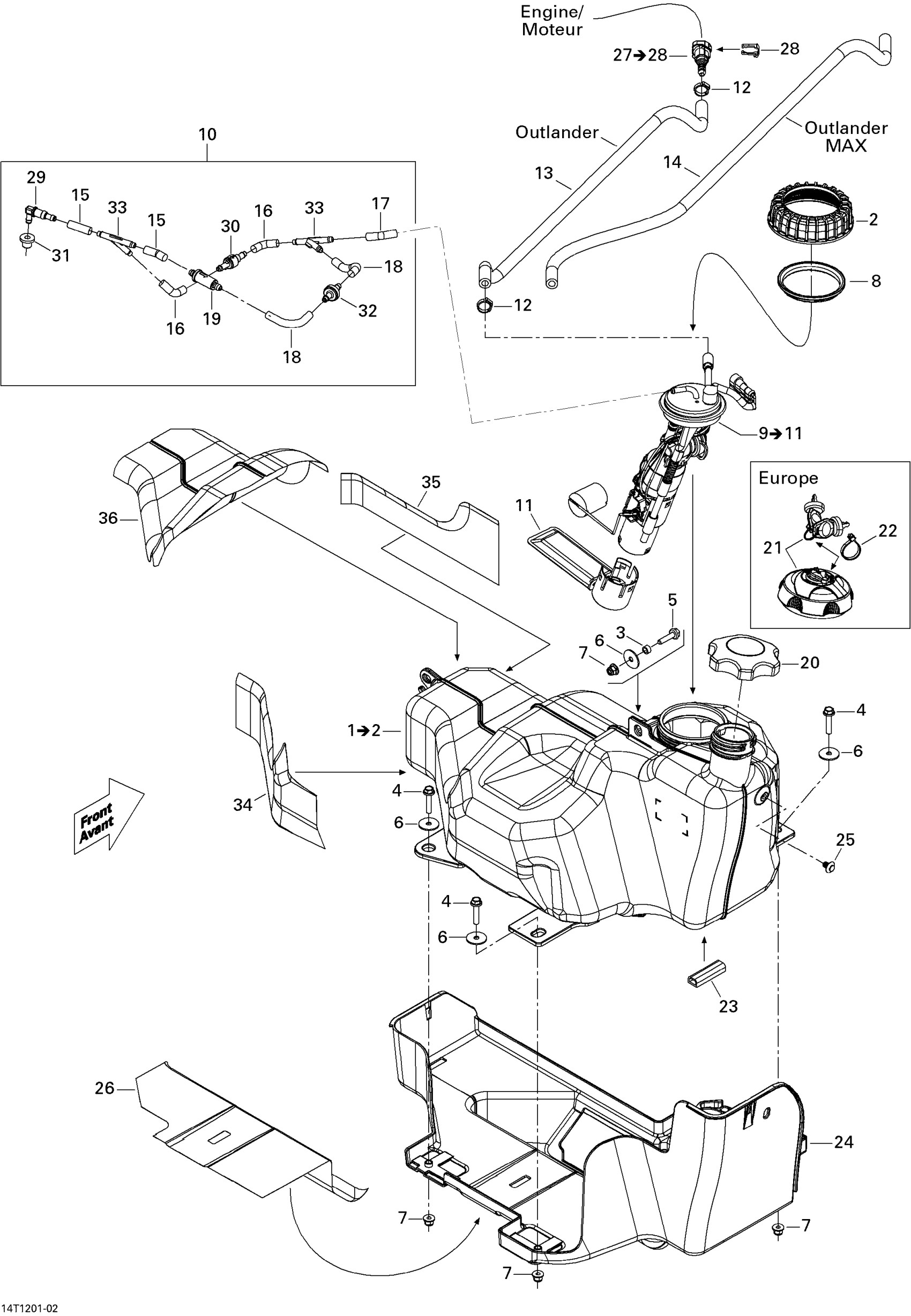

Can-Am Outlander Max STD, XT, 400 EFI, 2012 02- Fuel Tank Diagram

#

Description
Price

1

Fuel Tank Ass'y

709000220

$249.99

2

Nut, Fuel Pump Module

513033040

$29.99

3

Bushing | DS 650 X

293900104

$5.50

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

5

Hex. Flange Screw M6 X 25

207662534

$2.11

6

Washer

224060251

$0.58

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Seal

709000208

$14.99

9

Fuel Pump Kit Ass'y

703500766

$372.49

10

Fuel Vent Kit

715001288

$33.99

11

Fuel Pre-Filter Kit

709000389

$79.49

12

Oetiker Clamp

293650046

$2.89

13

Not Available As Spare Parts

XXX

Unavailable

14

Was 709000163 Fuel Line

219704440

$28.99

15

Polyurethane Hose 10000Mm Long

219704410

$56.99

16

Polyurethane Hose 10000Mm Long

219704410

$56.99

17

Polyurethane Hose 10000Mm Long

219704410

$56.99

18

Polyurethane Hose 10000Mm Long

219704410

$56.99

19

Filter

709000330

$7.79

20

Fuel Tank Cap

513033025

$24.49

21

Fuel Tank Cap | Europe

709000267

$45.49

22

Tie Wrap 94 mm | 4X4

293750001

$1.03

23

Was 293200017 Neoprene Seal

219704365

$149.99

24

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

25

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

Unavailable

26

REFLECTING SHEET - Call your local BRP dealership

709000360

Unavailable

27

Female Quick Fitting Ass'y

709000125

$15.49

28

Locking Clip

513033135

$5.89

29

Elbow Male Connector

414580600

$4.23

30

Check Valve

513033469

$31.99

31

Grommet

293720029

$1.59

32

Check Valve

275500398

$10.99

33

Y-Fitting

293710059

$9.69

34

REFLECTING SHEET - Call your local BRP dealership

709000204

Unavailable

35

REFLECTING SHEET - Call your local BRP dealership

709000205

Unavailable

36

REFLECTING SHEET - Call your local BRP dealership

709000206

Unavailable
