Description

Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 1145

710002601

Unavailable

33

Wire Seal

278000999

$3.19

44

Female Terminal

515175231

$4.39

54

Female Housing, 3 Circuits

515175495

$16.18

62

Female Terminal

278001014

$3.28

69

Female Housing, 3 Circuits

409209600

$35.99

70

Female Housing, 4 Circuits

409209700

$16.18

73

Wire Seal

278001013

$3.28

77

Female Terminal

409010300

$4.39

79

Female Terminal

710000038

$4.55

99

Open Barrel

278000992

$2.21

110

Male Terminal

278000631

$4.39

127

Male Lock, 3 Circuits

409207600

$3.19

138

Sealing Cap

293000052

$3.19

188

Tubing 12 mm

409902000

Unavailable

196

Tie Wrap 142 mm

293750002

$1.25

227

Male Terminal

409004300

$5.61

228

Female Terminal

409007300

$0.45

229

Female Terminal

278000223

$3.19

231

Female Housing, 2 Circuits

278000217

$9.59

238

Male Housing, 3 Circuits

278000273

$9.59

242

Wire Seal

278000218

$4.39

244

Wire Seal

278000216

$3.19

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

260

Was 515175319 Tubing 22 mm

219704423

$14.99

279

Male Terminal

409011300

$5.93

280

Female Terminal

409012100

$4.55

286

Seal

409012300

$4.54

295

Insulated Sheath

278001008

$3.28

297

Insulated Sheath

278001007

$3.58

301

Diode

409012700

$11.12

333

Fuse Holder

278001325

$8.79

334

Female Housing, 6 Circuits

710000081

$8.79

355

Female Housing, 2 Circuits

515175658

$16.18

359

Male Housing

515175666

$15.49

365

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

370

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

371

Male Wedge, 6 Circuits

515175678

$5.39

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

409

Plug

515175812

$2.19

410

Female Housing, 24 Circuits

515175801

$9.59

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$2.99

415

Female Terminal

515175806

$0.99

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

442

Male Housing, 4 Circuits

710000329

$15.36

443

Female Terminal

710000335

$2.29

458

Female Terminal

710000357

$7.69

464

Female Terminal

710000274

$9.59

484

Seal

415128501

$1.89

498

Female Housing

710000399

$16.49

499

Wire Seal

710000402

$4.55

506

Female Terminal

710000421

$6.11

524

Not Available As Spare Part - Friction Washer

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

527

Not Available As Spare Part - Friction Washer

Unavailable

535

PROTECTOR CAP - Call your local BRP dealership

710000496

Unavailable

579

Wire Seal

710000504

$4.39

641

Male Housing, 2 Circuits

710000667

$8.32

651

Connector

710000722

$9.95

666

Little Fuse, 5 Amperes

710000742

$8.79

667

Little Fuse, 7.5 Amperes

710000743

$8.49

670

Little Fuse, 20 Amperes

710000746

$8.49

672

Diode

710000748

$11.12

675

Fuse Box Base Ass´y

415129856

$50.99

684

Fuse Puller

710000781

$8.09

700

Male Terminal Housing, 6 Circuits

710000835

$17.04

702

Female Terminal

710000836

$5.61

703

Female Terminal

710000837

$5.39

706

Cap

710000840

$5.89

709

Lock

710000848

$3.19

711

Male Housing, 6 Circuits

710000849

$9.69

732

Female Terminal

710000877

$9.12

734

Female Housing, 3 Circuits

710000879

$25.99

736

Seal

710000881

$17.99

737

Cap

710000882

$11.49

750

Terminal

710000913

$5.61

757

Female Terminal

278001665

$4.55

764

Clip

710000992

$4.29

769

Bus Bar

278002165

$8.79

773

Fuse Cover

710001026

$21.99

778

Bus Bar

278002165

$8.79

831

Female Terminal

710001131

$8.89

847

HOUSING - Call your local BRP dealership

710001315

Unavailable

849

Wire Seal

710001159

$6.35

850

Female Terminal

710001160

$6.35

851

Housing

710001161

$11.12

852

Lock

710001162

$3.19

853

Wire Seal

710001163

$7.69

854

Female Terminal

710001164

$8.89

880

Cap

710001114

$18.49

889

Seal

710001233

$3.19

890

Terminal

710001229

$3.19

894

Cap

710001225

$9.19

917

Lock

710001323

$7.55

918

Female Terminal

278002261

$7.55

946

Foam

278002172

$5.89

976

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

981

Relay, 30 AMP

515176774

$21.99

999

Not Available As Spare Part - Friction Washer

Unavailable

1001

LOCK - Call your local BRP dealership

710001633

Unavailable

1003

Terminal

710001636

$3.19

1004

SEAL - Call your local BRP dealership

710001637

Unavailable

1015

Female Terminal Housing, 12 Circuits

278002377

$49.99

1037

Relay

715900824

$21.99

1042

Hex. Flange Elastic Nut M6

233261494

$1.58

1087

Terminal Joint

710001905

$2.09

1129

Fuse Box

710002039

Unavailable

1145

FUSE RELAY LOGO - Call your local BRP dealership

710001972

Unavailable

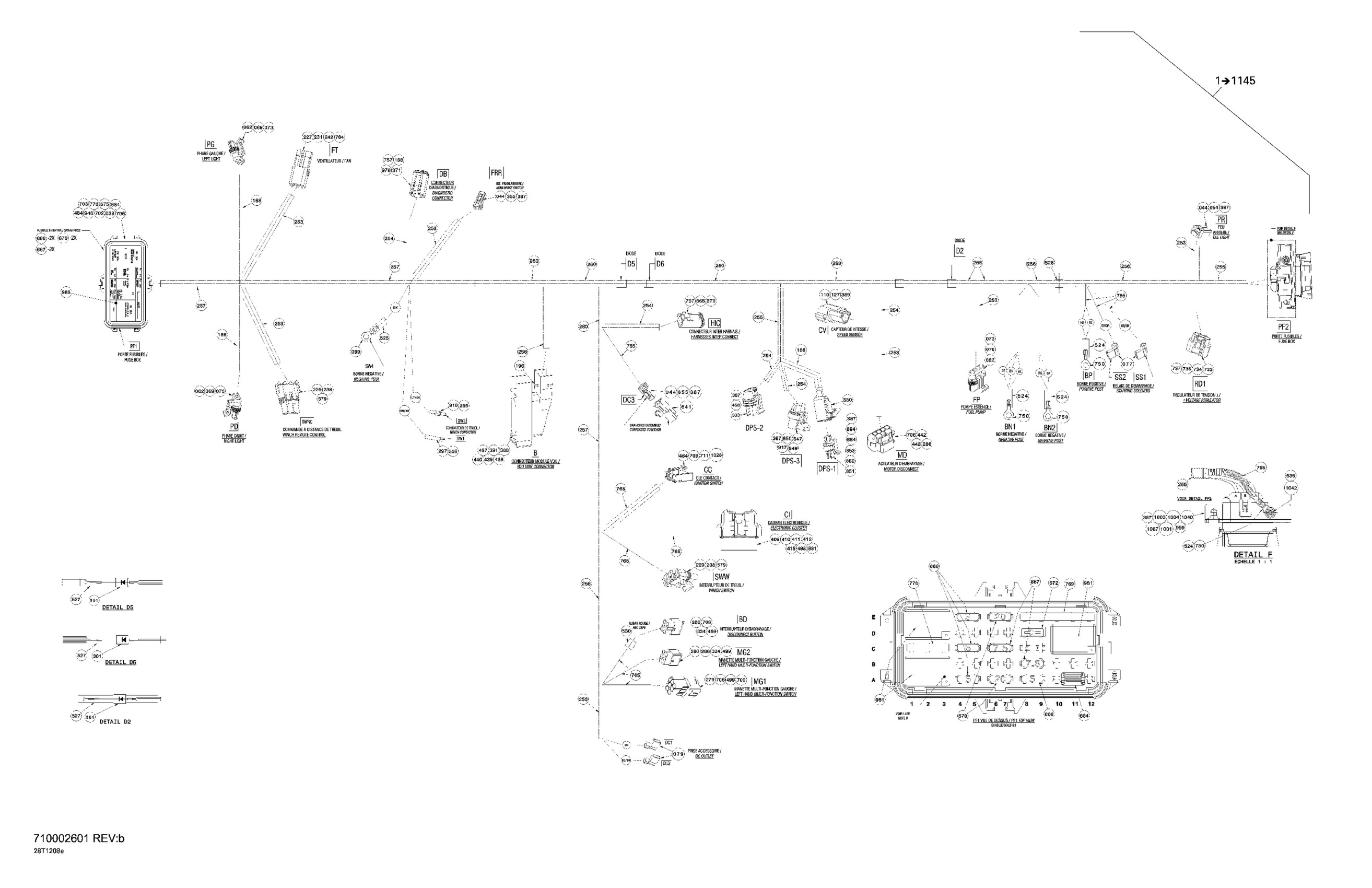

Can-Am Outlander MAX 800REFI STD, XT & XT-P, 2012 10- Main Harness XTP Diagram
