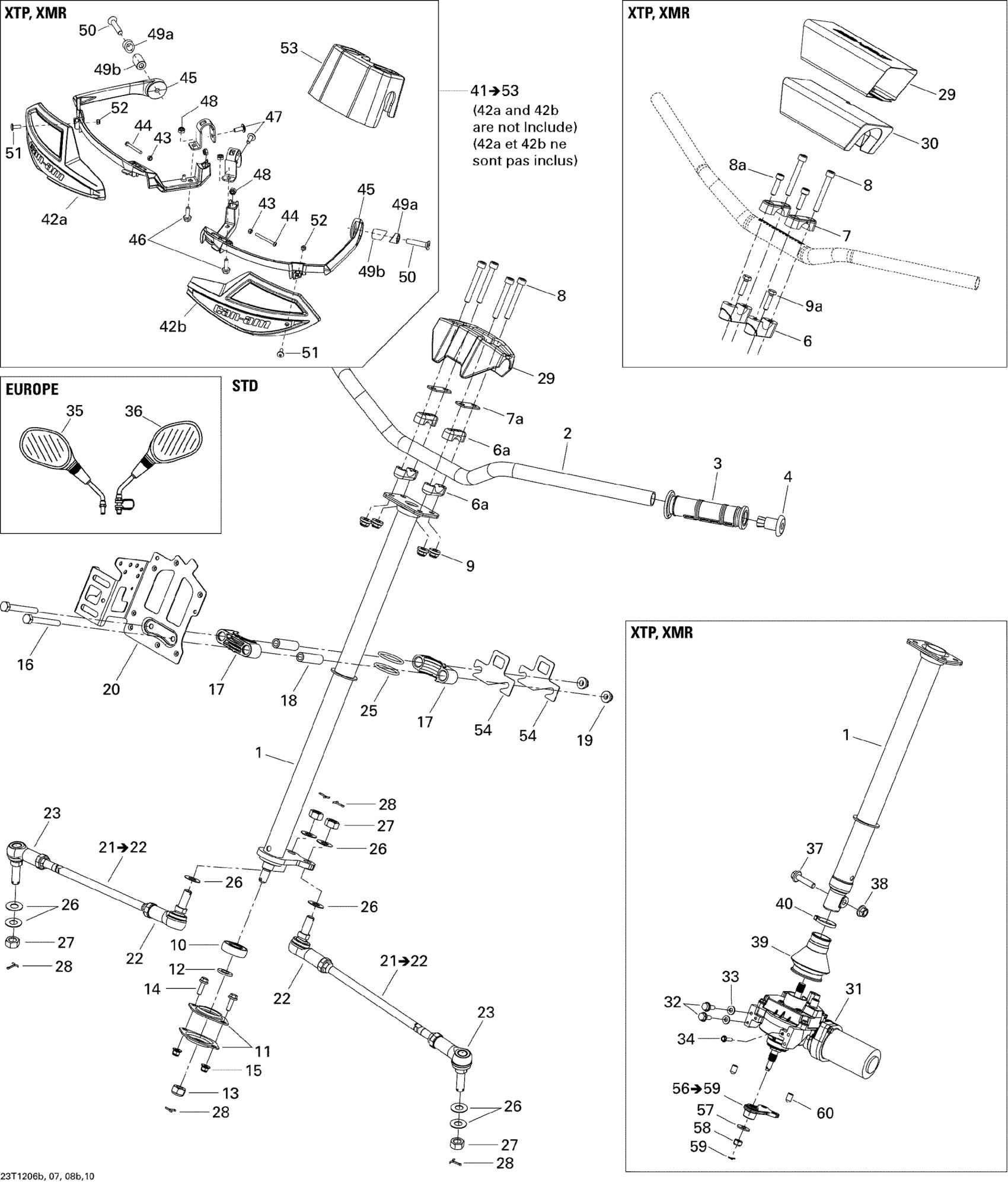

Can-Am Outlander MAX 800REFI STD, XT & XT-P, 2012 07- Steering XTP Diagram

#

Description
Price

1

Tube-Main

715900573

$129.99

2

Aluminum Handle Bar

709400513

$63.49

3

Handle Grip

709400493

$14.83

4

Not Available As Spare Parts

XXX

Unavailable

6

Lower Mounting Clamp

709402750

$25.99

6a

Not Available As Spare Parts

XXX

Unavailable

7

Support

709400496

$22.49

7a

Not Available As Spare Parts

XXX

Unavailable

8

Socket Head Screw M8 X 60

205086060

$4.12

8a

Socket Screw M8 X 30

205083060

$2.96

9

Hex. Elastic Flange Nut M8

233281416

$1.48

9a

Hex. Screw M8 X 30

207183060

$1.58

10

Not Available As Spare Parts

XXX

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Not Available As Spare Parts

XXX

Unavailable

16

Hex. Screw M8 X 70

207087044

$2.19

17

Half Bushing

709400471

$14.30

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

21

Tie Rod Ass'y

709401059

$68.99

22

LH Ball Joint

709402303

$36.99

23

Ball Joint, RH Threads

709400487

$52.99

25

O-Ring

293300068

$7.65

26

Hardened Washer

706200281

$2.85

27

Nut M12

250100099

$2.09

28

Cotter Pin

211400013

$0.37

29

Cover B-190

709402414

$30.99

30

Foam

709400422

$17.49

31

Power Steering

709401608

$1,010.49

32

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

33

Conical Spring Washer M8

234281474

$1.48

34

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$2.00

35

LH Mirror | Europe

709400406

$32.99

36

RH Mirror | Europe

709400523

$35.99

36

RH Mirror | Europe

709400407

$47.49

37

Hex. Flange Screw M8 X 35

207683544

$1.69

38

Hex. Flange Elastic Nut M8

233281414

$1.47

39

Bellows

709400674

$18.99

40

Tie-Rap 180 mm

414115200

$0.11

41

Air Deflector Support Kit | X

715001378

$138.49

42a

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

42b

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

43

Socket Head Screw M4 X 40 | X

205444086

$1.69

44

Elastic Stop Nut M4

232541414

$0.58

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Hex. Flange Screw M6 X 20

207662044

$2.00

47

Torx Screw M6 X 16

250000223

$2.11

48

Hexagonal Nut M6

232061404

$0.34

49a

Small Bracket | DS 650 X

709400161

$21.99

49b

Large Bracket | DS 650 X

709400162

$20.99

50

Socket Head Screw | X

205384034

$6.49

51

Torx Screw M5 X 14

250000742

$1.47

52

Hex. Elastic Nut M5 | X

232551600

$1.15

53

Steering Cover | STD

709400278

$13.99

54

SHIM 2 MM - Call your local BRP dealership

709400734

Unavailable

54

SHIM 1 MM - Call your local BRP dealership

709400735

Unavailable

56

LOWER MAIN TUBE KIT - Call your local BRP dealership | Includes 25 to 27

703500784

$50.99

57

Hardened Washer

706200281

$2.85

58

Hex. Flange Elastic Nut M12

250000047

$1.90

59

Cotter Pin

250400034

$2.11

60

CAP - Call your local BRP dealership | XT

709401032

Unavailable
