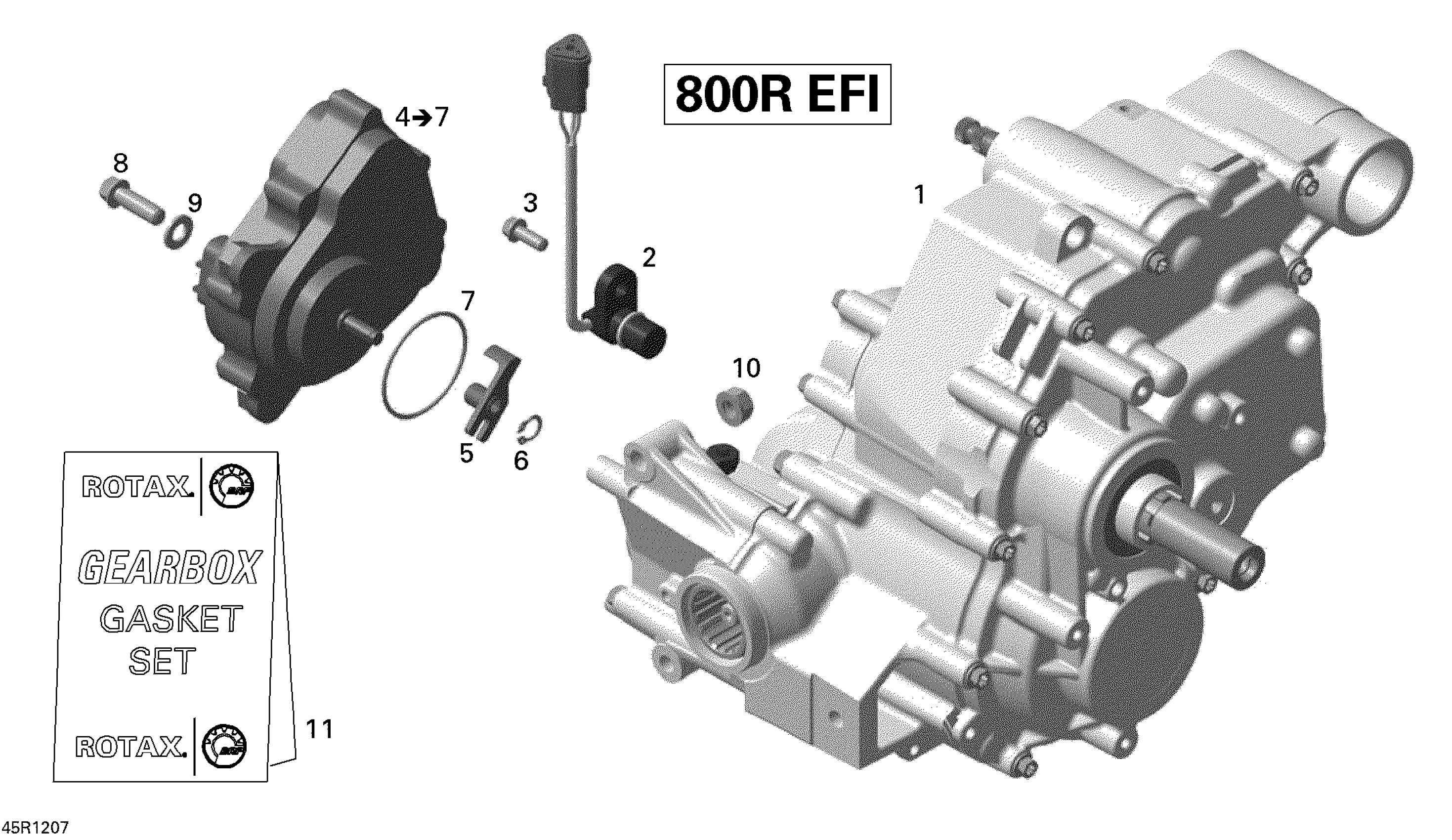

Can-Am Outlander MAX 800REFI STD, XT & XT-P, 2012 01- Gear Box Assy and 4x4 Actuator Diagram

#

Description
Price

1

Gear Box

420686714

$2,089.99

2

Speed Sensor

420265723

$109.99

3

Torx Flange Screw M6 X 16

420641048

$2.96

4

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$284.99

5

Shifting Fork

415129175

$16.49

6

Circlip | 4X4

293370042

$3.17

7

O-Ring

293300117

$4.44

8

Torx Flange Screw M8 X 25

420440372

$4.12

9

Flat Washer 8.4 mm

420250315

$1.15

10

Hex. Nut M8

420842619

$2.35

11

Gasket Set, Gearbox

420684134

$68.99
