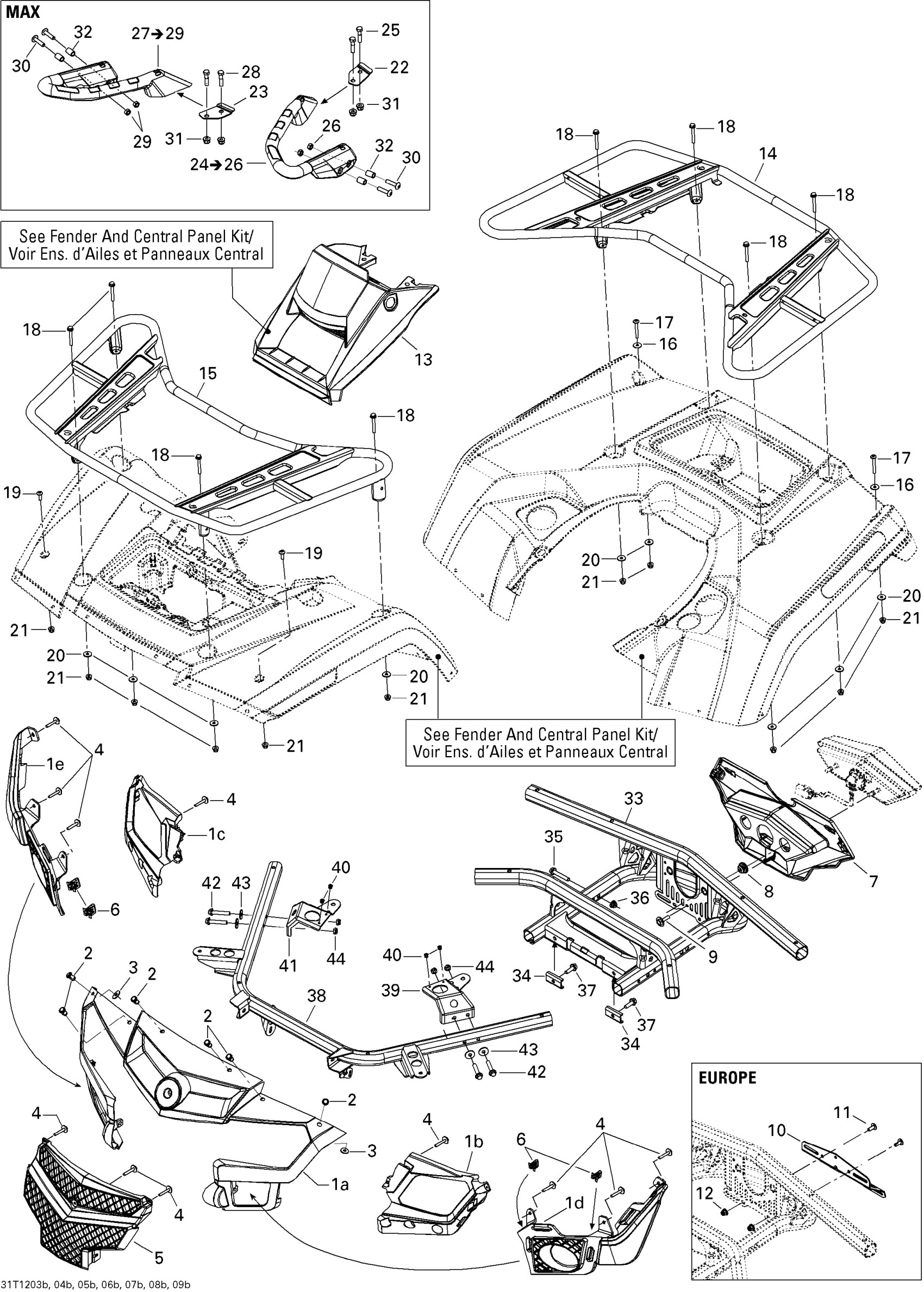

Can-Am Outlander MAX 800REFI LTD, 2012 09- Body And Accessories 2 Diagram

#

Description
Price

1a

FRONT FASCIA, ORBITAL BLUE - Call your local BRP dealership | Orbital Blue Model

705004778

Unavailable

1a

FRONT FACIA, MAGNESIUM PAINTED - Call your local BRP dealership | Magnesium

705005043

Unavailable

1b

LH Head Lamp Support

705002825

$27.99

1c

RH Head Lamp Support

705002826

$27.99

1d

LH LOWER FRONT FACIA - Call your local BRP dealership

705002780

Unavailable

1d

LH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002889

Unavailable

1e

RH LOWER FRONT FACIA - Call your local BRP dealership

705002781

Unavailable

1e

RH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002890

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

Washer

506151252

$3.17

4

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

5

UPPER GRILL - Call your local BRP dealership

705002779

Unavailable

6

Edge Clip

517302785

$0.88

7

Rear Facia

705003840

$45.99

8

Stopper Rubber

705014429

$5.95

9

Screw M4 X 16

250000725

$3.49

10

SUPPORT - Call your local BRP dealership | Europe

705002499

Unavailable

11

Torx Screw M6 X 16

250000755

$0.87

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Dashboard

705003490

$46.99

14

Rear Luggage Rack

705002617

$275.49

15

Front Luggage Rack

705002616

$275.49

16

Flat Washer

250200040

$1.90

17

Torx Truss Screw M6 X 50

250000749

$3.17

18

Hex. Screw M6 X 55

207065544

$2.11

19

Torx Screw M6 x 25

250000284

$2.11

20

Flat Washer

224061201

$1.37

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

LH FIXATION PLATE - Call your local BRP dealership

705002762

Unavailable

23

RH FIXATION PLATE - Call your local BRP dealership

705002760

Unavailable

24

LH HANDLE - Call your local BRP dealership | Includes 24 to 26

705002700

Unavailable

25

Hex. Screw M8 X 35

207083544

$1.15

26

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

27

RH HANDLE - Call your local BRP dealership | Includes 27 to 29

705002699

Unavailable

28

Hex. Screw M8 X 35

207083544

$1.15

29

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

30

TORX SCREW M8 X 35 - Call your local BRP dealership | Max

250000441

Unavailable

31

Hex. Flange Elastic Nut M8

233281414

$1.47

32

Bushing

705002153

$11.99

33

Rear Support

705003656

$275.49

34

U Reinforcement

705003647

$8.19

35

Hex. Flange Screw M8 X 50

207685044

$1.69

36

Hex. Flange Elastic Nut M8

233281414

$1.47

37

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

38

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

39

LH ANCHOR PLATE - Call your local BRP dealership

705002995

Unavailable

40

Pop Rivet 3/16"

390402300

$0.75

41

RH Anchor Plate

705002997

$18.49

42

Hex. Flange Screw M8 X 45

207684544

$3.80

43

Flat Washer 8 mm

234082410

$1.47

44

Hex. Elastic Stop Nut M8

232581414

$0.56
