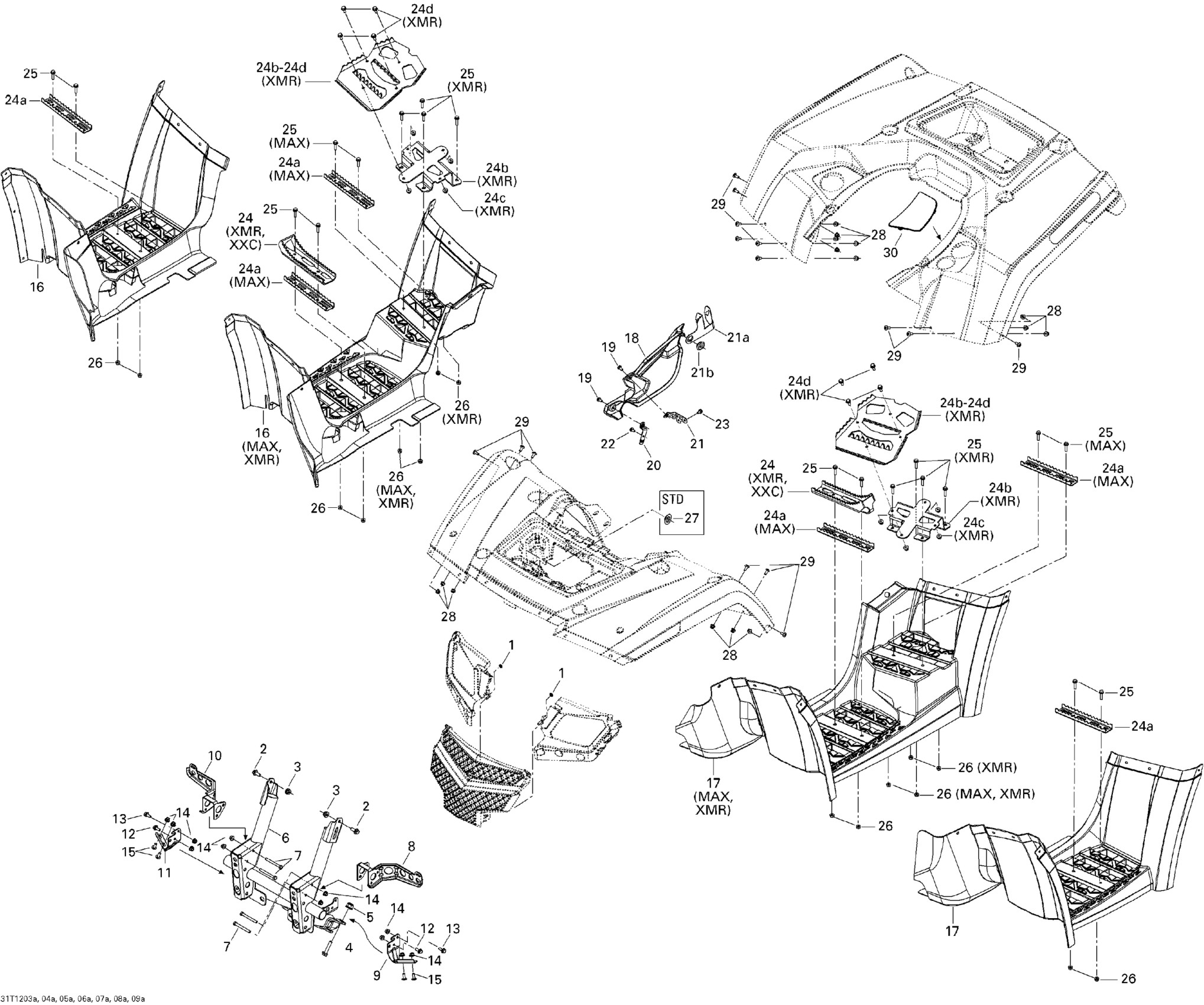

Can-Am Outlander MAX 800REFI LTD, 2012 09- Body And Accessories 1 Diagram

#

Description
Price

1

Push Nut

732610072

$2.19

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Hex. Flange Screw M10 X 30

207603044

$2.11

5

Hex. Flange Elastic Nut M10

233201414

$1.58

6

FRONT BUMPER - Call your local BRP dealership

705003654

Unavailable

7

Hex. Screw M6 X 60

207066044

$0.67

8

LH FACIA SUPPORT - Call your local BRP dealership

705002925

Unavailable

9

LH LOWER FACIA SUPPORT - Call your local BRP dealership

705003037

Unavailable

10

RH FACIA SUPPORT - Call your local BRP dealership

705002926

Unavailable

11

RH LOWER FACIA SUPPORT - Call your local BRP dealership

705003039

Unavailable

12

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Torx Screw M6 X 16

250000755

$0.87

16

RH Footboard

705002487

$184.99

17

LH Footboard

705003633

$184.99

18

ENGINE COVER - Call your local BRP dealership

705003839

Unavailable

19

Hex. Flange Screw M6 X 12

210261250

$1.90

20

Engine Cover Support

705003646

$9.23

21

Engine Cover Support

705011461

$10.49

21a

ENGINE COVER SUPPORT - Call your local BRP dealership

705002121

Unavailable

21b

Oval Washer

705000321

$5.61

22

Hex. Flange Screw M6 X 12

210261250

$1.90

23

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

24

Not Available As Spare Parts

XXX

Unavailable

24a

Footrest

705003648

$43.99

24b

Not Available As Spare Parts

XXX

Unavailable

24c

Not Available As Spare Parts

XXX

Unavailable

24d

Not Available As Spare Parts

XXX

Unavailable

25

Hex. Flange Screw M6 X 25

250000787

$2.22

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Not Available As Spare Parts

XXX

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

29

Torx Screw M6 X 16

250000755

$0.87

30

LH Rear Body Panel Cap

705017923

$13.99
